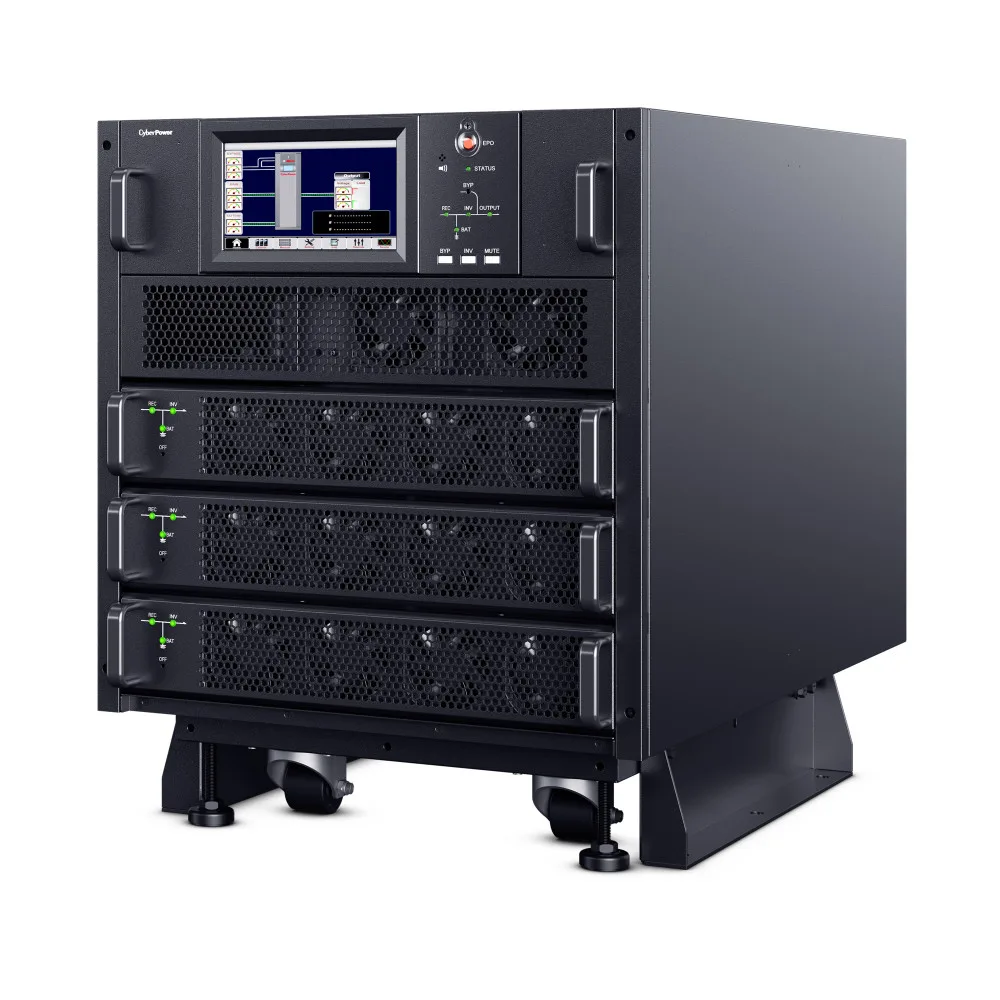

Tall 11U rack cabinet, matte dark finish, front vented panel, rear hardwire terminals

CyberPower

CyberPower SM020KAMFA 20000VA 20000W 3-Phase Modular Online UPS 11U

SKU CH-VYF5-QGE63 MPN SM020KAMFA

20 kVA double-conversion UPS with hot-swappable 2U modules for N+X redundancy in an 11U rack frame

  • International Version208/120V 220/127V
  • Input Voltage Range187V - 260VAC
  • Input Frequency40 - 70 Hz
  • VA Rating20000 VA
  • Watts20000 W
  • Output Voltage208/120V 220/127V
  • Double-conversion topology delivers pure sine-wave output
  • Unity power factor provides 20000 W real power from 20000 VA rating
  • Modular N+X redundancy keeps critical loads running during module failure
  • Hot-swappable 2U power modules scale from 10 kVA to 20 kVA in 11U rack space
  • PowerPanel Business software enables remote monitoring via RS232, RS485, USB and SNMP

Modular 3-Phase UPS Cabinet

The CyberPower SM020KAMFA is a 20000 VA and 20000 W double-conversion online UPS designed for three-phase environments. It supports configurable N+X redundancy and accepts 208/120V or 220/127V input and output. The 11U rackmount cabinet houses hot-swappable power modules for scalable capacity from 10 to 20 kW.

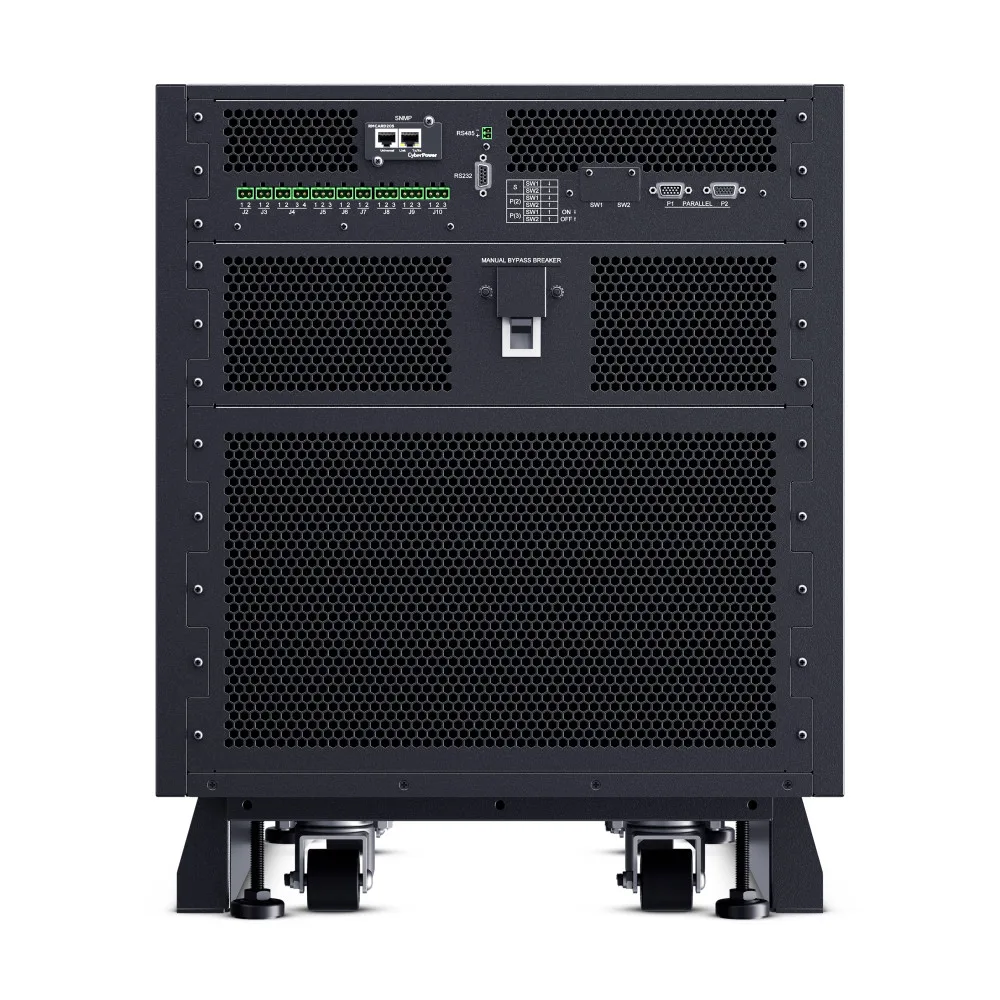

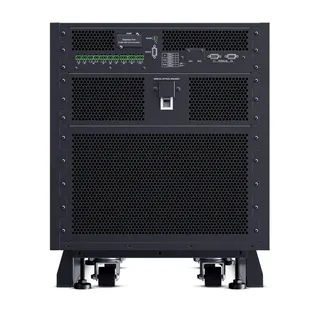

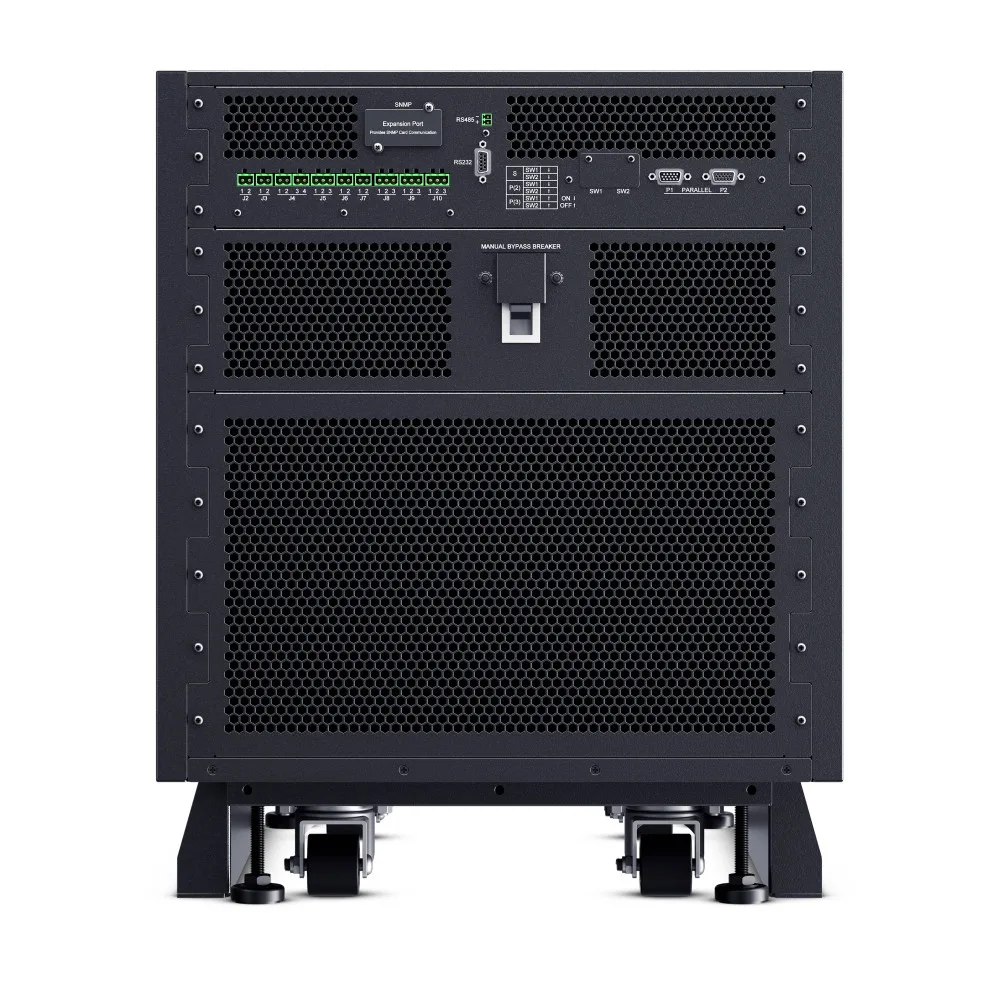

Hardwire Terminal Block Output

The unit provides a single hardwire terminal block for permanent electrical installation rather than plug-in outlets. This connection method suits data centres and industrial facilities where loads are wired directly to distribution panels. The output voltage is configurable between 208/120V and 220/127V to match local three-phase distribution.

Sustained Overload Behaviour

Under continuous load the UPS tolerates 110% for 10 minutes, 125% for 1 minute and 150% for 30 seconds before protection activates. Loads above 150% are limited to 200 milliseconds. The sine-wave output maintains a 1.0 power factor throughout these ranges, delivering full rated watts without derating during extended overload events.

Highlights

  • Double-conversion topology delivers pure sine-wave output
  • Unity power factor provides 20000 W real power from 20000 VA rating
  • Modular N+X redundancy keeps critical loads running during module failure
  • Hot-swappable 2U power modules scale from 10 kVA to 20 kVA in 11U rack space
  • PowerPanel Business software enables remote monitoring via RS232, RS485, USB and SNMP

Specifications

BrandCyberPower
ModelSM020KAMFA
International Version208/120V 220/127V
Input Voltage Range187V - 260VAC
Input Frequency40 - 70 Hz
VA Rating20000 VA
Watts20000 W
Output Voltage208/120V 220/127V
Output Frequency50/60 Hz (auto-sensing/configurable)
Outlets1
Outlet Type1 x Hardwire Terminal Block
Interface Port1 RS232
1 RS485
Management SoftwarePowerPanel Business
Rackmountable11U
ProtectionOverload Protection
110% Load for 10 min
125% Load for 1 min
150% Load for 30 sec
>150% Load for 200 ms
TemperatureOperating Temperature: 32 - 104 °F (0 - 40 °C)
Storage Temperature: -4 - 158 °F (-20 - 70 °C)
HumidityOperating Relative Humidity: 0 - 95 % (non-condensing)
Storage Relative Humidity: 0 - 95% (non-condensing)
Dimensions23.9" x 19.1" x 30.5"
Weight133.8 lbs.
Shipping weight91.97 kg
Package size1022 × 787 × 635 mm

Questions about this item

What does the 20000 VA / 20000 W rating mean when the UPS is installed in a rack?

The unit delivers 20000 VA apparent power and 20000 W real power simultaneously because its power factor is 1.0, so the full VA capacity is usable for actual load.

What interface ports are built in and what management limits do they impose?

It provides RS232 and RS485 serial ports plus USB, Modbus, SNMP and EPO connections; PowerPanel Business software manages monitoring and shutdown across the network.

How much rack height and depth does the 11U cabinet need for mounting?

The chassis occupies 11 rack units and measures 23.9 inches wide, 19.1 inches deep and 30.5 inches high, weighing 133.8 lbs for structural planning.
