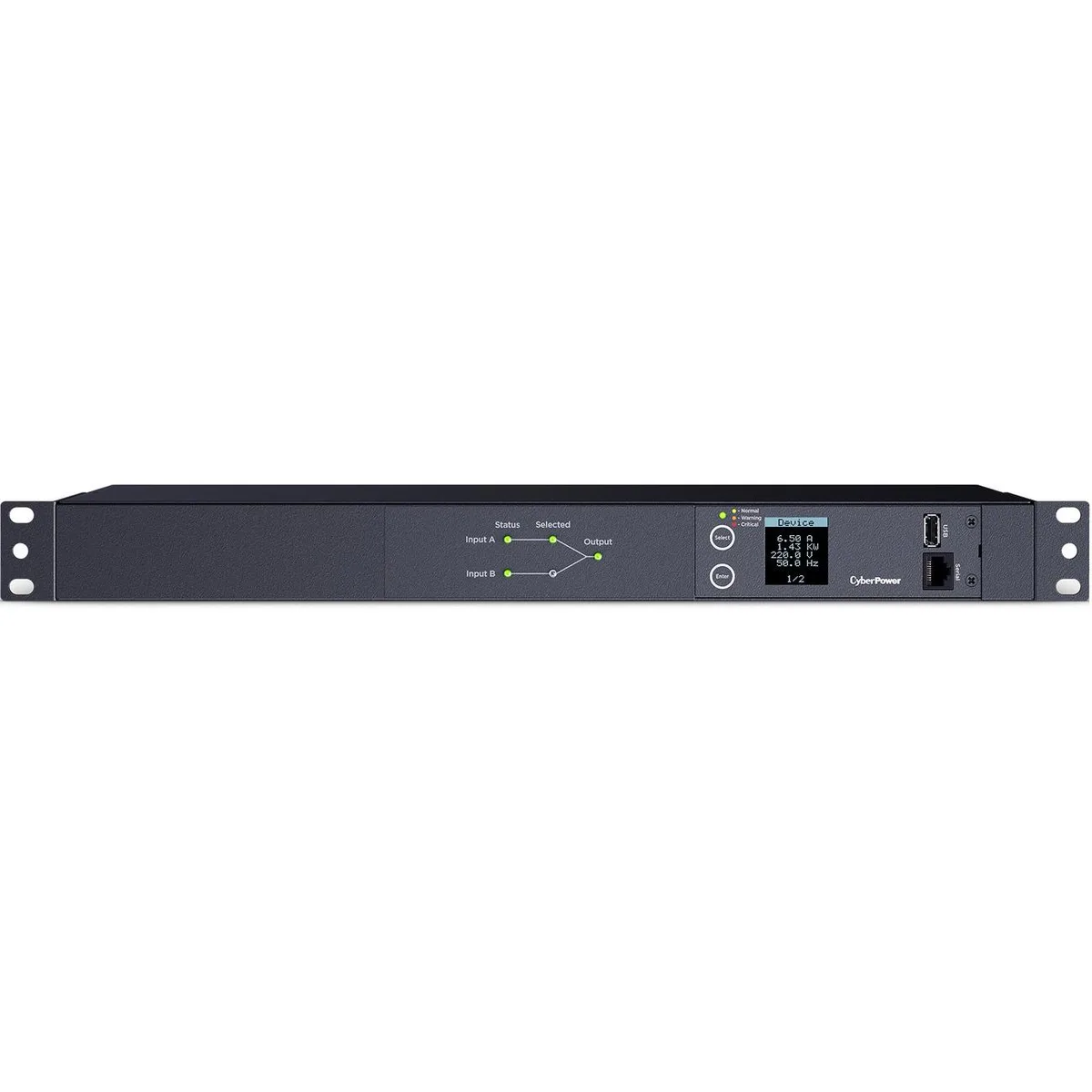

Black horizontal 1U rackmount PDU with twelve C13 outlets and two C14 inlets, digital load display, ten-foot cord

CyberPower

CyberPower PDU24004 Metered 1U PDU 12×C13 2×C14 10ft

SKU CH-W711-8XNXN MPN PDU24004

A metered 1U rack PDU with twelve C13 outlets, dual C14 inputs and a 10 ft cord for 200–240 V power distribution

  • TypeMetered
  • Rack Size1U
  • StyleHorizontal Rackmount
  • Front Panel LEDsPDU Status, Source Status, Load
  • CertificationsCE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
  • ROHSYes
  • Real-time load monitoring via front-panel LEDs
  • 12 IEC C13 outlets for dense equipment power
  • Dual IEC C14 inputs support redundant feeds
  • 1U horizontal rackmount fits standard cabinets
  • Circuit breaker protects against overloads

Metered 1U rack PDU

The CyberPower PDU24004 is a metered power distribution unit that fits a single 1U horizontal rack slot. It provides twelve IEC C13 outlets fed by two IEC C14 inlets with a 10 ft cord. A built-in digital display shows real-time load, PDU status and source status for local monitoring. The unit operates on 200–240 V input at 50/60 Hz.

Who this suits and who should look elsewhere

Server-room administrators who need local current readouts on a 1U strip will find the metered display and twelve C13 sockets a direct fit. Installations that require remote network monitoring, switched outlet control or a single-input design are not served by this model. Builders needing 208 V three-phase input or outlet counts beyond twelve should consider other form factors.

Deciding specification — input current rating

The UL-rated maximum input current is 12 A and the CE-rated maximum is 10 A. This single figure determines whether the PDU can support the connected equipment load on a 200–240 V supply. Exceeding the rated limit trips the internal circuit breaker, so total attached draw must stay within the applicable regional rating.

Highlights

  • Real-time load monitoring via front-panel LEDs
  • 12 IEC C13 outlets for dense equipment power
  • Dual IEC C14 inputs support redundant feeds
  • 1U horizontal rackmount fits standard cabinets
  • Circuit breaker protects against overloads

Specifications

BrandCyberPower
ModelPDU24004
TypeMetered
Rack Size1U
StyleHorizontal Rackmount
Front Panel LEDsPDU Status, Source Status, Load
CertificationsCE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368
ROHSYes
ConnectivityRJ45 (for Serial)
Package IncludesPDU24004
User's Manual
Cord Retention Tray
Mounting Brackets
Cable Ties
Screw Kit
Power Cord
Serial Cable
Input Voltage200 - 240V
Input Frequency50/60 Hz
Maximum Input Current12A (UL)
10A (CE)
Input Connector(s)IEC C14 x 2
Cord Length10 ft
Output VoltageDepends on Input
Output Connector(s)IEC C13 x 12
Overload ProtectionCircuit Breaker
Operating EnvironmentOperating Temperature (°F): 32 ~ 113
Operating Temperature (°C): 0 ~ 45
Operating Relative Humidity0 - 95%
Operating Elevation0-13,123 feet (0-4,000 meters)
Storage TemperatureStorage Temperature (°F): 5 ~ 131
Storage Temperature (°C): -15 ~ 55
Storage Relative Humidity0 - 95%
Storage Elevation0-49,213 feet (0-15,000 meters)
FeaturesReal-time Local Monitoring
Quick Transfer Time (Total < 10 ms)
Digital Real-time Load Display
Hot-swappable LCD Design
Firmware Upgrade via USB
Adjustable Mounting Brackets
IEC Receptacle Locking
Dual Inputs
Industrial-grade Metal Housing
User Configurable Color LCD
LED Status Indicator
User-upgradeable Firmware
Cord Retention Tray
Dimensions1.75" x 17.05" x 8.45"
Weight7.70 lbs.
Shipping weight5.72 kg
Package size550 × 398 × 124 mm

Questions about this item

How much heat does the PDU24004 add to a rack that runs at full 12 A load all day?

The unit operates between 0 and 45 °C and 0 to 95 % humidity, so it stays within spec as long as rack airflow keeps ambient temperature in that range.

Which power cords must I already have to connect servers to the twelve IEC C13 outlets?

You need twelve IEC C13-to-C14 cords (or C13-to-local-plug cords) matching your equipment inlets; the PDU only provides the C13 sockets.

Will the dual IEC C14 inlets work with my older 208 V single-feed UPS?

Each inlet accepts 200–240 V, so a single 208 V feed can power one inlet; the second inlet remains available for a redundant source if you add one later.
