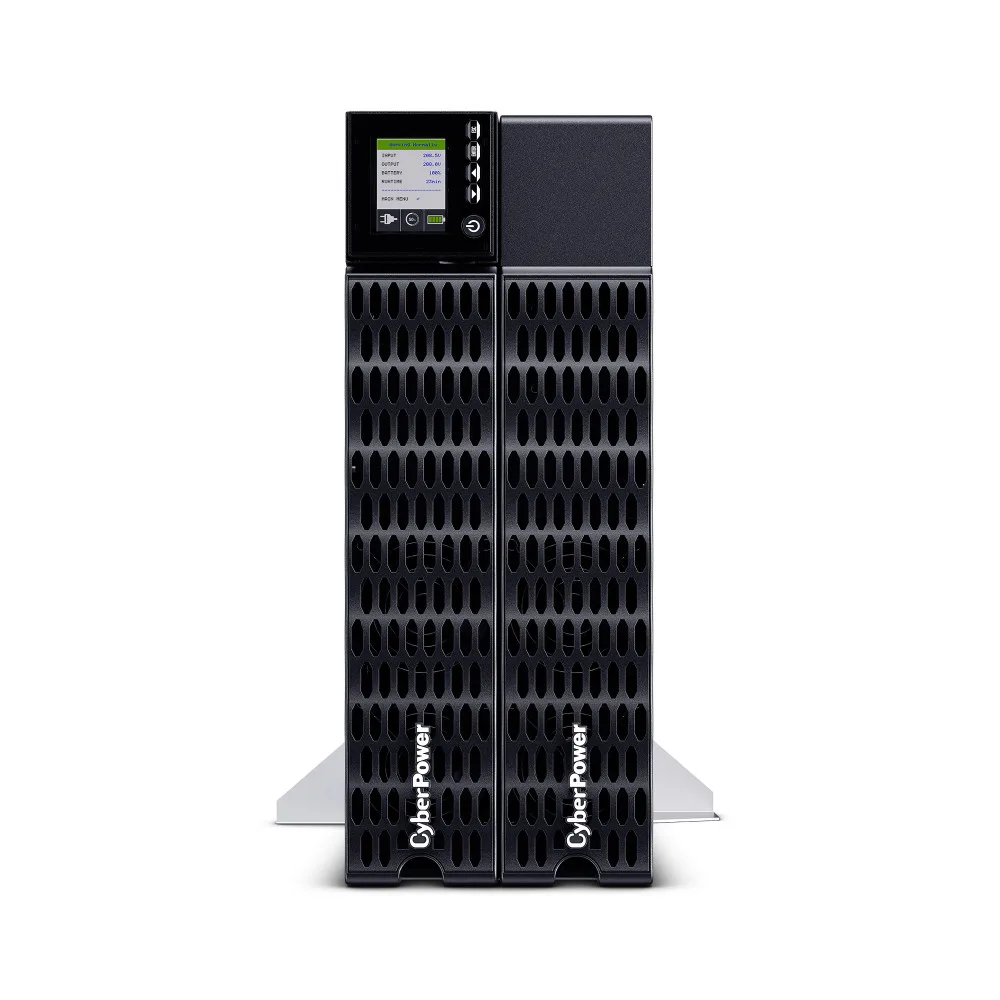

Tall black rack tower UPS with LCD display and six rear outlets

CyberPower

CyberPower OL8KRTHD UPS 8000VA 8000W Hardwire Rack Tower 6 Outlets Sine Wave LCD

SKU CH-64VZ-N3A9K MPN OL8KRTHD

8000 VA double-conversion UPS delivers sine-wave power through six locking outlets and a hardwire terminal, with 3.8 minutes runtime at full load and 11 minutes at half load

  • International Version120V
  • Input Voltage Range120-139 VAC for 0-25% Load 140-159 VAC for 0-50% Load 160-17
  • Input Frequency40 - 70 Hz
  • VA Rating8000 VA
  • Watts8000 Watts
  • Outlets6
  • 8000 VA and 8000 W for demanding server loads
  • Pure sine-wave output protects sensitive electronics from distortion
  • 8 min runtime at full load, 11 min at half load
  • Six locking outlets plus hardwire terminal for flexible wiring
  • 4-hour recharge to 90 % keeps protection ready

Capacity and topology

The CyberPower OL8KRTHD is a double-conversion online UPS rated at 8000 VA and 8000 W. It delivers continuous sine-wave power to connected equipment through six outlets and a hardwire terminal block.

Suitable environments and limits

This unit suits server rooms and network closets that require rack or tower mounting and 120 V input with a wide voltage window. Sites needing longer runtime at full load or USB and network management cards should look at other models.

Runtime and expansion

At half load the internal batteries provide 11 minutes of backup; at full load the figure is 3.8 minutes. Recharge to 90 percent takes four hours and the chassis accepts two RB1290X8 replacement packs for extended runtime configurations.

Highlights

  • 8000 VA and 8000 W for demanding server loads
  • Pure sine-wave output protects sensitive electronics from distortion
  • 8 min runtime at full load, 11 min at half load
  • Six locking outlets plus hardwire terminal for flexible wiring
  • 4-hour recharge to 90 % keeps protection ready

Specifications

BrandCyberPower
SeriesSmart App Online UPS
ModelOL8KRTHD
International Version120V
Input Voltage Range120-139 VAC for 0-25% Load
140-159 VAC for 0-50% Load
160-179 VAC for 0-75% Load
180-280 VAC for 0-100% Load
Input Frequency40 - 70 Hz
VA Rating8000 VA
Watts8000 Watts
Outlets6

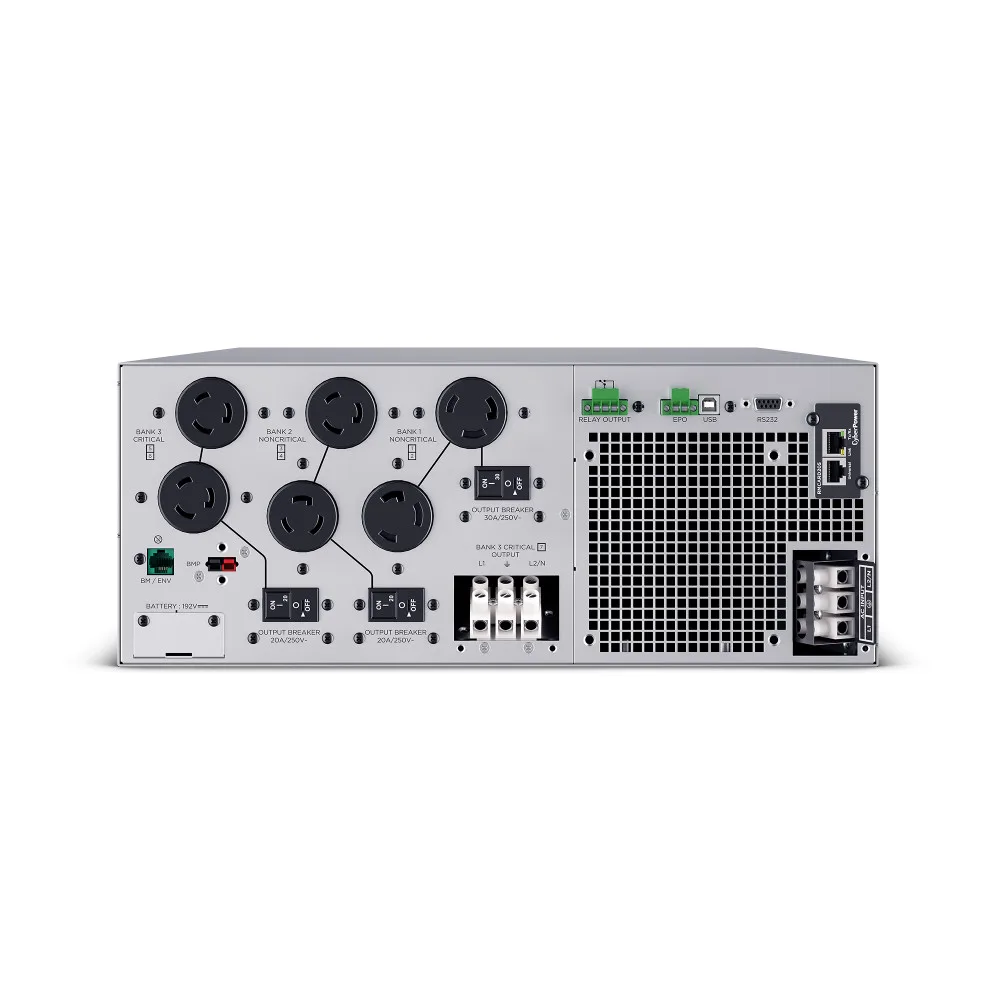

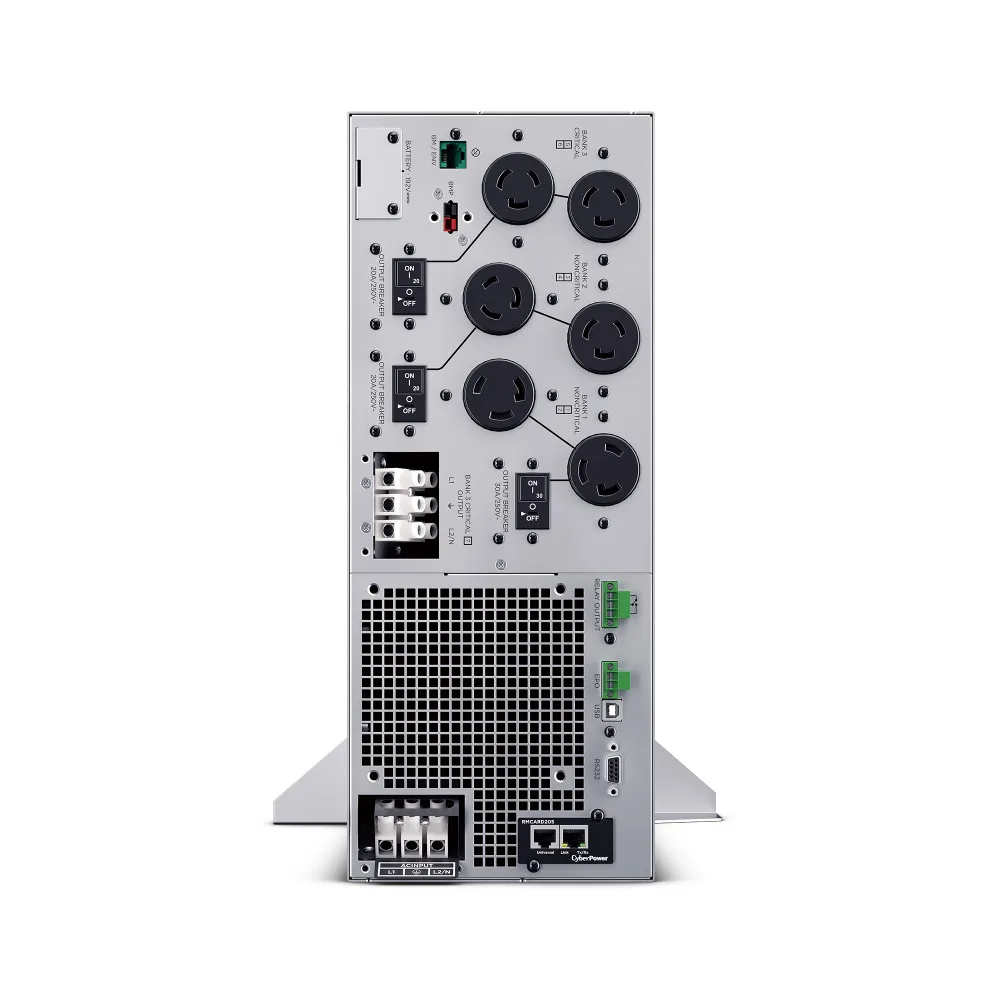

Outlet Type4 x NEMA L6-20R
2 x NEMA L6-30R
1 x Hardwire Terminal Block
Battery TypeSealed Lead Acid
Battery Run TimeRuntime at Full Load: 3.8 min
Runtime at Half Load: 11 min
Battery Recharge Time4 Hours (0% to 90% charged)
Battery Replaceable(2) RB1290X8
AlarmsBattery Mode
Low Battery
Overload
UPS Fault
Interface PortSerial
RackmountableYes
Surge Energy Rating2430 Joules
ProtectionUPS Output Cut off Immediately
Input Fuse / Circuit Breaker Protection
Dimensions17.05" x 6.8" x 28.35"
Weight157 lbs.
Shipping weight90.72 kg
Package size889 × 599 × 452 mm

Questions about this item

What input voltage must my building supply for the OL8KRTHD to run at full 100 % load?

The UPS accepts 180-280 VAC for 0-100 % load; below 180 VAC the allowable load drops in steps down to 25 % at 120-139 VAC.

Can I keep using my existing NEMA L6-20P and L6-30P server cords with the six outlets on this unit?

Yes, the rear panel provides four NEMA L6-20R and two NEMA L6-30R receptacles that match those plugs directly.

How do I confirm the UPS is delivering clean sine-wave power after installation?

The front LCD shows real-time output voltage and frequency; a steady 120 V reading with the "Online" icon lit confirms correct operation.
