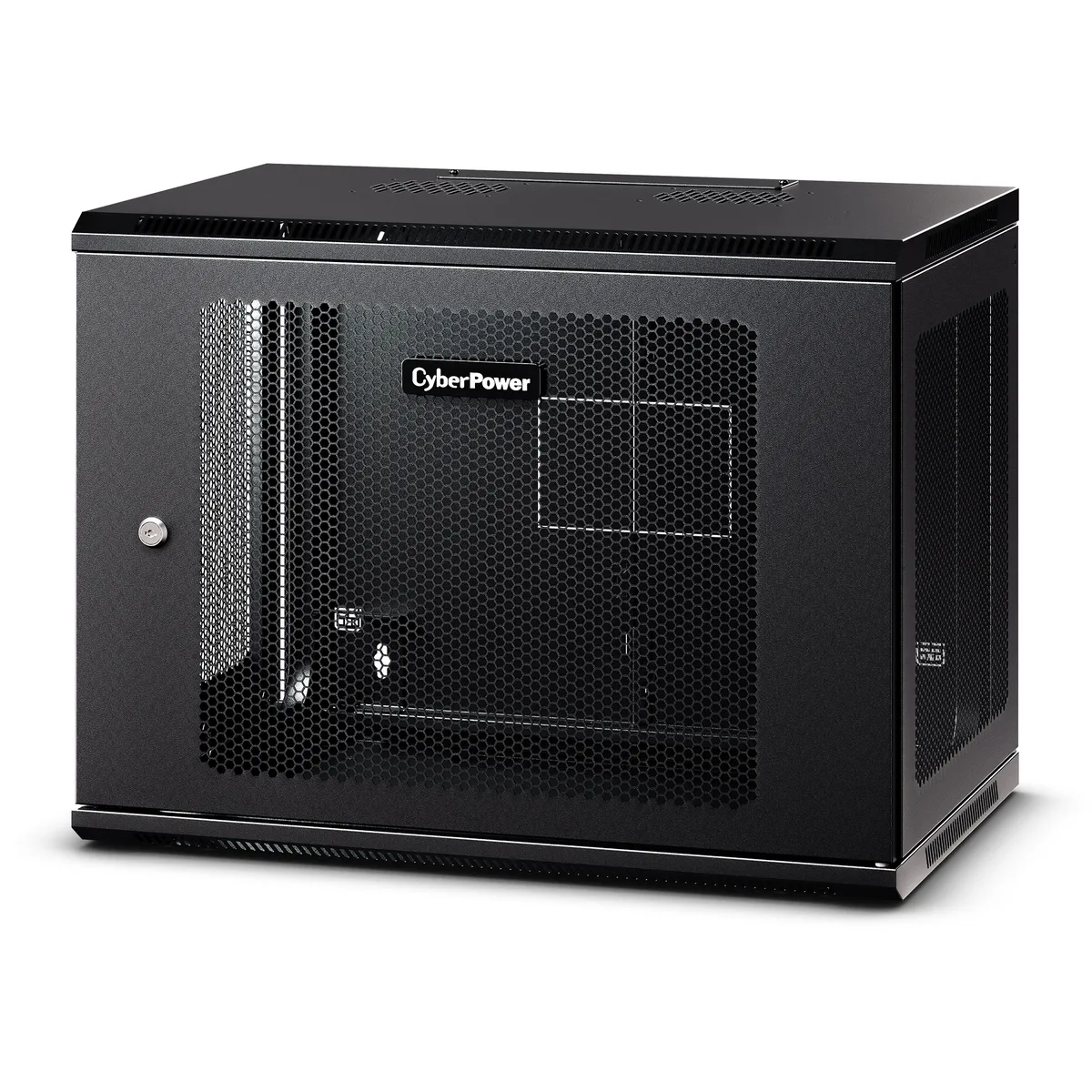

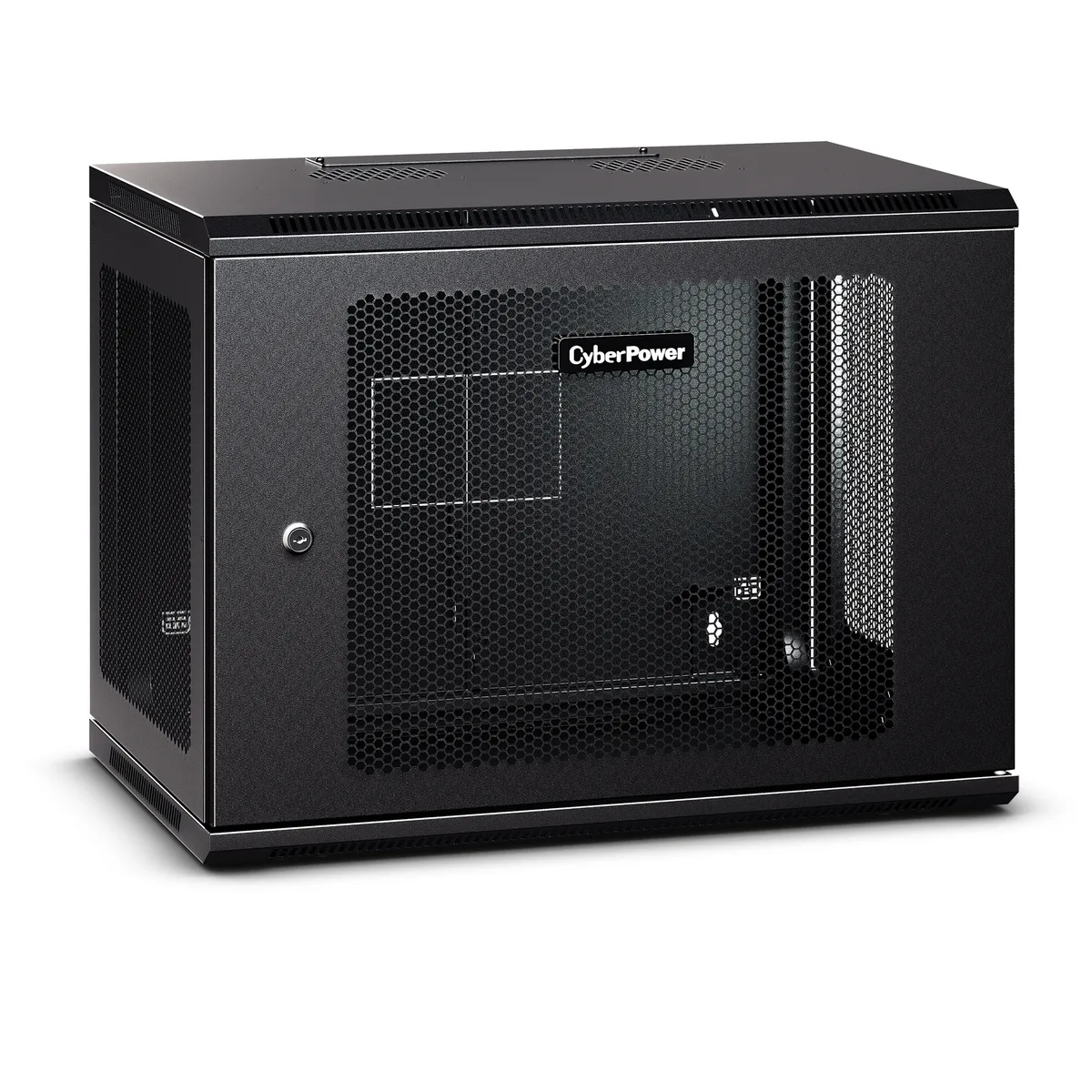

Black 9U wall-mount server rack with hex perforated metal door and square mounting holes

CyberPower

CyberPower CR9U61003 9U Wall Mount Server Rack

SKU CH-6F99-ZZJAD MPN CR9U61003

A 9U wall-mount metal enclosure with a hex perforated door, adjustable 47–516 mm depth, square and #12-24 holes, top and bottom cable access, lockable removable panels, and 60 kg load capacity

  • TypeWall Mount Enclosures
  • ColorBlack
  • SpecificationsOutput USB Charge Port: No Physical Cable Access Opening Dim
  • 9U rack height fits compact server deployments
  • 3 lbs stationary load capacity supports heavy equipment
  • Adjustable 1.9–20.3 in mounting depth suits varied hardware
  • Hex perforated metal door enables airflow and security
  • Lockable keyed-alike doors and side panels protect access

9U Wall Mount Enclosure

The CyberPower CR9U61003 is a 9U wall mount enclosure designed for network equipment and servers in space-constrained environments. It suits installers who need a secure, lockable cabinet that attaches directly to a wall rather than occupying floor space.

Square and #12-24 Mounting Holes with Adjustable

The metal chassis provides square and #12-24 mounting holes with a factory default depth of 436.9 mm and an adjustable range from 47 mm to 516 mm. Top and bottom cable openings measure 249 mm by 56 mm, while hex perforated doors and removable side panels allow airflow and easy access. A PE grounding point and keyed-alike locks complete the build.

Replaces Floor-Standing Racks for Shallow

This enclosure replaces a small floor-standing rack when only a few rack units are required and wall mounting is practical. The jump is worth it when the 60 kg stationary load capacity covers the installed gear and the 599 mm square footprint fits the available wall area. Builds needing deeper equipment or higher density should consider larger cabinets.

Highlights

  • 9U rack height fits compact server deployments
  • 3 lbs stationary load capacity supports heavy equipment
  • Adjustable 1.9–20.3 in mounting depth suits varied hardware
  • Hex perforated metal door enables airflow and security
  • Lockable keyed-alike doors and side panels protect access

Specifications

BrandCyberPower
ModelCR9U61003
TypeWall Mount Enclosures
ColorBlack
SpecificationsOutput
USB Charge Port: No
Physical
Cable Access Opening Dimensions: 9.8 x 2.2 in (249 x 56 m)
Door Type: Hex Perforated Metal Door
Factory Default Mounting Depth: 17.2 ft (436.9 mm)
Material of Construction: Metal
Max. Mounting Depth (in): 20.3
Max. Mounting Depth (mm): 516
Min. Mounting Depth (in): 1.9
Min. Mounting Depth (mm): 47
Rack Angle Mounting Hole Type: Square Mounting Holes, #12-24 Mounting Holes
Rack Height: 9U
Weight Capacity - stationary load (kg): 60
Weight Capacity - stationary load (lbs): 132.3
Dimensions
Physical Dimensions - (WxHxD) (cm): 59.94 x 45.47 x 59.94 (cm)
Shipping weight18.60 kg
Package size667 × 667 × 572 mm

Questions about this item

How much usable depth does the 9U rack provide when the mounting rails are set to the factory default position?

The factory default mounting depth is 17.2 in (436.9 mm) and the rails can be adjusted from 1.9 in (47 mm) to 20.3 in (516 mm) to suit different equipment lengths.

What wall-fixing hardware is required for a 15.69 kg (34.6 lb) steel enclosure that is 599 mm wide, 455 mm high and 599 mm deep?

The cabinet weighs 15.69 kg (34.6 lb) and measures 599 x 455 x 599 mm; use lag bolts or heavy-duty anchors rated for at least 60 kg (132.3 lb) into studs or masonry.

Which rail hole pattern does the CR9U61003 use and how are rack units marked?

The vertical rails have both square holes and #12-24 threaded holes, and each rack unit is numbered for quick alignment.
