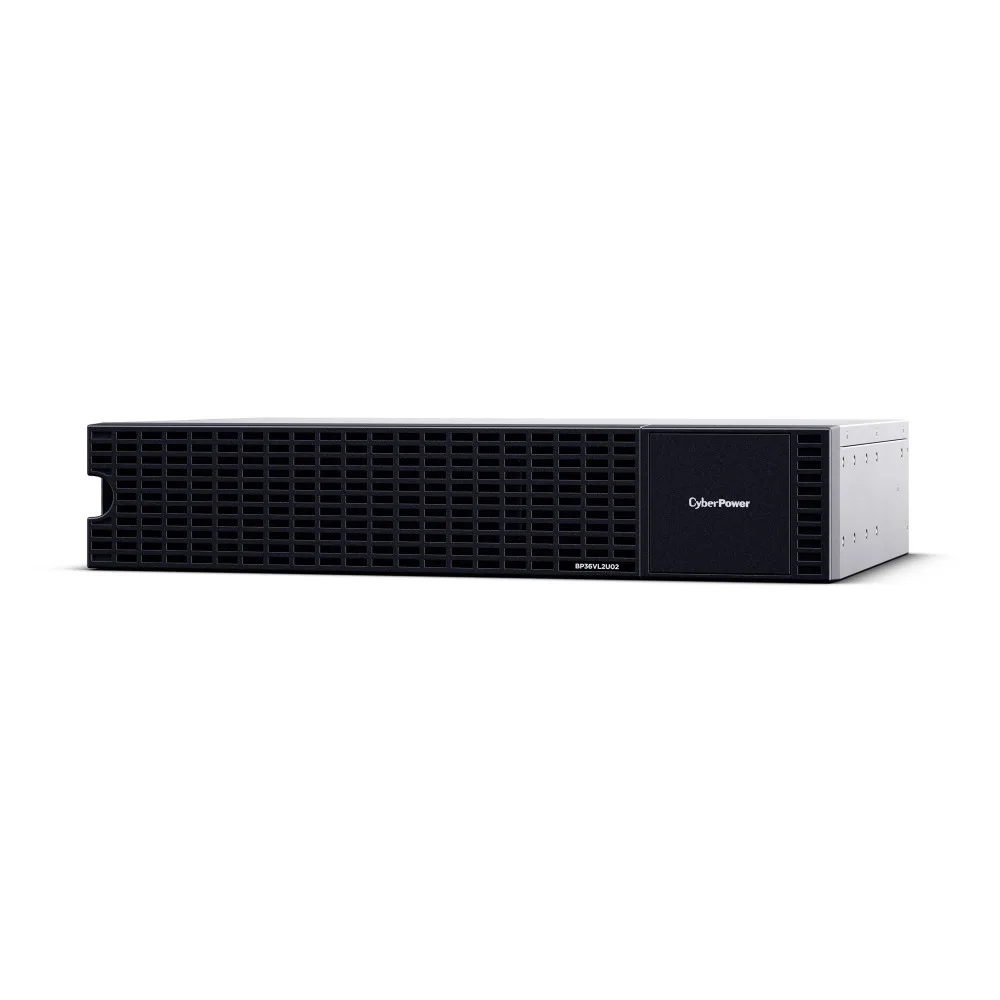

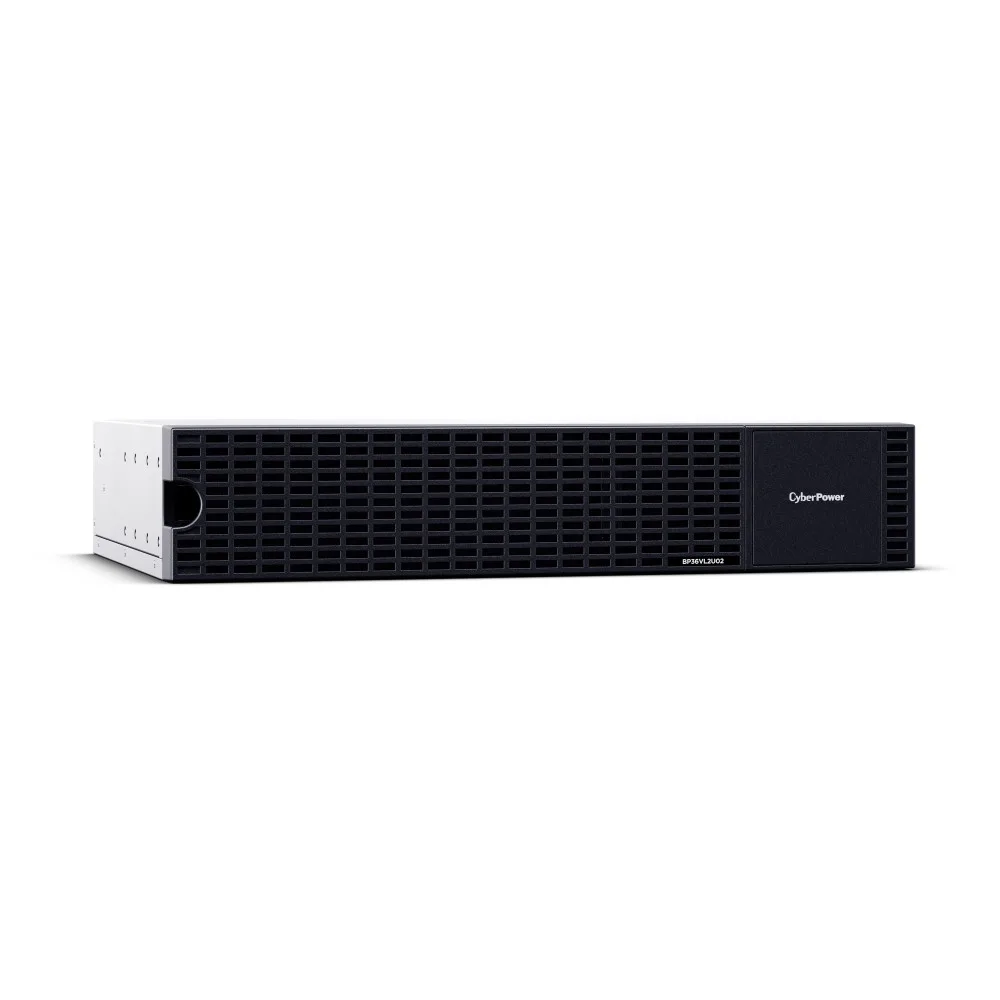

Silver metal rack-mount battery module, 2U high, front panel with handle and vents

CyberPower

CyberPower BP36VL2U02 36 VDC 60 A UPS replacement battery

SKU CH-ZDET-A6X5N MPN BP36VL2U02

A 36 VDC, 60 A extended battery module with six 12 V 7 Ah sealed lead-acid cells, hot-swappable in a 2U rack/tower chassis for OL1K5RM and OL2K2RM UPS units

  • TypeBattery
  • CompatibilityModels: OL1K5RM, OL2K2RM UPS Models: OL1K5RM OL2K2RM
  • SpecificationsGeneral Amperage: 60 A DC Voltage: 36 VDC Battery Battery Qu
  • Dimensions3.41'' x 17.05'' x 14.76''
  • Weight47.62 lbs.
  • Extends runtime for OL1K5RM and OL2K2RM UPS units
  • 36 VDC 60 A output delivers consistent backup power
  • Six 12 V 7 Ah sealed lead-acid cells inside
  • Hot-swappable design allows replacement without powering down
  • Daisy-chain expansion ready for additional runtime capacity

36 VDC 60 A UPS battery module

This extended battery module supplies 36 VDC at 60 A for compatible CyberPower UPS units. It contains six sealed lead-acid batteries rated at 12 V / 7 Ah each. A built-in charger and smart battery management handle recharging automatically. The module fits a 2U rack or tower form factor and supports hot-swappable replacement.

Suits OL1K5RM and OL2K2RM UPS owners

The module connects directly to OL1K5RM and OL2K2RM models to extend runtime. Daisy-chain expansion is supported for additional capacity. Buyers with other UPS models should verify compatibility before purchase. It is not a standalone power source and requires a supported host unit.

Recharge reaches 90 percent in 4 hours

Typical recharge from empty to 90 percent takes four hours. The sealed lead-acid chemistry and integrated management maintain readiness between outages. This recharge window determines how quickly backup time is restored after a discharge event.

Highlights

  • Extends runtime for OL1K5RM and OL2K2RM UPS units
  • 36 VDC 60 A output delivers consistent backup power
  • Six 12 V 7 Ah sealed lead-acid cells inside
  • Hot-swappable design allows replacement without powering down
  • Daisy-chain expansion ready for additional runtime capacity

Specifications

BrandCyberPower
ModelBP36VL2U02
TypeBattery
CompatibilityModels:
OL1K5RM, OL2K2RM
UPS Models:
OL1K5RM
OL2K2RM
SpecificationsGeneral
Amperage: 60 A
DC Voltage: 36 VDC
Battery
Battery Quantity: 6
Battery Size: 12 V / 7 Ah
Battery Type: Sealed Lead-Acid Battery
Built-in Charger: Yes
Expansion Ready (Daisy-Chain): Yes
Replacement Battery Cartridge: RB1270X3C
Replacement Battery Cartridge Quantity: 2
Typical Recharge Time: 4 Hours (0% to 90% charged)
User Replaceable Battery: Yes
Input
Circuit Breaker: 10 A
Input Plug Type: NEMA 5-15P
Input Voltage Range: 100 VAC - 125 VAC
Nominal Input Voltage: 120 VAC
Physical
Color: Silver
Material of Construction: Metal
Mounting Hardware: Yes
Rack Height: 2U
Dimensions3.41'' x 17.05'' x 14.76''
Weight47.62 lbs.
Shipping weight25.40 kg
Package size559 × 483 × 229 mm

Questions about this item

Which CyberPower UPS models accept the BP36VL2U02 extended battery module?

The module is compatible with the OL1K5RM and OL2K2RM UPS models.

Can the 36 VDC 60 A module be daisy-chained with an existing battery pack?

Yes, the unit is expansion ready and supports daisy-chaining with additional modules.

How do I confirm the module is charging correctly after installation?

The typical recharge time from 0 to 90 percent is four hours; the UPS display will show charging progress and battery status.
