CRU DataPort 25 SATA carrier for 2.5 inch drives in 3.5 inch bay

CRU

CRU 8511-5009-9500 DataPort 25 SATA carrier

SKU CH-MTKM-T6JVP MPN 8511-5009-9500

A removable SATA carrier that holds up to two 2.5-inch drives in a standard 3.5-inch bay, rated for 30,000 insertions

  • Mobile Rack Drives SupportMulti 2.5" Drives to 3.5" Bay
  • Mobile Rack InterfaceSATA I/II
  • SpecificationsProduct name: DataPort 25 SATA 6G Host (I/O) Ports: (1) SATA
  • FeaturesHumidity Range Operating: 0 - 95% Max Operating Temperature:
  • Fits standard 3.5" bay for 2.5" SATA drives
  • Carrier rated for 30000 insertions ensures long service life
  • Lock secures drive and acts as power switch
  • Rugged aluminium build protects data in transit
  • LEDs show power and drive activity at a glance

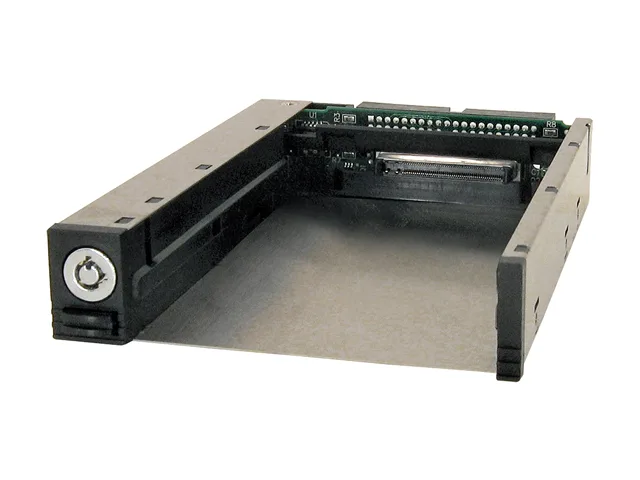

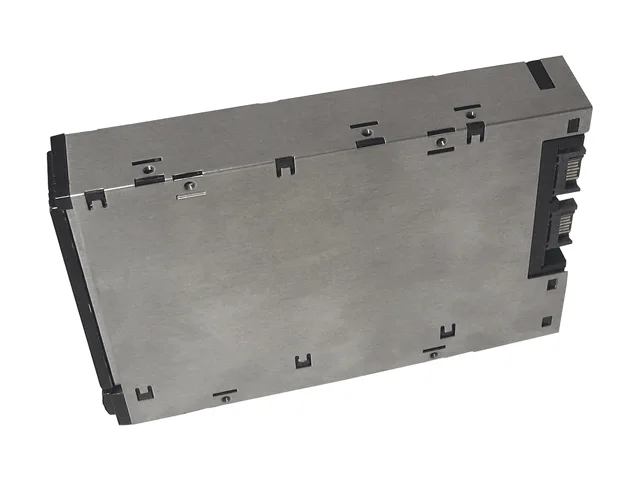

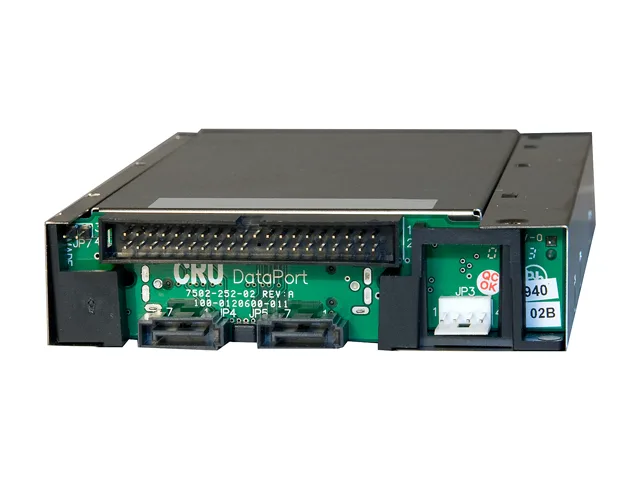

CRU DataPort 25 Carrier for 2.5" Drives

This carrier adapts a 2.5" SATA drive into a 3.5" bay slot. It supports SATA I and II speeds up to 6 Gbps. The aluminium shell protects the drive during transport and aids heat dissipation. A key lock secures the carrier and acts as the power switch.

Suits IT teams swapping drives daily

Technicians who need tool-free, hot-swap access to bare 2.5" SATA HDDs or SSDs will benefit. The 30,000 insertion rating handles frequent changes. Buyers who want a complete tray-and-frame kit should look elsewhere because this SKU includes the carrier only.

Rated for 30,000 carrier insertions

The mechanism is tested to survive thirty thousand insert and eject cycles. This figure determines whether the carrier will last through intensive rotation schedules. Operating temperature spans 32 °F to 140 °F with humidity up to 95 %.

Highlights

  • Fits standard 3.5" bay for 2.5" SATA drives
  • Carrier rated for 30000 insertions ensures long service life
  • Lock secures drive and acts as power switch
  • Rugged aluminium build protects data in transit
  • LEDs show power and drive activity at a glance

Specifications

BrandCRU
Model8511-5009-9500
Mobile Rack Drives SupportMulti 2.5" Drives to 3.5" Bay
Mobile Rack InterfaceSATA I/II
SpecificationsProduct name: DataPort 25 SATA 6G
Host (I/O) Ports: (1) SATA: up to 6 Gbps
Drive Types Supported:
SATA 2.5" drives
SATA SSD (solid state drives)
SATA Speed: 6G
Insertion Rating: up to 30,000 carrier insertions
Number of bays: 2
Number of LEDs: 2
Description of LEDs: Power, drive activity
Construction material(s): Rugged all-metal construction
Dimensions: 6.10" x 4.02" x 1.02" (155mm x 102mm x 26mm)
Weight: 0.90 lbs. (0.41 kg)
Compliancy: FCC, CE, RoHS
FeaturesHumidity Range Operating: 0 - 95%
Max Operating Temperature: 140 °F
Min Operating Temperature: 32 °F
Connector Type: RJ-45 * 1
Type: 100Base-TX
Connector Type: Type A * 2
Type: USB
Miscellaneous
Compliant Standards: CSA C22.2 No. 950 , EN 60950 , EN55022 , EN55024 , FCC Part 15 B , IEC950 , UL 1950
Networking Connectivity Technology: Wired
Data Link Protocol: Ethernet , Fast Ethernet , USB
Data Transfer Rate: 12 Mbps
Form Factor: External
Network Transport Protocol: TCP/IP
Ports Qty: 2
Status Indicators: Port status
Type: Terminal server
Power Device
Frequency Required: 50/60 Hz
Nomi
Shipping weight0.27 kg
Package size165 × 114 × 38 mm

Questions about this item

Does my chassis need a 3.5" floppy bay to use this 8511-5009-9500 carrier?

Yes, the DataPort 25 carrier is designed to slide into a standard 3.5" floppy drive bay on the receiving frame.

Will my 3 Gbps SATA drives work at full speed inside this 6 Gbps carrier?

The carrier supports 6 Gbps SATA and is backwards compatible with 3 Gbps hosts and drives, so older drives will operate at their rated 3 Gbps speed.

How can I confirm the carrier is seated and the drive is active after insertion?

The carrier has a lock that doubles as a power switch plus power and drive activity LEDs that show status at a glance.
