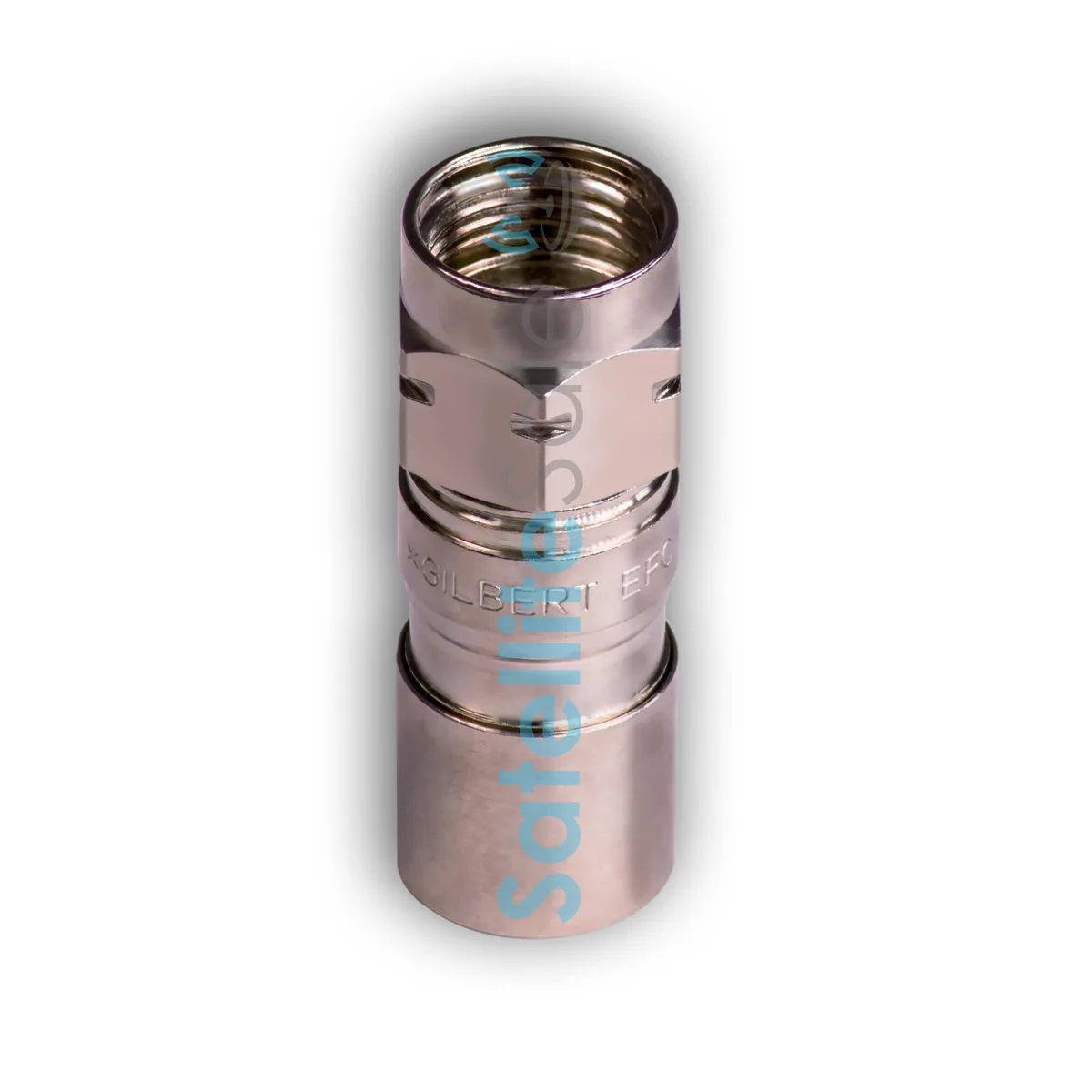

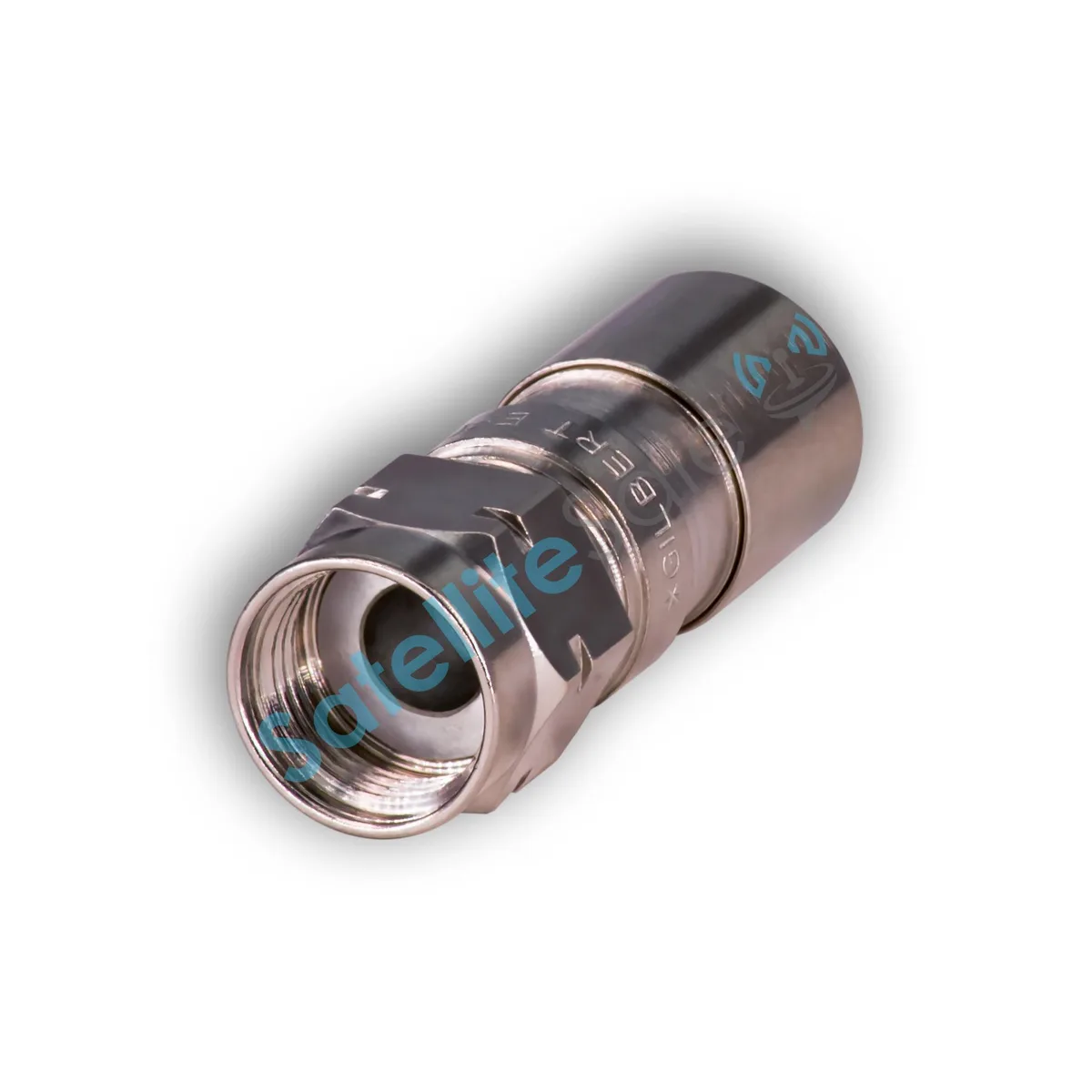

100 silver metal F-male compression connectors with hex nuts

Corning

Corning EFC F Male RG6 Compression Connectors 100-Pack

SKU CH-4BQY-BQ5F0

100 compression F-male connectors fit every Series 6 cable type, maintain signal integrity with proprietary grounding even when not fully tightened.

  • TypeCable Connectors
  • FeaturesUniversal
  • Maintains signal integrity even with loose coupling nut thanks to proprietary grounding technology
  • Universal fit for single-braid, tri-shield and quad-shield Series 6 cables
  • All-metal construction with no external plastics to degrade under UV exposure
  • Corrosion-resistant design rated for indoor and outdoor use from -40 °C to 70 °C
  • Compression connectors deliver up to 3 GHz bandwidth with -30 dB return loss

Universal RG6 F-Male Connectors

The Corning EFC compression connectors are F-type male plugs designed for Series 6 coaxial cable. They suit installers working on indoor or outdoor RF distribution such as cable TV, satellite or antenna runs. The 100-piece pack supports volume projects or service-van stock.

Compression Install With Proprietary Grounding

A compression tool is required; the connectors accept single-braid, tri-shield and quad-shield constructions across a 60 % to quad braid coverage range. Corning’s continuity technology maintains shielding and signal throughput even if the hex coupling nut is not fully tightened, reducing the common fault of loose nuts causing ingress. All-metal bodies avoid the UV degradation seen on plastic-sheathed alternatives.

3 GHz Bandwidth With 80 dB Shielding

The interface is rated from 0 GHz to 3 GHz with a typical return loss of 30 dB and shielding effectiveness of 80 dB on 60 % braid cable. Operation spans -40 °C to 70 °C, so the same part serves head-end, drop and customer-premise locations without derating. RoHS compliance confirms the absence of restricted substances.

Highlights

  • Maintains signal integrity even with loose coupling nut thanks to proprietary grounding technology
  • Universal fit for single-braid, tri-shield and quad-shield Series 6 cables
  • All-metal construction with no external plastics to degrade under UV exposure
  • Corrosion-resistant design rated for indoor and outdoor use from -40 °C to 70 °C
  • Compression connectors deliver up to 3 GHz bandwidth with -30 dB return loss

Specifications

BrandCorning Optical Communications
TypeCable Connectors
FeaturesUniversal

Questions about this item

How can I confirm the EFC compression connectors are performing correctly after installation?

Check for a solid mechanical seat on the Series 6 cable and verify signal quality with a meter; the design maintains robust throughput and shielding even if the hex nut is not fully tightened, with return loss rated at -30 dB and shielding effectiveness at -80 dB on 60% braid cables.

What comes in the 100-pack and what additional items are required?

The pack contains one hundred Corning EFC F Male compression connectors; you will need Series 6 coaxial cable and a compatible compression tool, which are not included.

Which version should I choose for single-braid, tri-shield and quad-shield Series 6 cables?

The universal GF-EFC-6 design fits all Series 6 constructions from 60% braid through quad-shield, so a single version covers every cable type listed.
