Black 80mm square case fan with 4-pin PWM connector

Corn Electronics

Corn Electronics 7000rpm 80mm 4Pin PWM case fan

SKU CH-PYKV-QF27E MPN 7000rpm

80 mm case fan with double ball bearing and 4-pin PWM speed control up to 7000 rpm

  • TypeCase Fan
  • Fan Size80mm
  • ColorBlack
  • LEDNon-LED

Model 7000rpm

  • Double ball bearing reduces wear for longer service life
  • 7000 rpm maximum speed delivers strong airflow when needed
  • 4-pin PWM control adjusts speed automatically with system load
  • 80 mm by 38 mm frame fits standard mounting points
  • 12 V DC power with 0.5 A typical draw keeps energy use low

Product Identity

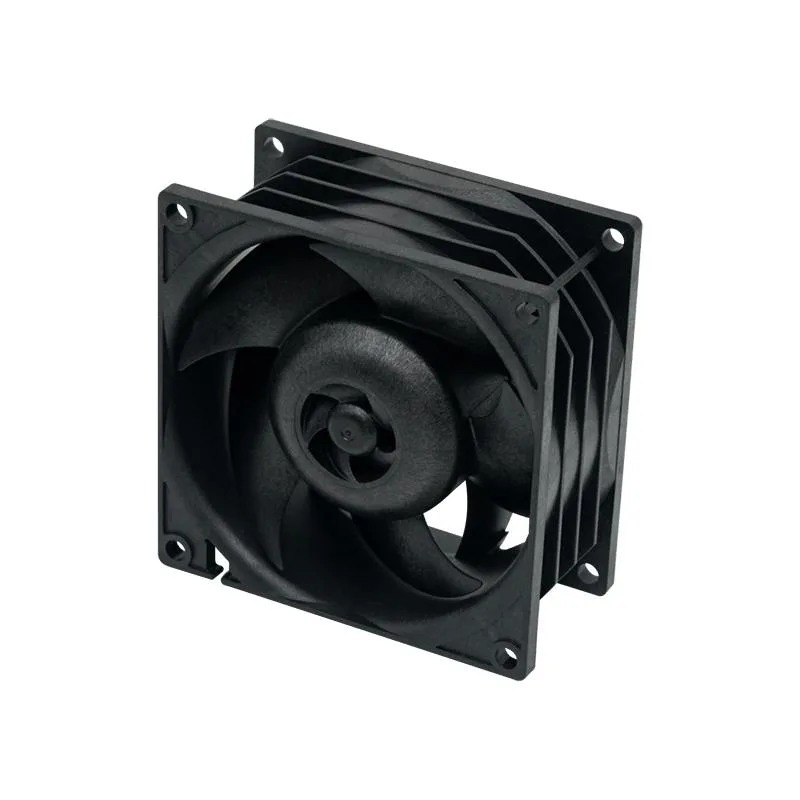

The Corn Electronics S8038-7K is an 80 mm case fan that uses a four-pin PWM connector and runs on 12 V DC. It spins at up to 7000 rpm and weighs 151 g. Double ball bearings support the motor shaft. The frame is black and carries no LED lighting.

Suitability

This fan fits cases and coolers that accept an 80 mm by 38 mm mounting pattern and a four-pin header. It suits users who want PWM speed control and a double ball bearing design. Buyers who need a larger frame size or a different voltage should look elsewhere.

Deciding Specification

The maximum speed of 7000 rpm is the figure that determines whether this fan delivers the airflow you require. Match it against the thermal target of your build before ordering.

Highlights

  • Double ball bearing reduces wear for longer service life
  • 7000 rpm maximum speed delivers strong airflow when needed
  • 4-pin PWM control adjusts speed automatically with system load
  • 80 mm by 38 mm frame fits standard mounting points
  • 12 V DC power with 0.5 A typical draw keeps energy use low

Specifications

TypeCase Fan
Fan Size80mm
ColorBlack
LEDNon-LED

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the 7000rpm 80mm fan run during continuous operation?

At maximum speed the 80mm fan spins at 7000rpm using double ball bearings; power draw is 0.5A typical and 1.3A peak on 12V, so heat output scales with the load you apply.

What connector and voltage does the 4Pin PWM 80mm fan require from my motherboard?

It needs a standard 4-pin PWM header supplying 12V DC; the board must provide up to 1.3A for full-speed operation.

Will the 80x80x38mm S8038-7K fit the mounting holes on my older 80mm chassis?

Yes — the frame is exactly 80mm square and 38mm thick, matching the legacy 80mm screw pattern used on older cases.
