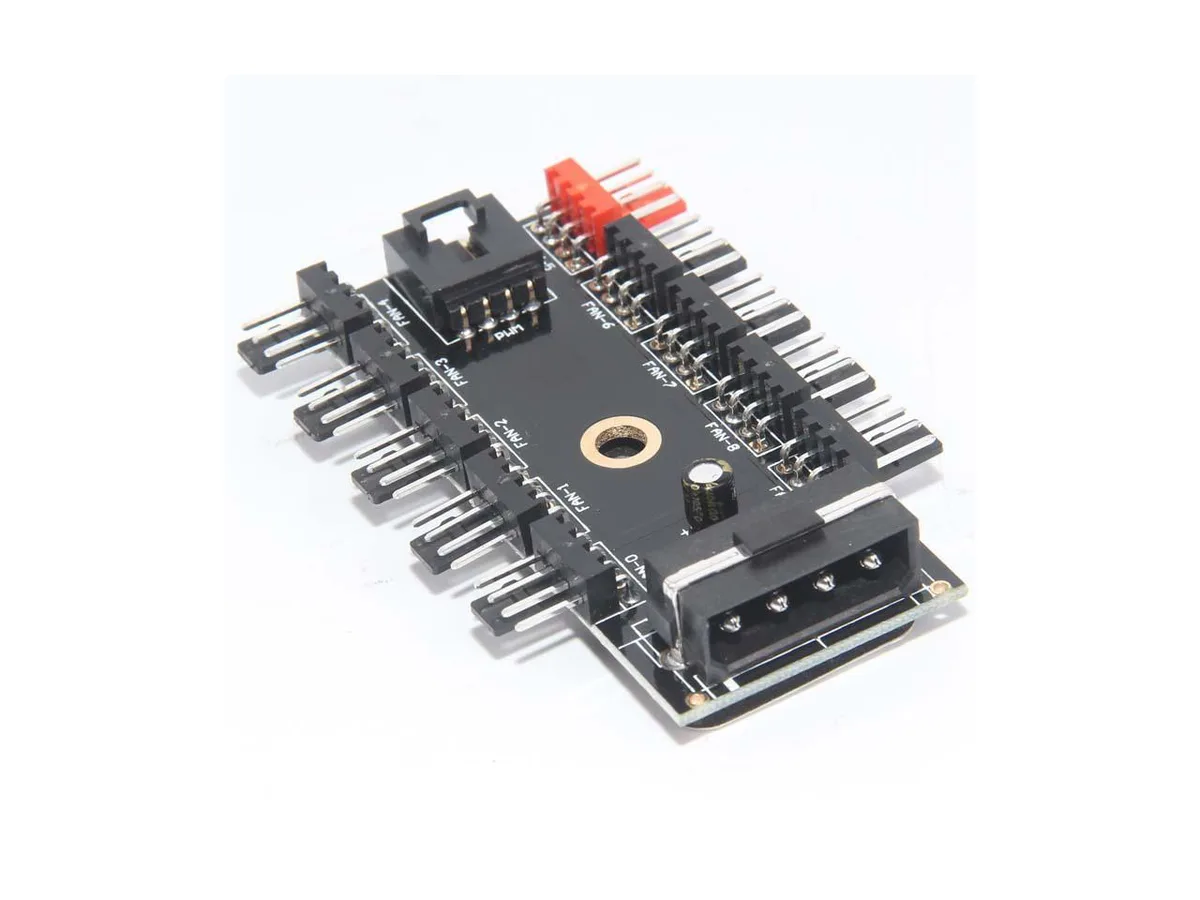

Black rectangular PCB with ten 4-pin fan headers and a 60 cm PWM cable

Corn Electronics

Corn Electronics 10 Port PWM 4-pin Fan Hub Splitter 60 cm cable

SKU CH-6HXK-NKSGB

Connects up to ten PWM or DC fans to one motherboard header using a 60 cm cable and Molex power

  • Expands one PWM header to ten fans
  • Molex power delivers stable current to nine channels
  • 60 cm cable reaches across full-size cases
  • PWM fans sync speed via motherboard control
  • Self-adhesive backing secures hub without tools

10-Port PWM Fan Hub Splitter

This Corn Electronics hub expands a single motherboard PWM header to support up to ten cooling fans. It draws main power from a standard Molex LP4 connector on the power supply while passing the PWM control signal from the CPU fan header. The package includes a 60 cm PWM cable and a self-adhesive pad for mounting the PCB inside the chassis.

Builders with many case or radiator fans

The hub suits systems that need a tidy central power point for numerous 3-pin or 4-pin fans. It is not for users who require individual RPM monitoring on every channel, because only the first port reports a speed signal back to the motherboard. Builders who need per-fan speed curves or have no spare Molex connector should look at a different solution.

Simple installation with adhesive mount

Stick the board in place, plug the Molex lead into the PSU and the PWM lead into the CPU fan header, then attach up to ten fans. The only common issue is forgetting that 3-pin fans will run at full speed continuously, since they lack PWM control. Ensure the Molex connection is fully seated to avoid intermittent power to the nine secondary ports.

Highlights

  • Expands one PWM header to ten fans
  • Molex power delivers stable current to nine channels
  • 60 cm cable reaches across full-size cases
  • PWM fans sync speed via motherboard control
  • Self-adhesive backing secures hub without tools

Specifications

BrandCORN

Questions about this item

What motherboard header and power connector does the hub need to run ten fans?

It plugs into one 4-pin PWM CPU fan header for the control signal and draws fan power from a Molex LP4 4-pin connector from the PSU.

If I connect three-pin fans to the hub, will they still be speed-controlled by the motherboard?

Three-pin fans lack a PWM wire, so they run at full speed regardless of the motherboard PWM signal.

How can I confirm the hub is reporting fan speed correctly after installation?

Only the CPU Fan channel passes an RPM signal to the motherboard; check that channel 1 shows a speed reading in BIOS or monitoring software.
