Black metal box with eight terminal block ports and USB cable

CoolGear

CoolGear USB2-8COMi-TB 8-Port RS232/422/485 USB Converter

SKU CH-30BW-124CP

Adds eight RS-232/422/485 serial ports via USB 2.0 with screw-lock terminal blocks, 15KV ESD and 600W surge protection per port, and DIP-switch control for termination and biasing

  • ColorBlack
  • Changer TypeUSB to DB9 (RS-232)
  • Eight serial ports via one USB connection
  • 15 KV ESD and 600 W surge protection per port
  • Screw-lock terminal blocks for secure wiring
  • DIP-switch control of signals, termination and bias
  • USB 1.1 and 2.0 compatible up to 480 Mbps

8-Port Industrial USB-to-Serial Adapter

The CoolGear USB2-8COMi-TB adds eight serial ports to a system through a single USB connection. It is built for industrial automation, point-of-sale equipment and legacy device integration where DB9 cabling is not practical. The rugged metal enclosure and DIN-rail dimensions suit cabinet mounting. This adapter is not for users who need only one or two ports or who prefer standard DB9 connectors.

USB 2.0 Bandwidth and Signal Limits

The device operates at USB 1.1 or 2.0 speeds from 1.5 up to 480 Mbps with automatic link detection. Each serial channel handles data rates from 300 bps to 921.6K bps using 2K byte transmit and receive buffers. Port signals are selected by internal DIP switches accessed through the bottom panel. It does not support USB 3.0 or higher throughput, so total aggregate bandwidth is capped at the USB 2.0 bulk endpoint limit.

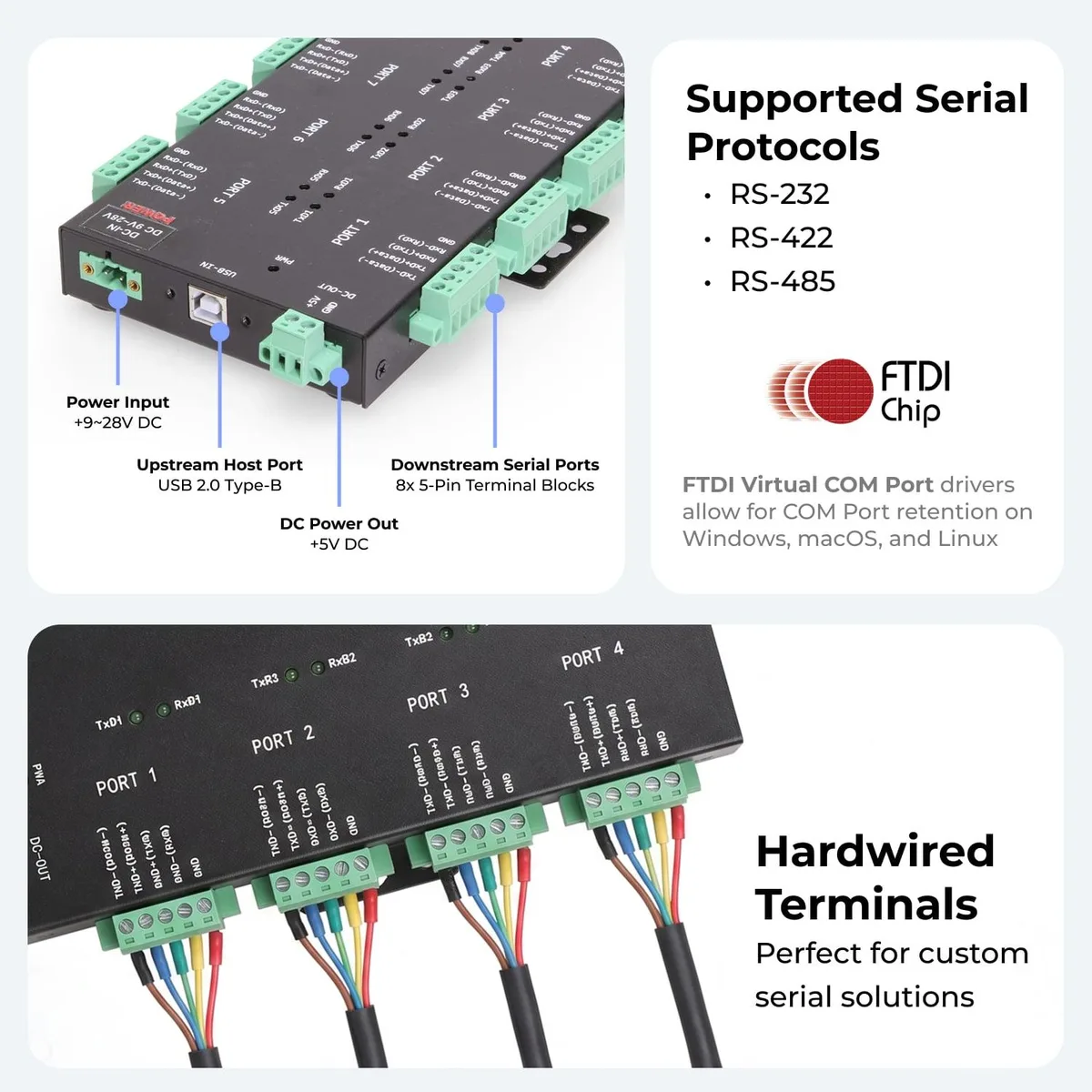

5-Pin Screw Terminal Blocks per Port

Every port uses a 5-pin screw-lock terminal block for RS-232, RS-422 or RS-485 wiring, including 2-wire half-duplex RS-485 with auto-transmit control. On-board biasing and termination resistors are configured by the same DIP switches. The package includes a 12 V 1 A AC-to-DC power supply for port protection rated at 15 KV ESD and 600 W surge per port. Buyers who require standard DB9 connectors must use a different adapter.

Highlights

  • Eight serial ports via one USB connection
  • 15 KV ESD and 600 W surge protection per port
  • Screw-lock terminal blocks for secure wiring
  • DIP-switch control of signals, termination and bias
  • USB 1.1 and 2.0 compatible up to 480 Mbps

Specifications

BrandCoolgear
ModelUSB2-8COMi-TB
ColorBlack
Changer TypeUSB to DB9 (RS-232)

Questions about this item

How many serial ports does the USB2-8COMi-TB provide and what connectors do they use?

The adapter adds eight RS-232/422/485 ports, each with a 5-pin screw-lock terminal block connector.

What data rates can each port actually sustain once the adapter is connected to a USB 2.0 host?

Each port handles 300 bps to 921.6 Kbps with 2K byte transmit and receive buffers, while the USB link runs at up to 480 Mbps.

Does the USB 2.0 interface limit the total throughput across all eight ports?

The shared USB 2.0 link caps aggregate bandwidth at 480 Mbps, so simultaneous high-speed traffic on multiple ports will contend for that bus.
