White indoor dome camera with varifocal lens and three-axis bracket

Computar Ganz

Computar Ganz ZC-DW8312NBA cctv camera 690 TVL 3.3-12mm

SKU CH-VGZY-KPJ82

Indoor dome camera delivers 690 TVL resolution with True WDR and a 3.3-12mm varifocal lens

  • 690 TVL resolution captures fine detail
  • True WDR handles high-contrast scenes clearly
  • 3-12mm varifocal lens adjusts field of view
  • 3-axis bracket simplifies precise camera aiming
  • Dual 12/24 V power input eases installation

Product purpose

The Computar Ganz ZC-DW8312NBA is a new indoor dome camera built for analogue CCTV systems that need 690 TVL resolution and a 3.3-12mm varifocal lens. It suits installers who want True WDR, digital day/night switching and a 3-axis bracket for precise aiming without replacing existing coaxial infrastructure.

Voltage and cabling limits

The camera accepts 12 VDC or 24 VAC and auto-senses the supply, so a single model covers both common power standards. Video travels over traditional coaxial cable, which caps resolution at 690 TVL and prevents the use of IP networking features such as remote configuration or PoE.

Installation notes

A gang-box mount and 3-axis manual bracket let the unit sit flush on ceilings or walls, while the OSD tact switch handles WDR, motion zones and privacy masks on-site. The varifocal lens must be focused by hand at the camera, and outdoor or vandal-rated housings require separate accessories not included in the box.

Highlights

  • 690 TVL resolution captures fine detail
  • True WDR handles high-contrast scenes clearly
  • 3-12mm varifocal lens adjusts field of view
  • 3-axis bracket simplifies precise camera aiming
  • Dual 12/24 V power input eases installation

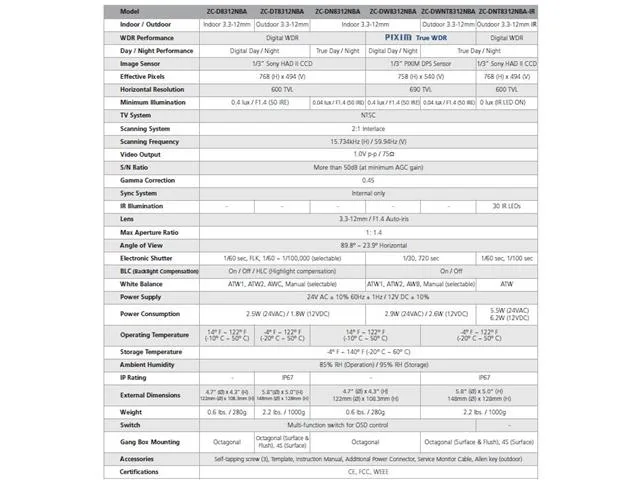

Specifications

BrandComputar Ganz
ModelZC-DW8312NBA

Questions about this item

Which voltage option should I pick for the ZC-DW8312NBA, 12 V DC or 24 V AC?

The camera auto-senses both 12 V DC and 24 V AC, so either supply works without manual switching.

What does the 690 TVL rating deliver on a live monitor?

690 TVL provides high-resolution analogue video that captures fine detail such as facial features and text at typical indoor distances.

How does the 3.3-12 mm varifocal lens affect the field of view?

The lens adjusts from a wide 3.3 mm angle to a narrow 12 mm zoom, letting you frame the scene precisely during installation.
