Small silver rectangular CCTV camera with fixed lens

Computar Ganz

Computar Ganz MCWB-2.9N CCTV Camera 2.9mm 600TVL Sony Super HAD

SKU CH-FRGT-STPYP

Compact 1/3" Sony Super HAD CCD camera delivers 600TVL resolution through a 2.9mm fixed lens with 0.05 lux color sensitivity

  • Compact 36 × 40 × 38 mm body fits tight ATM enclosures
  • Sony 1/3" Super HAD CCD delivers 600 TVL horizontal resolution
  • 05 lux color sensitivity captures detail in dim conditions
  • Sens-Up ×512 extends low-light reach to 0.0001 lux
  • 9 mm fixed lens provides wide-angle coverage for close-range monitoring

Compact ATM Surveillance Camera

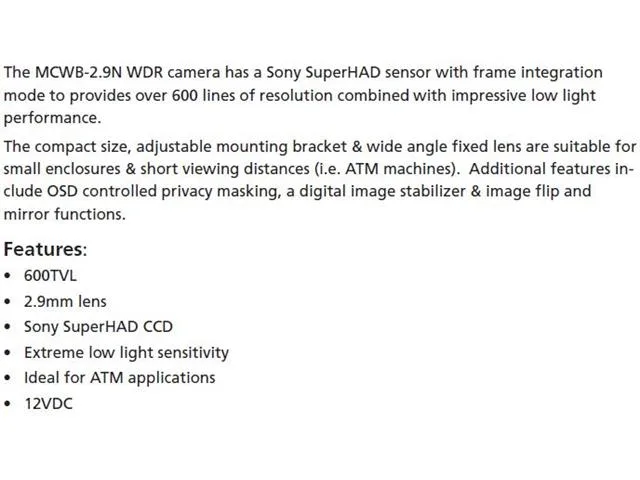

The Computar Ganz MCWB-2.9N is a 600TVL analog CCTV camera built around a 1/3" Sony Super HAD CCD. Its 2.9mm fixed lens and extreme low-light sensitivity down to 0.0001 Lux with Sens-Up make it suitable for ATM and similar indoor security monitoring. The unit operates on 12VDC power.

Simple 12VDC Installation

The camera measures 36mm x 40mm x 38mm and weighs 0.2lbs, allowing placement in tight enclosures. Connection uses a standard composite video output at 1.0Vp-p 75 Ohm alongside the 12VDC supply drawing 160mA. Ensure the operating temperature stays within 14°F to 122°F and that the fixed 2.9mm focal length matches the required field of view.

Analog Composite Video Limits

Video transmits over a single composite cable at 600TVL resolution with 768 x 494 effective pixels. The 2:1 interlace sync and 75 Ohm impedance restrict cable runs compared to modern digital interfaces. Signal-to-noise ratio exceeds 52dB with AGC off, while shutter speeds range from 1/60 to 1/90,000 sec for varied lighting.

Highlights

  • Compact 36 × 40 × 38 mm body fits tight ATM enclosures
  • Sony 1/3" Super HAD CCD delivers 600 TVL horizontal resolution
  • 05 lux color sensitivity captures detail in dim conditions
  • Sens-Up ×512 extends low-light reach to 0.0001 lux
  • 9 mm fixed lens provides wide-angle coverage for close-range monitoring

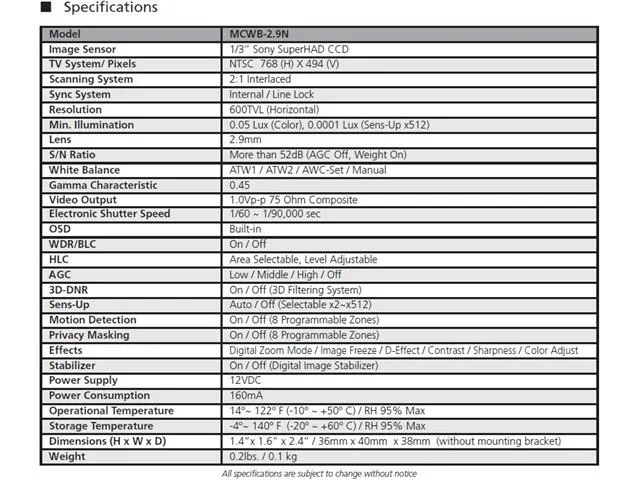

Specifications

BrandComputar Ganz
ModelMCWB-2.9N

Questions about this item

How do I verify the camera is operating correctly after installation?

Check the composite video output for a stable 1.0Vp-p 75 Ohm signal at 600TVL resolution with the OSD menu accessible, confirming 768x494 effective pixels and a signal-to-noise ratio above 52dB.

What comes in the box and what must be purchased separately?

The camera unit measuring 36mm x 40mm x 38mm and weighing 0.2lbs with a built-in 2.9mm fixed lens is included; a 12VDC power supply capable of 160mA and coaxial video cable are not included.

Which version should I choose for an ATM installation needing low-light performance?

This MCWB-2.9N model with Sony Super HAD CCD delivers 0.05 Lux color sensitivity and 0.0001 Lux with Sens-Up x512, plus 14°F to 122°F operating range suited for ATM environments.
