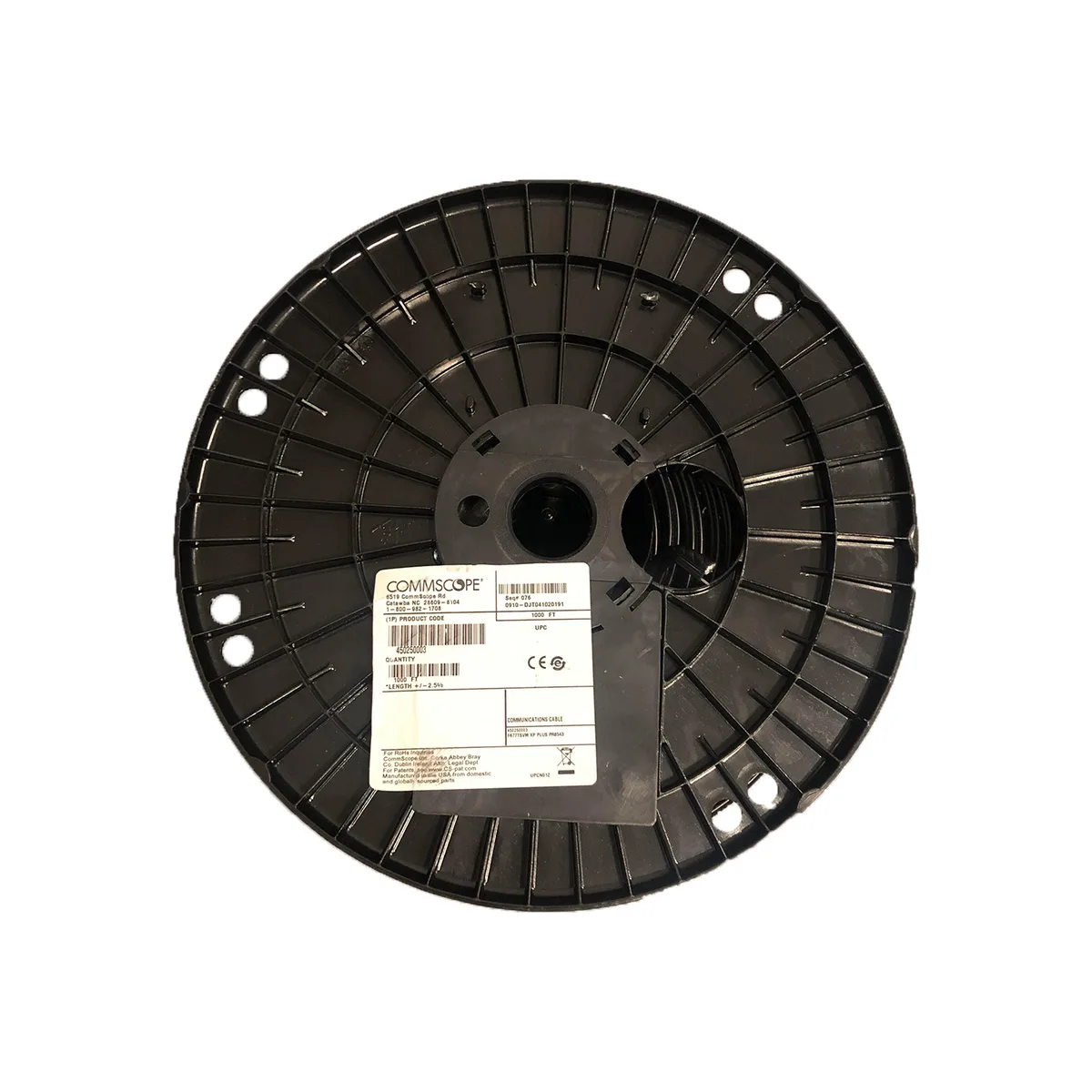

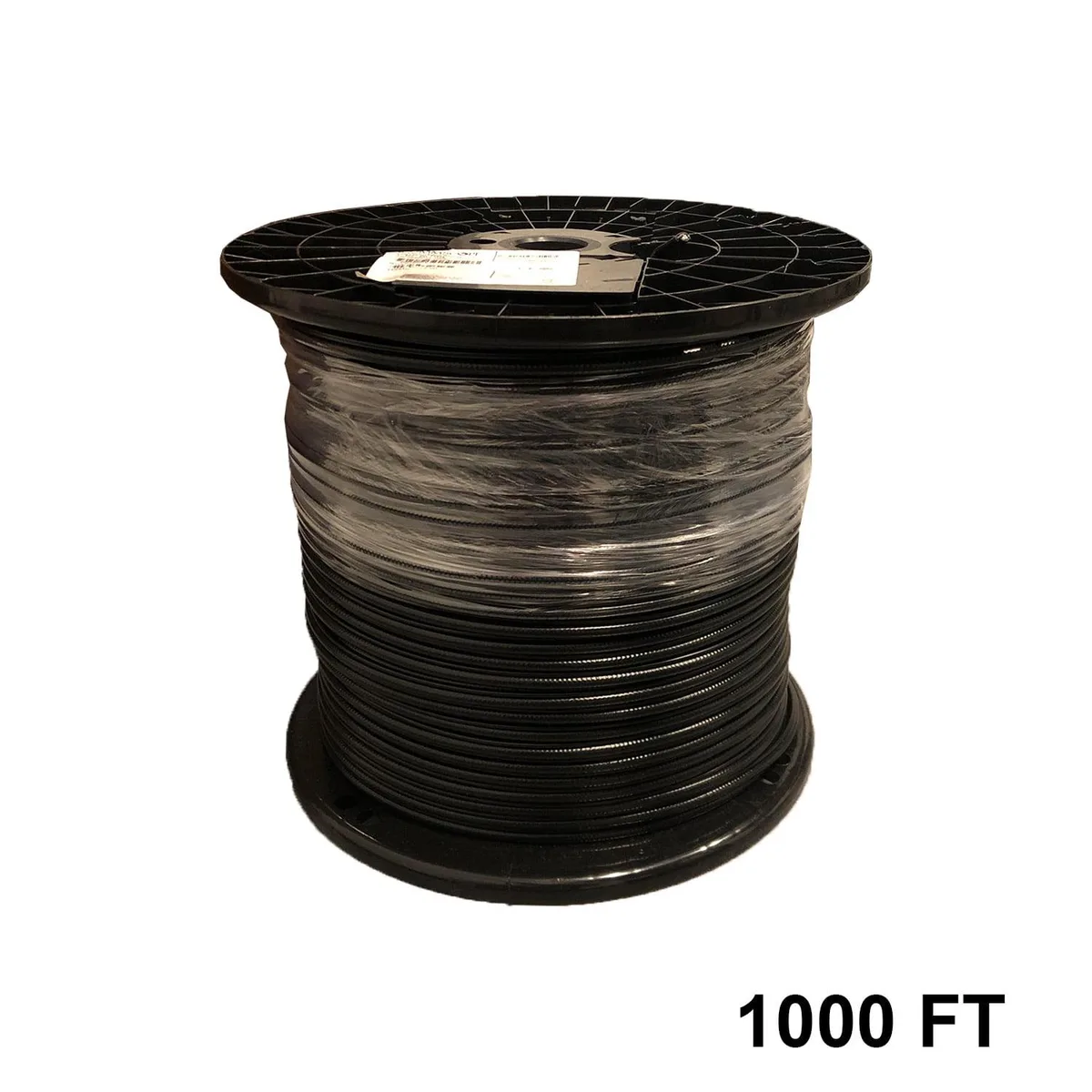

Black coaxial cable reel with messenger wire, 1000 ft

COMMSCOPE

COMMSCOPE F677TSVM XP Plus 1000 ft Tri-shield 18 AWG 75 Ohm coaxial rf cable

SKU CH-11NR-FFHVE

Tri-shield 18 AWG 75 Ohm coaxial cable on a 1000 ft reel for HDTV, internet, satellite and CCTV runs

  • TypeCoaxial cable
  • ColorBlack
  • Length1000 ft
  • FeaturesUniversal
  • Tri-shield construction adds extra foil barrier for interference protection
  • 77% braided aluminum shield coverage between dual foil layers
  • 18 AWG solid center conductor ensures consistent 75 Ohm signal transmission
  • 1000 ft reel provides continuous length for whole-building installations
  • Manufactured in the United States by CommScope for commercial-grade reliability

CommScope F677TSVM XP

This 1000 foot reel of black Series 6 coaxial cable is designed for professional telecommunications and security installations. It features a solid 18 AWG center conductor and a 75 Ohm impedance rating suitable for HDTV, high-speed internet, satellite television and CCTV applications. The cable is manufactured in the United States by CommScope.

Tri-Shield construction replaces standard

The Tri-Shield design adds a second foil layer over the 77% braided aluminum shield to create an additional interference barrier. This construction improves transmission reliability in environments where electromagnetic noise is a concern. The upgrade is worth it when signal integrity over long runs is critical for video or data distribution.

Check that your connectors

The bonded foil dielectric and additional foil layer require compression connectors and preparation tools rated for Tri-Shield RG6 cable. Verify that your existing F-type connectors accommodate the shield thickness and that your installation hardware supports the integrated messenger wire for aerial spans.

Highlights

  • Tri-shield construction adds extra foil barrier for interference protection
  • 77% braided aluminum shield coverage between dual foil layers
  • 18 AWG solid center conductor ensures consistent 75 Ohm signal transmission
  • 1000 ft reel provides continuous length for whole-building installations
  • Manufactured in the United States by CommScope for commercial-grade reliability

Specifications

BrandCommScope
TypeCoaxial cable
ColorBlack
Length1000 ft
FeaturesUniversal

Questions about this item

What size drill hole or conduit does the 18 AWG centre conductor and Tri-shield jacket require?

The 18 AWG solid centre conductor sits inside a Series 6 Tri-shield jacket that fits standard RG6 compression connectors and typical 3/8 inch drill holes or 1/2 inch conduit.

How do I prep the bonded foil and 77 % braid without nicking the conductor?

Use an RG6 compression prep tool to strip the jacket, fold back the outer foil, trim the 77 % aluminium braid flush, then remove the bonded inner foil in one motion before seating the connector.

Will the solid messenger wire and black PVC jacket need replacement if run outdoors?

The solid steel messenger wire supports aerial spans, and the UV-resistant black PVC jacket is rated for direct-burial and outdoor exposure, so no scheduled replacement is required.
