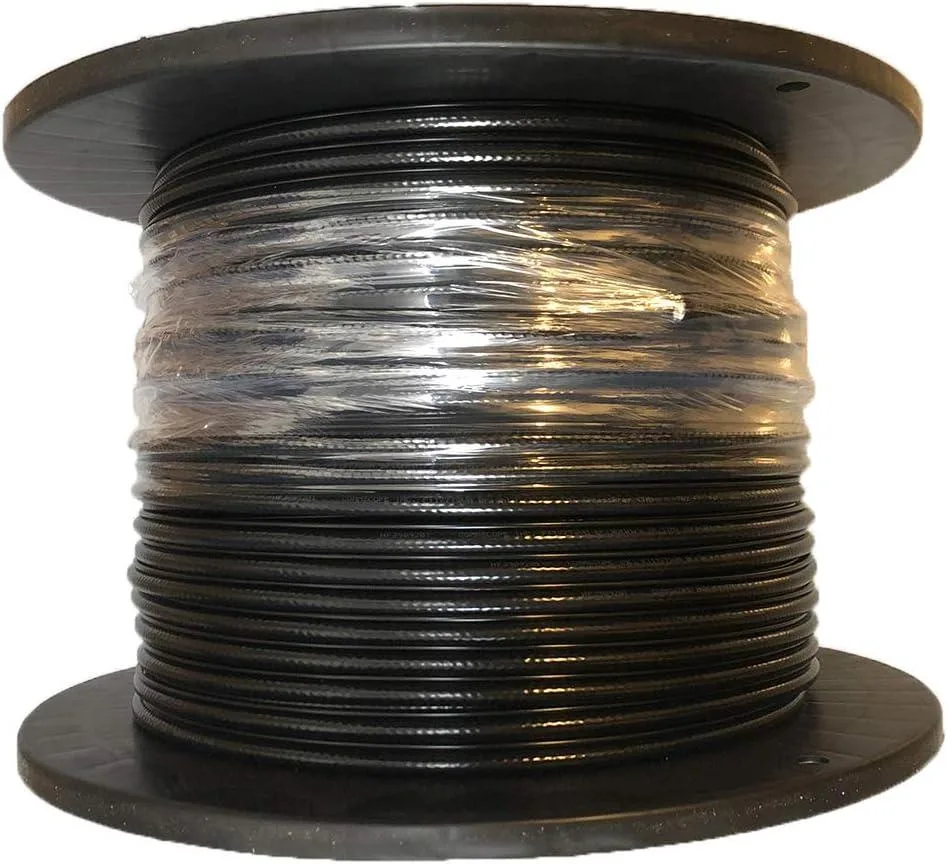

Black RG11 coaxial cable reel 800 ft tri-shield construction

COMMSCOPE

COMMSCOPE F1177TSVM RG11 Tri-Shield Coaxial Cable 800 FT Black

SKU CH-NGK8-X4TK6

800 ft reel of RG11 tri-shield coaxial cable with 14 AWG solid centre conductor, 75 Ω impedance and 77 % braid coverage for TV, satellite and CCTV runs

  • TypeCoaxial cable
  • ColorBlack
  • FeaturesUniversal
  • Tri-Shield construction adds a third foil layer for extra interference protection
  • 77 % braided aluminium shield between two foil layers blocks signal loss
  • 14 AWG solid centre conductor maintains strength over long runs
  • 800 ft reel on a single spool simplifies large installation projects
  • Manufactured in the United States by CommScope for commercial-grade reliability

Commercial-Grade RG11 Drop Cable

This 800-foot reel of CommScope F1177TSVM Series 11 coaxial cable is built for professional telecommunications, HDTV, high-speed internet, satellite television and CCTV installations. It features a solid 14 AWG center conductor and a black PVC jacket with an integrated messenger wire for aerial support. The HomeConnect 75 Ohm XPRESSPREP design is manufactured in the United States for reliable signal distribution.

Verify Connector And Impedance Requirements

Before ordering, confirm that your installation uses F-type connectors compatible with Series 11 cable dimensions and 14 AWG solid center conductors. Ensure your system operates at 75 Ohm impedance to match the cable specification. Check that your compression or crimp tools are rated for the larger diameter of RG11 compared to smaller series cables. Verify local building codes for aerial deployments using the attached solid messenger wire.

Tri-Shield Construction For Interference Rejection

The Trishield design places 77 percent braided aluminum shield coverage between two layers of aluminum foil, with the first foil layer bonded to the foam dielectric. This construction adds an extra interference barrier to maintain transmission reliability in noisy environments. The black PVC jacket provides standard environmental protection for the 800-foot length during and after installation.

Highlights

  • Tri-Shield construction adds a third foil layer for extra interference protection
  • 77 % braided aluminium shield between two foil layers blocks signal loss
  • 14 AWG solid centre conductor maintains strength over long runs
  • 800 ft reel on a single spool simplifies large installation projects
  • Manufactured in the United States by CommScope for commercial-grade reliability

Specifications

BrandCommScope
ModelF1177TSVM
TypeCoaxial cable
ColorBlack
FeaturesUniversal

Questions about this item

Does the 800 FT reel include F-type connectors or tools, or must they be purchased separately?

The reel supplies only the black PVC-jacketed RG11 cable with its integrated messenger wire; F-type connectors, compression tools and any grounding hardware are not included and must be sourced separately.

When would I select this Series 11 Tri-Shield cable instead of a smaller Series 6 or a quad-shield variant?

Choose Series 11 when runs exceed the reach of Series 6 and you need the lower attenuation of a 14 AWG solid centre conductor; the 77 % braid plus dual-foil Tri-Shield construction suits aerial drops where the messenger wire carries tension and extra foil improves interference rejection.

What does the 75 Ohm rating mean once the cable is terminated in a real installation?

It matches the impedance of standard TV, satellite, broadband and CCTV equipment, so signals from 5 MHz to 3 GHz pass with minimal reflection provided the connectors are correctly fitted to the 14 AWG solid centre conductor and Tri-Shield layers.
