CMPLE 3-Way F-Type Splitter 5-2050MHz 75Ohm

Signal Distribution

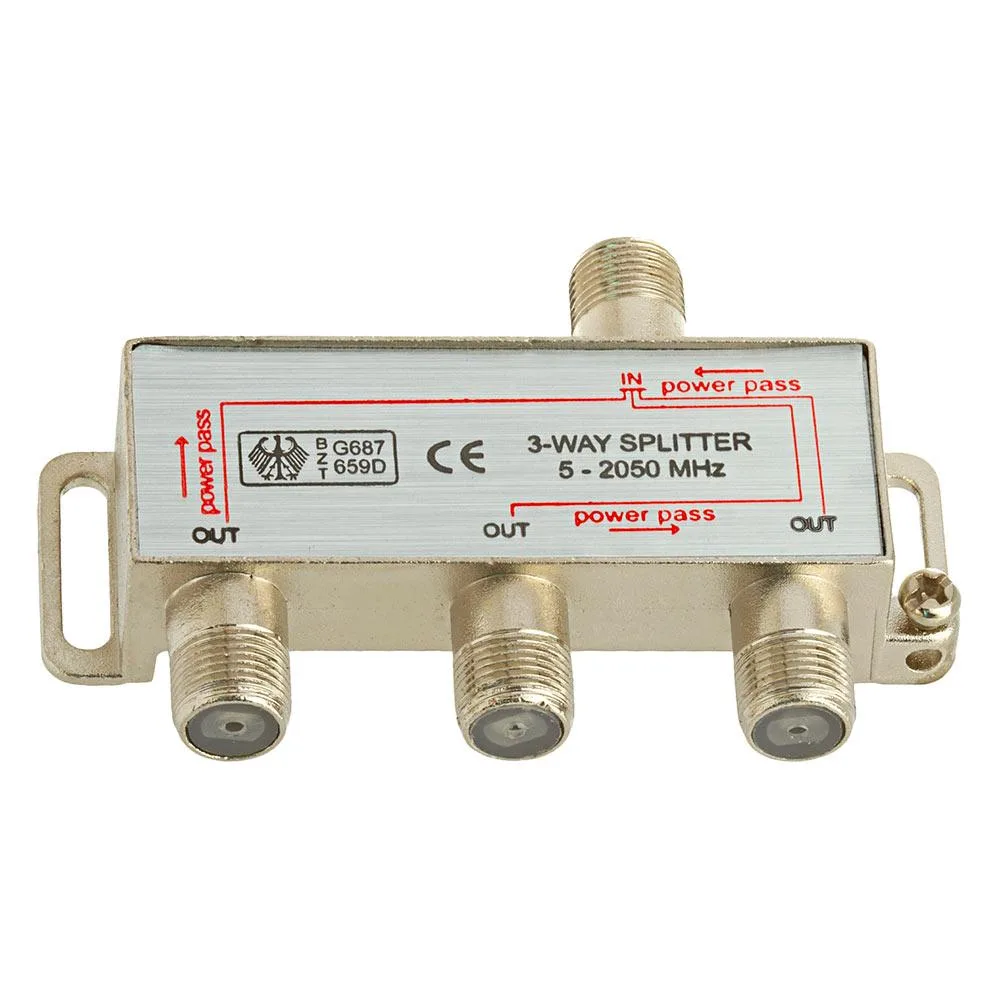

This 3-way F-type splitter divides a single coaxial source into three outputs for cable TV, antenna or VCR signals. It operates across a 5-2050 MHz range at 75 Ohm impedance and includes a grounding block with screw mounts for secure installation. Epoxy-sealed construction with anti-corrosion plating protects the internal contacts from moisture and oxidation. The unit accepts standard F-type fittings and passes DC power through all ports.

Build Integration

The splitter fits inline between the incoming coaxial feed and up to three display or recording devices. Its cast-in ground block provides a convenient earthing point without requiring a separate component. Screw-mount tabs allow the unit to be fastened to a wall, cabinet or distribution panel for a tidy, permanent setup. DC power-passing capability means upstream amplifiers or powered antennas remain functional through the splitter.

Capacity And Headroom

Three output ports support simultaneous connection of televisions, VCRs or tuners from one source. The 5-2050 MHz bandwidth covers standard cable and over-the-air broadcast frequencies. Signal loss increases with each split, so runs to distant outlets may need amplification beyond what this passive device provides. It does not support satellite band stacking or multi-switch configurations requiring higher frequency ranges.
