Rectangular metal KVM switch with push button and LED indicators, 4.5 by 13 by 18.6 centimeters

Club3D DP KVM-02 DisplayPort KVM Switch 2 Monitors 2 Computers 8K@60Hz 4K@120Hz 4 USB 3.0

SKU CH-VHVE-YSYD4

Share two DisplayPort monitors and four USB 3.0 devices between two computers at up to 8K@60Hz or 4K@120Hz resolution

  • TypeHDMI Switchers
  • Changer TypeHDMI
  • Ports5
  • SpecificationsDP KVM-02, Aoyvsktv, Push Button, Plug In, push_button, 2 am
  • Input ConnectorPlug In
  • Output ConnectorPlug In
  • Share two DisplayPort monitors and four USB devices between two computers with a single button press
  • Supports up to 8K at 60 Hz and 4K at 120 Hz with no signal degradation or driver installation
  • Four USB 3.0 ports deliver up to 5 Gbps transfer speed and are backward compatible with USB 2.0 1.1 1.0
  • Wired remote controller and front-panel push buttons give instant switching with LED status indication
  • Compact metal chassis measuring 4.5 L x 13 W x 18.6 H centimetres weighs 281 grams

Dual-DisplayPort KVM Switch for Two Computers

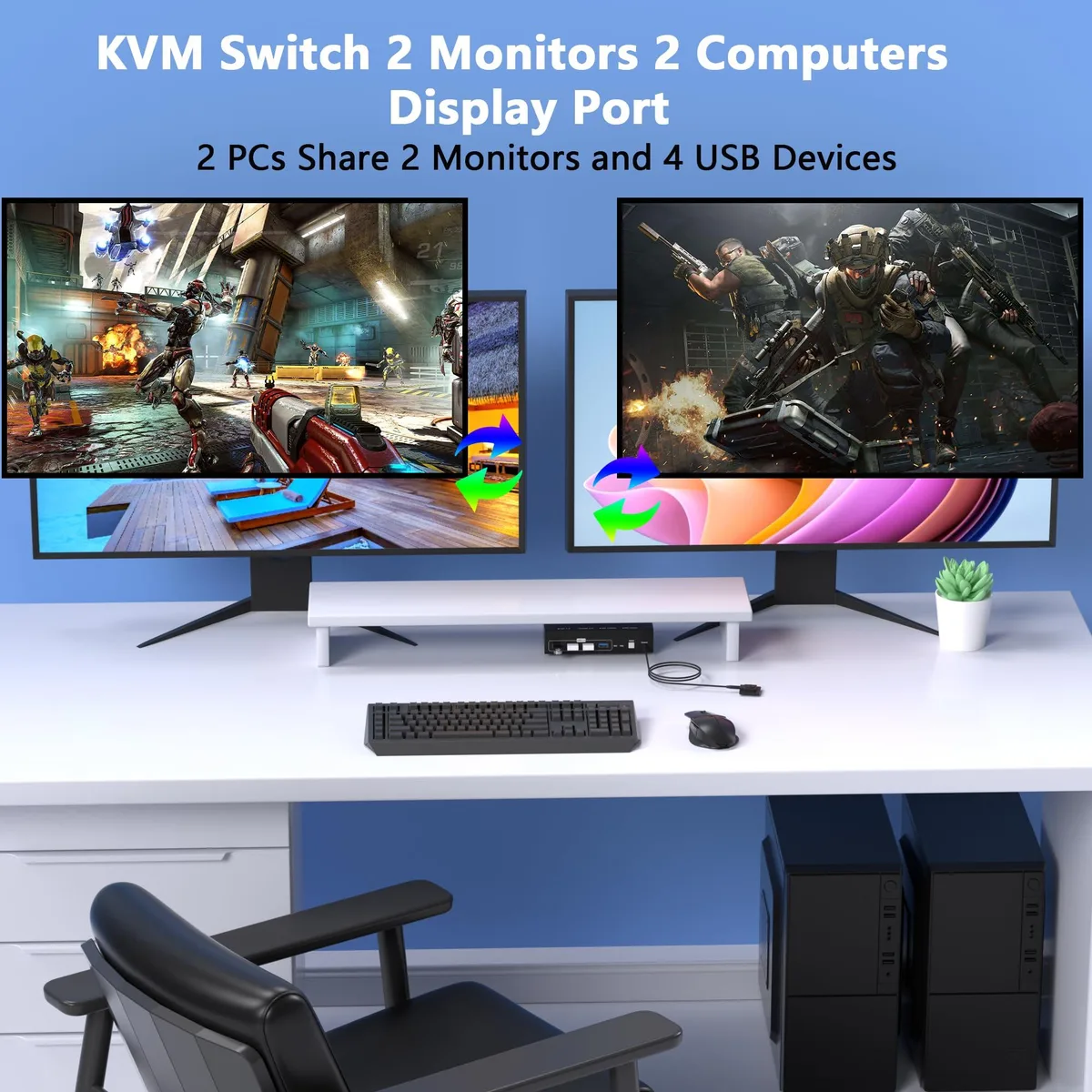

This DisplayPort KVM switch lets two computers share two monitors and four USB 3.0 peripherals. It is built for users who need to control a pair of systems from a single keyboard, mouse and dual-screen setup. Switching is handled by front-panel buttons or the included wired remote controller. No software or driver installation is required for operation.

DisplayPort-Only Connectivity With Resolution Limits

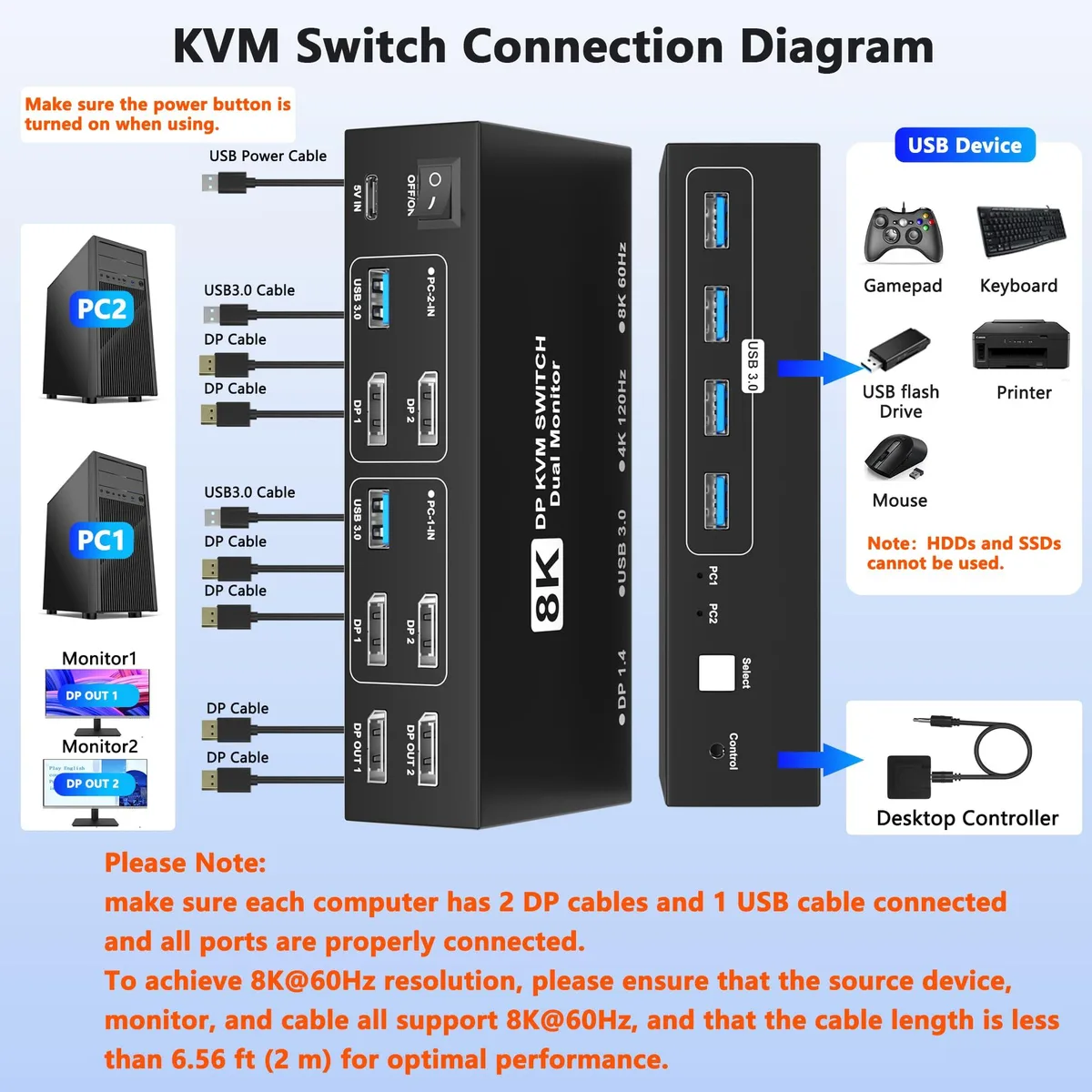

The unit accepts only native DisplayPort signals; HDMI ports, docking stations and adapter cables are not supported. Each computer must connect with two DisplayPort cables and one USB cable to enable dual-screen output. Maximum supported output is 8K at 60 Hz or 4K at 120 Hz, with backward compatibility down to 1080p. Cables are not included, so both source and display must provide the required DisplayPort links.

Four USB 3.0 Ports Shared at 5 Gbps

Four downstream USB 3.0 ports provide up to 5 Gbps aggregate bandwidth and are backward compatible with USB 2.0, 1.1 and 1.0. All four ports can be active simultaneously for keyboards, mice, printers, scanners or flash drives. The supplier notes that hard drives and SSDs cannot be used on these ports. The switch draws power from a supplied 5 V USB cable and measures 14.33 in wide, 12.83 in high and 9.06 in deep.

Highlights

  • Share two DisplayPort monitors and four USB devices between two computers with a single button press
  • Supports up to 8K at 60 Hz and 4K at 120 Hz with no signal degradation or driver installation
  • Four USB 3.0 ports deliver up to 5 Gbps transfer speed and are backward compatible with USB 2.0 1.1 1.0
  • Wired remote controller and front-panel push buttons give instant switching with LED status indication
  • Compact metal chassis measuring 4.5 L x 13 W x 18.6 H centimetres weighs 281 grams

Specifications

BrandClub3D
SeriesDP KVM-02
ModelDP KVM-02
Part NumberDP KVM-02
TypeHDMI Switchers
Changer TypeHDMI
Ports5
SpecificationsDP KVM-02, Aoyvsktv, Push Button, Plug In, push_button, 2 amps, 5 volts, 13, 2-way, Plug In Mount, ON-OFF, Normally Open, Metal, 4.5 L x 13 W x 18.6 H centimeters, 0.475 kilograms
Input ConnectorPlug In
Output ConnectorPlug In
Connector PlatingMetal
FeaturesPush Button, push_button, ON-OFF, Normally Open, Metal, Plug In Mount, Plug In, Through Hole, DP KVM-02, 1xKVM switch, 2xUSB3.0 Cables, 1xUSB Power Cable,1xController, 1xUser Manual
Dimensions14.33in W x 12.83in H x 9.06in D
Weight281 grams
Package Quantity1, Count
Package Contents1xKVM switch, 2xUSB3.0 Cables, 1xUSB Power Cable,1xController, 1xUser Manual
Disclaimernot_applicable, true

Questions about this item

Should I pick the DP KVM-02 or a different capacity for two computers and two monitors?

The DP KVM-02 is built for exactly two computers and two DisplayPort monitors, so it matches that setup without extra capacity to choose.

What does the 8K@60Hz rating mean when I connect my PCs and displays?

It means the switch can pass up to 8K at 60 Hz, 4K at 120 Hz, 2K at 144 Hz or 1080p at 60 Hz, provided every source, monitor and DP cable also supports the target resolution.

Which DisplayPort standard does the switch use and what bandwidth does that cap?

The unit uses DisplayPort signalling that carries up to 8K@60Hz and 4K@120Hz video, while the four USB 3.0 ports are limited to 5 Gbps data throughput.
