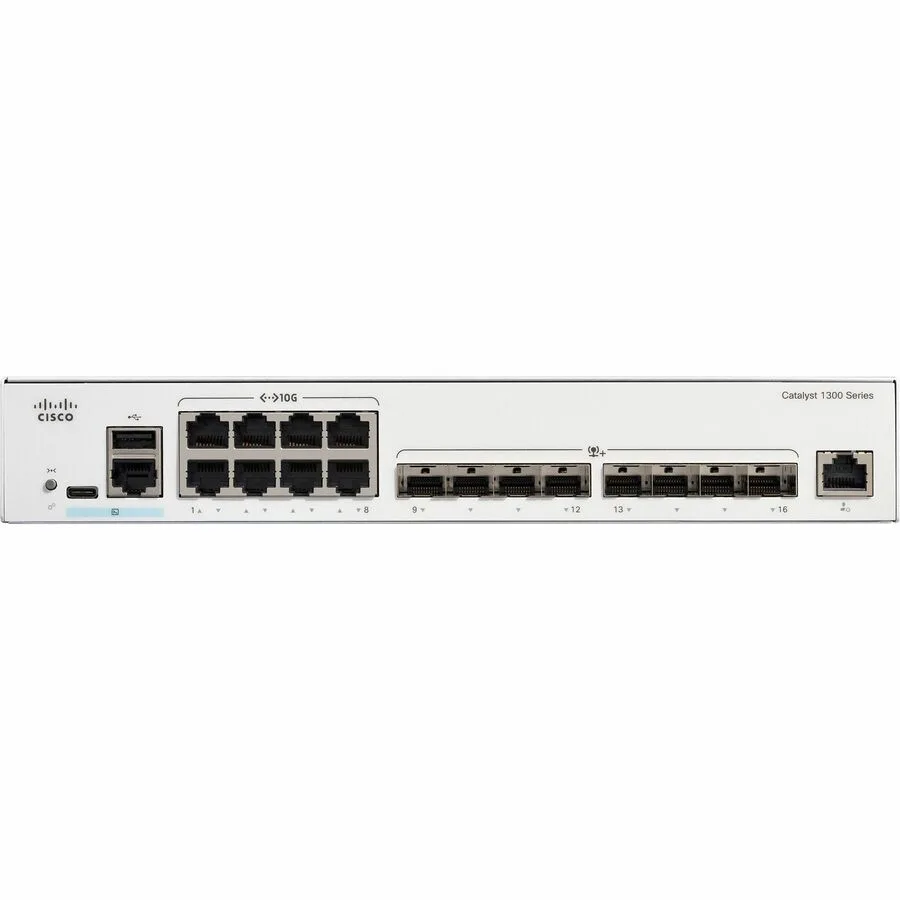

Silver rack-mountable network switch with eight RJ-45 ports and eight SFP+ slots on the front panel

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-16XTS 8-port 10G network switch

SKU CH-9NTJ-XTJH6 MPN C1300-16XTS

A managed Layer 3 switch with eight 10 Gigabit Ethernet RJ-45 ports and eight SFP+ uplinks for rack-mount aggregation

  • FormatRack-mountable
  • StandardsLayer Supported: 3 Networking Standards: IEEE 802.3 IEEE 802
  • Network MediaMedia Type Supported: Optical Fiber Twisted Pair Ethernet Te
  • Network Management TypeManaged
  • Uplink InterfaceTotal Number of Expansion Slots: 8.0 Expansion Slot Type: SF
  • Primary PortsTotal Number of Network Ports: 8 Uplink Port: Yes Stack Port

Ports 8x 10G RJ45 · 8x SFP+

  • Layer 3 routing scales network design with 8 ports
  • 10 Gigabit Ethernet delivers 1.25 GB/s over twisted pair up to 100 meters
  • Fanless operation cuts noise and power draw to 35.20 W
  • Managed via mobile app, web UI or dashboard without licences
  • Rack-mountable 1.7" height fits standard cabinets at 5.91 lb

Layer 3 Switch for Small Business Networks

The Cisco Catalyst C1300-16XTS is a managed Layer 3 switch designed for small business environments requiring high-speed connectivity. It provides eight 10 Gigabit Ethernet RJ-45 ports and eight SFP+ expansion slots for fiber uplinks. The switch operates fanless for silent deployment and supports routing between VLANs for scalable network design. Management is handled through an intuitive mobile app, local web interface, or Cisco Business Dashboard.

Suits Growing Businesses Needing 10G Copper

This switch fits offices that want 10GBase-T connections over existing twisted pair cable up to 100 meters alongside SFP+ fiber links. It requires no subscription or license fees and includes a limited lifetime hardware warranty with one-year technical support. Buyers who need Power over Ethernet for access points or cameras should look elsewhere, as this model does not supply PoE. Organizations requiring higher port density or modular uplink options will need a different platform.

Eight 10G RJ-45 Ports Plus Eight SFP+ Slots

The defining specification is the combination of eight 10GBase-T copper ports and eight 10GBase-X SFP+ expansion slots in a 1U rack-mountable chassis. This fixed port layout determines whether the switch matches your cabling plan and uplink strategy. The unit draws 35.20 W from a 120 V or 230 V AC supply and meets UL 62368, CSA 22.2, CE and FCC Class A certifications.

Highlights

  • Layer 3 routing scales network design with 8 ports
  • 10 Gigabit Ethernet delivers 1.25 GB/s over twisted pair up to 100 meters
  • Fanless operation cuts noise and power draw to 35.20 W
  • Managed via mobile app, web UI or dashboard without licences
  • Rack-mountable 1.7" height fits standard cabinets at 5.91 lb

Specifications

BrandCisco Systems, Inc
SeriesCatalyst
Part NumberC1300-16XTS
FormatRack-mountable
StandardsLayer Supported:
3
Networking Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3z
IEEE 802.3ae
IEEE 802.3an
IEEE 802.3x
IEEE 802.1D
IEEE 802.1Q
IEEE 802.1p
IEEE 802.1w
IEEE 802.1x
IEEE 802.3af
IEEE 802.3at
IEEE 802.1ab
IEEE 802.3az
Network MediaMedia Type Supported:
Optical Fiber
Twisted Pair
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10GBase-T
10GBase-X
Maximum Data Transfer Rate:
1.25 GB/s
Network Management TypeManaged
Uplink InterfaceTotal Number of Expansion Slots:
8.0
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
8
Primary PortsTotal Number of Network Ports:
8
Uplink Port:
Yes
Stack Port:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
8 x 10 Gigabit Ethernet Network
8 x 10 Gigabit Ethernet SFP+ Expansion Slot
PowerInput Voltage:
120 V AC
230 V AC
Frequency:
50 Hz
60 Hz
Power Source:
Power Adapter
Power Consumption:
35.20 W
DimensionsHeight:
1.7"
Width:
11.8"
Depth:
10.6"
WeightWeight (Approximate):
5.91 lb
CertificationCertifications & Standards:
UL (UL 62368)
CSA (CSA 22.2)
CE mark
FCC Part 15 (CFR 47) Class A
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Package ContentsCatalyst C1300-16XTS Layer 3 Switch
Power Cord (power adapter for select 8-port and 16-port SKUs)
Mounting kit
Pointer Card
Shipping weight3.58 kg
Package size401 × 361 × 107 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the 10GBase-T interface cap at for copper runs?

10GBase-T on this switch delivers 10 Gigabit Ethernet over twisted pair up to 100 metres.

What rack space and clearances does the C1300-16XTS need?

The unit is 1.7 inches high, 11.8 inches wide and 10.6 inches deep, and includes a mounting kit for standard racks.

How is the switch first configured, and what step is often missed?

Use the Cisco Business mobile app or local web UI; the step many skip is creating the admin account before connecting uplinks.
