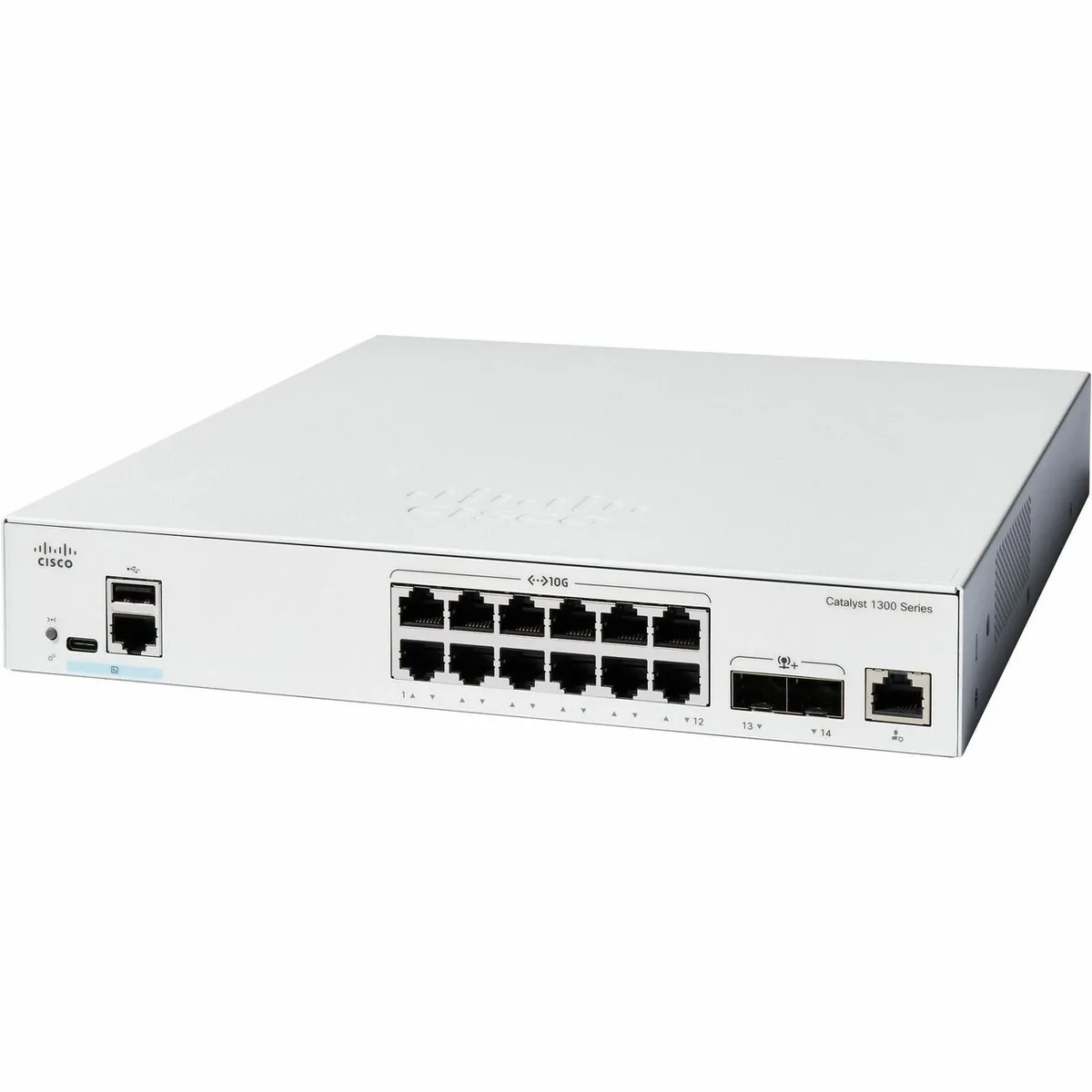

Silver rack-mount network switch with twelve RJ45 ports and two SFP+ cages on the front

Cisco Systems, Inc.

Cisco Systems, Inc. C1300-12XT-2X network switch, 12 x 10G copper, 2 x 10G SFP+

SKU CH-PG19-PCMJV MPN C1300-12XT-2X

Managed 10 Gigabit switch with twelve copper ports, two SFP+ uplinks, Layer 3 routing and stackable operation for up to eight units

  • FormatRackmount
  • StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Et
  • Network Management TypeManaged
  • Primary Ports12 x RJ45 + 2 x SFP+
  • Primary Port Speed12 x 10 Gigabit copper ports 2 x 10 Gigabit SFP+
  • MAC Address TableUp to 32,000 addresses

Ports 12x 10G RJ45 · 2x SFP+

  • 12 copper 10G ports plus 2 SFP+ uplinks for high-density aggregation
  • Stack up to 8 units managing 400 ports as one logical switch
  • Layer 3 routing with OSPF, RIPv2 and PBR for network segmentation
  • 33 Mpps forwarding rate with 9000-byte jumbo frame support
  • SSH, SSL, 802.1X and DHCP snooping secure the control plane

12-port 10G copper switch for growing networks

The Cisco Catalyst C1300-12XT-2X is a managed rackmount switch delivering twelve 10 Gigabit copper ports and two 10 Gigabit SFP+ uplinks. It runs a customised Linux OS with an intuitive dashboard for simplified setup. Layer 3 routing, advanced security, and QoS with eight hardware queues support expanding branch offices.

Suits IT teams needing copper 10G density

Organisations that require Power over Ethernet for phones or cameras must choose a different model, as this unit provides no PoE capability. Buyers needing fibre-only 10G connectivity or higher port counts should evaluate alternative configurations.

Twelve 10GBASE-T RJ45 ports define the access layer

These copper ports set the physical connection type and speed for every attached device. The two SFP+ slots handle uplinks or stacking links, while the single GE management port provides out-of-band access.

Highlights

  • 12 copper 10G ports plus 2 SFP+ uplinks for high-density aggregation
  • Stack up to 8 units managing 400 ports as one logical switch
  • Layer 3 routing with OSPF, RIPv2 and PBR for network segmentation
  • 33 Mpps forwarding rate with 9000-byte jumbo frame support
  • SSH, SSL, 802.1X and DHCP snooping secure the control plane

Specifications

BrandCitrix Systems
SeriesCatalyst 1300
ModelC1300-12XT
Part NumberC1300-12XT-2X
FormatRackmount
StandardsIEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab
1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE
802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet
Network Management TypeManaged
Primary Ports12 x RJ45 + 2 x SFP+
Primary Port Speed12 x 10 Gigabit copper ports
2 x 10 Gigabit SFP+
MAC Address TableUp to 32,000 addresses
Jumbo FramesFrame sizes up to 9000 bytes. The default MTU is 2000 bytes
Packet Forwarding RateCapacity in Millions of Packets Per Second (mpps) (64-byte packets): 208.33
Buffer Memory3 MB
SecuritySecure Shell (SSH) Protocol
Secure Sockets Layer (SSL)
IEEE 802.1X (authenticator role)
IEEE 802.1X supplicant
Web-based authentication
STP Bridge Protocol Data Unit (BPDU) Guard
STP Root Guard
STP loopback guard
DHCP snooping
IP Source Guard (IPSG)
Dynamic ARP Inspection (DAI)
IP/MAC/port binding (IPMB)
Secure Core Technology (SCT)
Secure Sensitive Data (SSD)
Trustworthy systems
Private VLAN
Layer 2 isolation Private VLAN Edge (PVE)
Port security
RADIUS/TACACS+
RADIUS accounting
Storm control
DoS prevention
Multiple user privilege levels in CLI
ACLs
PoENo
StackableSupports up to 8 switches in a stack. Up to 400 ports managed as a single system with hardware failover
Stacking is supported on the following models: C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C130024XTS
PIDs from the same Family can be stacked together. Cross-stacking between Families is not supported.
QoSPriority levels:
8 hardware queues
Scheduling:
Strict priority and Weighted Round-Robin (WRR)
Class of service:
Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS
Queue assignment based on DSCP and Class of Service (802.1p/CoS)
Rate limiting:
Ingress policer; egress shaping and rate control per VLAN, per port, and flow based; dualrate 3-color (2R3C) policing
Congestion avoidance:
A TCP congestion avoidance algorithm is required to minimize and prevent glob
Layer3
Layer 2 FeaturesSpanning Tree Protocol
Port grouping/link aggregation
VLAN
Voice VLAN
Multicast TV VLAN
VLAN translation
Q-in-Q
Selective Q-in-Q
Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)
Unidirectional Link
Detection (UDLD)
DHCP relay at Layer 2
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping
IGMP querier
IGMP proxy
Head-of-Line (HOL) blocking
Loopback detection
Layer 3 FeaturesIPv4 routing
IPv6 routing
Layer 3 interface
Classless Interdomain Routing (CIDR)
Routing Information Protocol (RIP) v2
Policy-Based Routing (PBR)
Open Shortest Path First (OSPF)
DHCP server
DHCP relay at Layer 3
User Datagram Protocol (UDP) relay
PowerPower: 100-240V 50-60 Hz, internal, universal
System power consumption:
110V=50.3W
220V=52W
Power consumption (with PoE): N/A
Idle Power:
110V=20.7W
220V=22.8W
Dimensions268 x 300 x 43.94 mm (10.55 x 11.81 x 1.73 in)
Weight2.64 kg (5.82 lb)
Shipping weight3.90 kg
Package size404 × 361 × 107 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What rack space does the C1300-12XT-2X require for mounting?

The switch is rack-mountable in a standard 19-inch rack; it occupies one rack unit of vertical space.

Which cable type is needed for the 10G copper ports during initial setup?

Use Cat6a or better twisted-pair cable rated for 10GBASE-T to achieve the full 10 Gbps speed on the 12 RJ45 ports.

When should the internal fan assembly be cleaned or replaced?

Inspect the fan intake every six months; clean dust buildup with compressed air and replace the fan module if bearing noise appears.
