China Bks 9 inch Sewer Camera 50m cable 360° rotating 800TVL

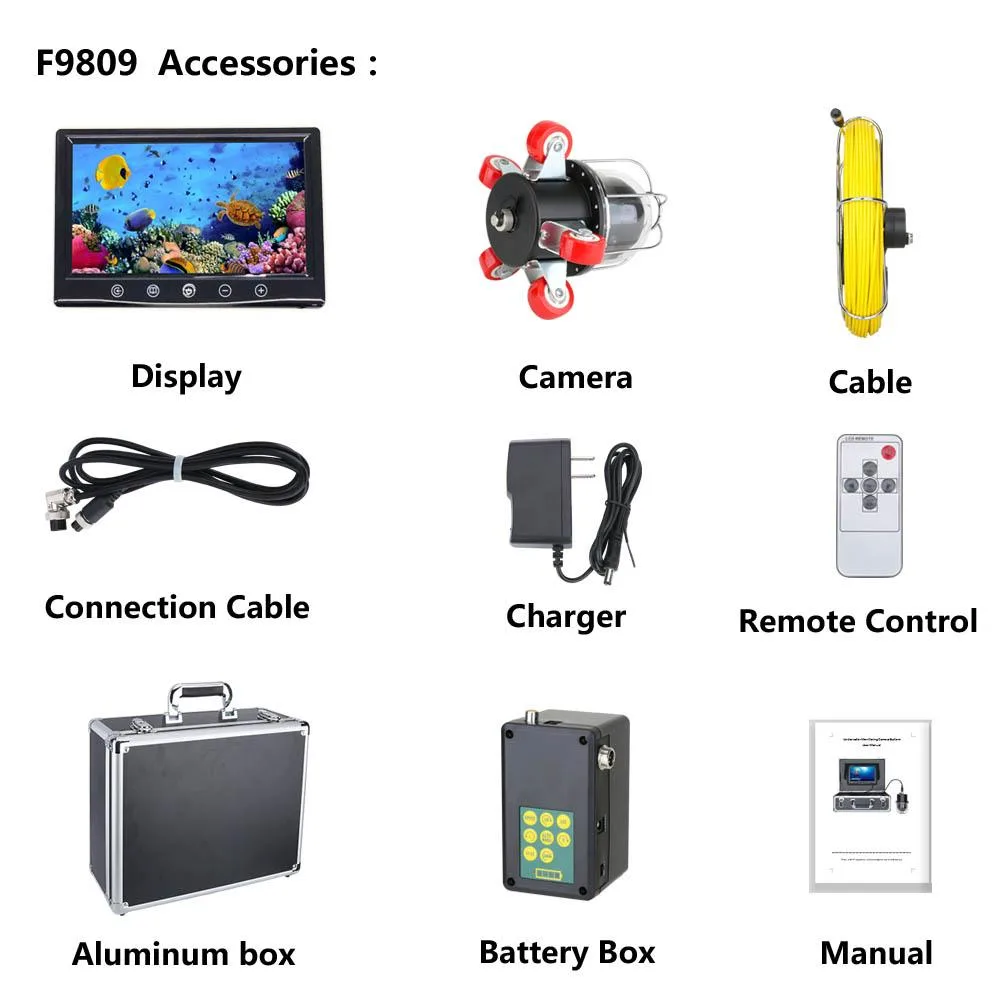

9 inch Sewer Camera with 50 m cable

This pipe-inspection endoscope combines a 9 inch colour TFT LCD monitor with an IP68-rated camera head that delivers 800 TV lines of resolution. The camera rotates 0–180° vertically and 0–360° horizontally for full pipe coverage. Twelve white, IR and blue LEDs provide selectable illumination modes. A 12 V 4500 mAh battery powers roughly six hours of continuous operation.

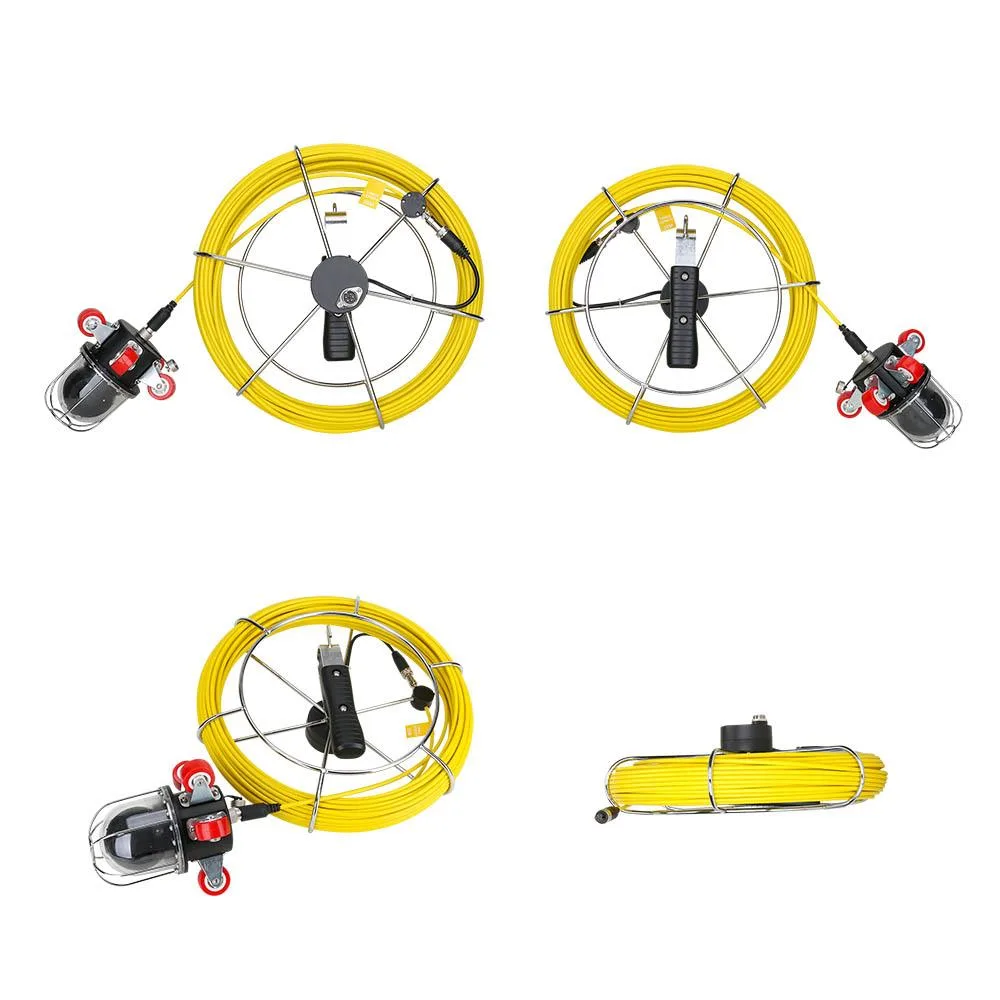

Analog video over fiberglass push rod

The system transmits an analog CCTV signal through a 4.8 mm diameter fiberglass rod that resists corrosion, cold and tension. Maximum reach is 50 metres (164 ft), which limits inspection depth to that length. Wireless DVR and Wi-Fi functions are supported for recording or remote viewing, but the core video path remains an analog feed over the physical cable. No digital network standard or compression format is specified.

Check power, recording and access needs

Verify that six hours of battery life matches the expected shift length; longer jobs will require recharging or an external 12 V source. Confirm the monitor’s built-in DVR or the wireless link satisfies your recording format and storage requirements. Ensure the 50 m rod length and 4.8 mm stiffness suit the pipe diameters and bends you typically encounter; tighter or longer runs may need a different push-rod specification.
