Handheld pipe inspection camera with 17mm probe 50m cable 1.5 inch monitor sun visor padded case

China Bks

China Bks 17mm 50m IP68 Pipe Inspection Camera System 1200 TVL 5in Monitor

SKU CH-F408-GQF6P

A 17 mm waterproof camera head on a 50 m push cable feeds 1200 TVL video to a 1.5 inch monitor with sun visor and a 4400 mAh battery lasting over six hours

  • TypeBox Camera
  • 17 mm camera head fits narrow pipes
  • 50 m cable reaches deep drainage runs
  • IP68 rating withstands full water immersion
  • 1200 TVL sensor captures sharp inspection detail
  • 4400 mAh battery powers over 6 hours use

Compact 17mm Pipe Inspection System

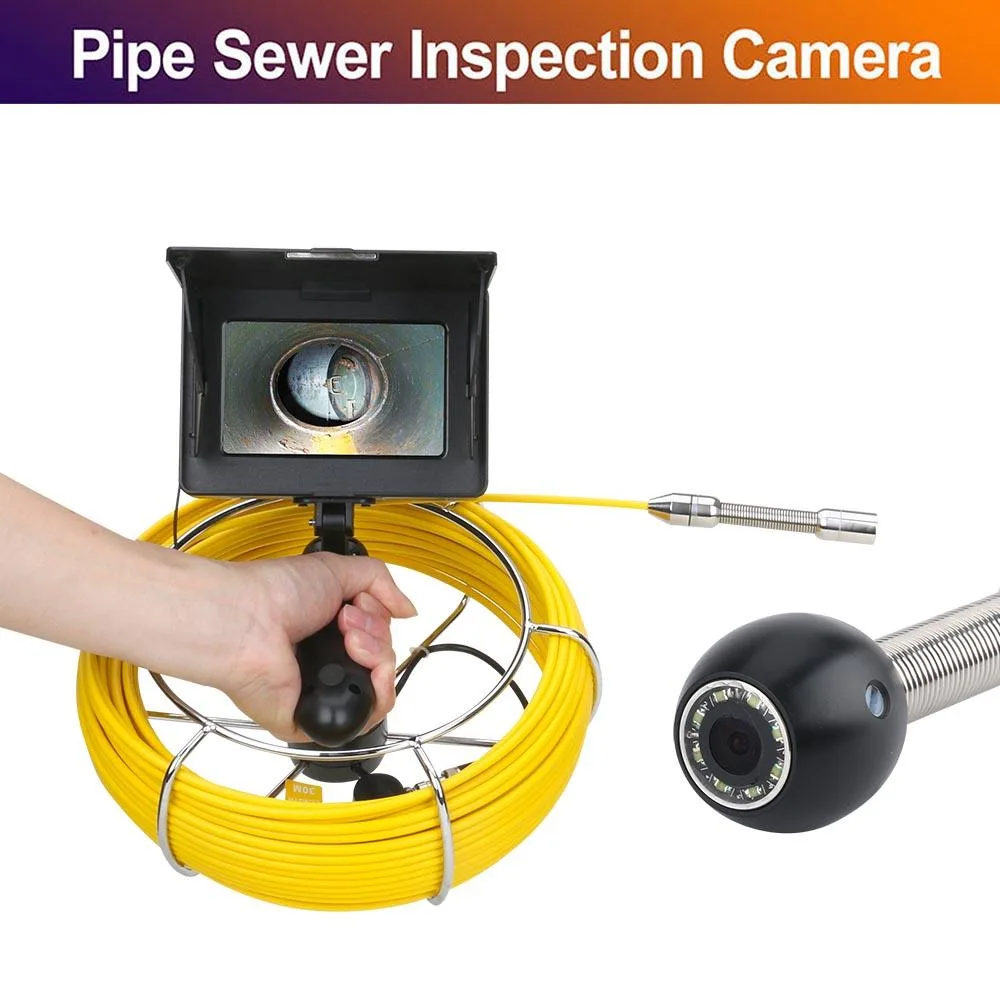

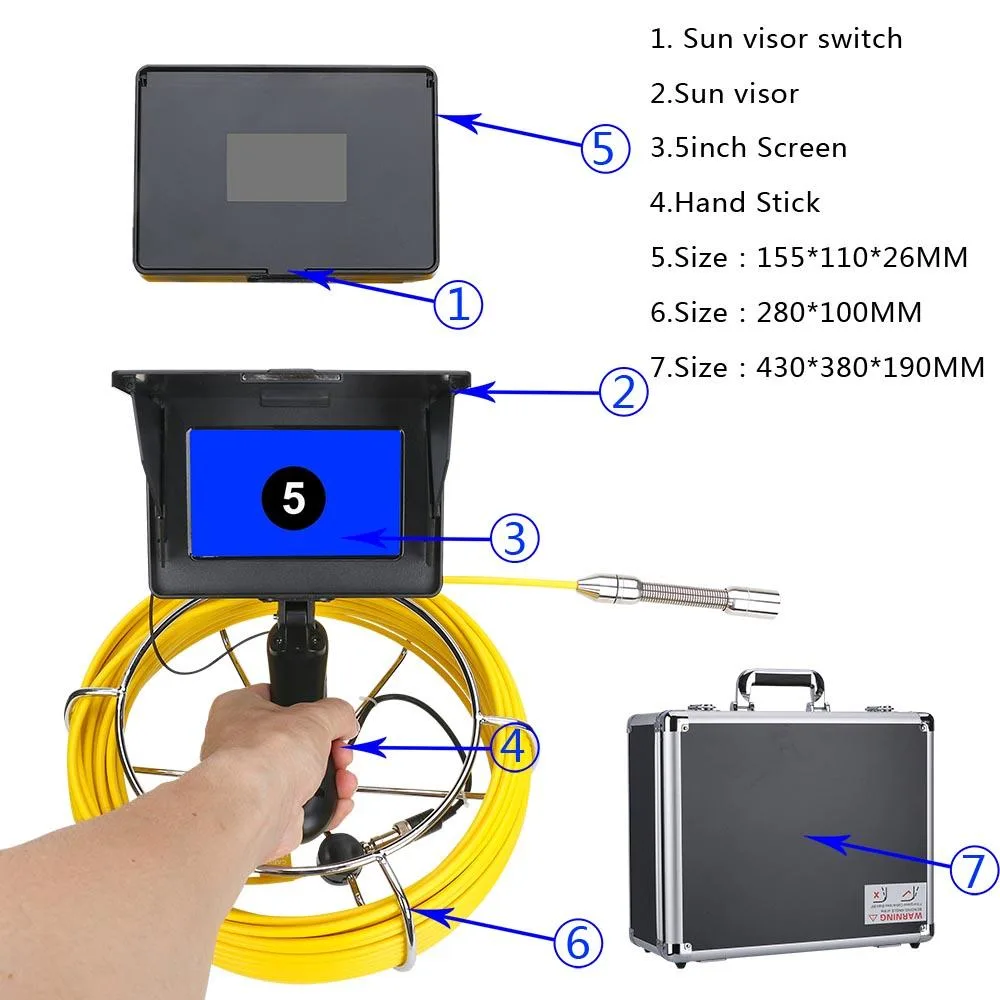

This China Bks system pairs a 17mm camera probe with a 50-metre cable and a 1.5-inch TFT monitor for viewing confined pipe interiors. The IP68-rated camera head includes eight LED lights and delivers 1200 TVL resolution on the 960 by 480 display. A 4400 mAh power bank built from two removable 18650 cells provides over six hours of operation. A padded case and sun visor complete the kit for field use.

Suited For Drain And Duct Surveys

Plumbers, contractors and facility technicians who need to inspect water supply lines, HVAC ducts, cable conduits or underground pipes up to 50 metres deep will find the 17mm diameter practical. The system is not designed for boreholes narrower than 17mm or for runs exceeding the supplied 50-metre cable length. Users requiring digital recording, Wi-Fi streaming or larger monitor sizes should consider other equipment.

Verify Power And Access Requirements

Confirm that the 4400 mAh battery pack charges correctly and that both 18650 cells are seated before a job. Ensure the inspection point can accommodate a 17mm probe and that the 50-metre cable reaches the target zone without joins. Check that the sun visor fits the 1.5-inch monitor for outdoor glare reduction. No external recorder or network connection is included in the package.

Highlights

  • 17 mm camera head fits narrow pipes
  • 50 m cable reaches deep drainage runs
  • IP68 rating withstands full water immersion
  • 1200 TVL sensor captures sharp inspection detail
  • 4400 mAh battery powers over 6 hours use

Specifications

TypeBox Camera

Questions about this item

Does the 17 mm camera head need a separate power source or does it run from the monitor?

The camera probe draws power from the built-in 4400 mAh 18650 battery inside the 1.5 inch monitor, so no external supply is required.

Can I record the 1200 TVL video feed to an external DVR while using the 5 inch handheld screen?

The supplied monitor provides live viewing only; it has no video-out or recording port for connection to a separate recorder.

How do I confirm the IP68 camera is transmitting a clear 960 x 480 picture after I unreel the 50 m cable?

Power on the monitor, check that the LED ring lights illuminate, and verify a sharp colour image appears on the TFT screen.
