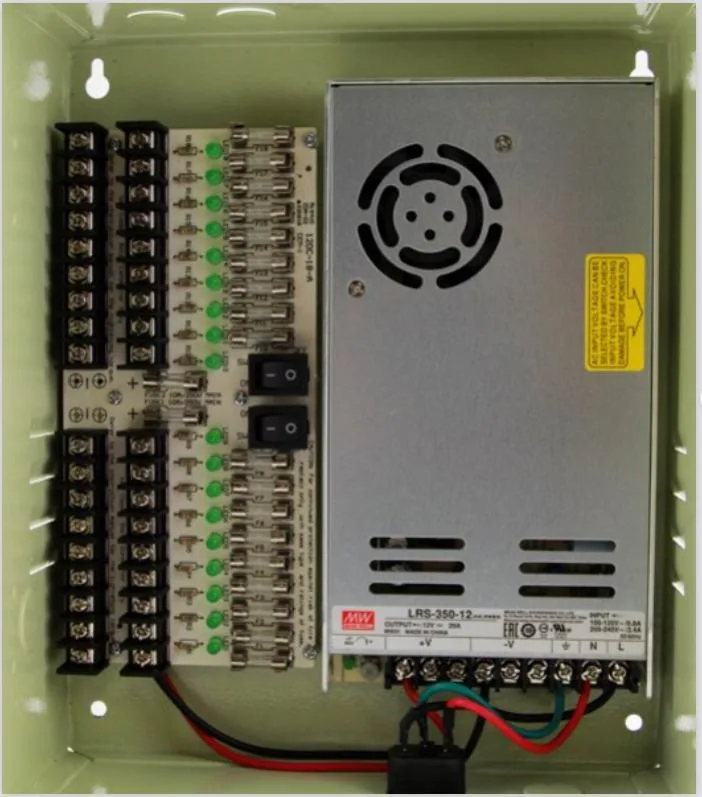

Beige metal enclosure with eighteen screw terminals and green LEDs

CCTV Imports

CCTV Imports 18 Port CCTV Power Box Beige

SKU CH-HP5E-GZFH6

Distributes 12 V DC across 18 fused channels with a 29 A total capacity for up to 18 cameras or devices

  • TypeManagement System
  • Distributes 12 V DC to 18 cameras from one unit
  • 29 A total capacity handles large multi-camera installations
  • Individual fuse on every output protects each camera circuit
  • LED indicator per channel confirms power at a glance
  • UL-listed supply meets recognised safety standards

18-Channel Power Distribution Box

This CCTV Imports power box supplies 12 V DC to up to eighteen cameras or accessories from a single AC source. It accepts 90 V to 132 V input at 50 Hz or 60 Hz and delivers a combined 29 A (348 W) across all channels. The unit is UL listed and ships with a US-standard three-prong power cord for immediate connection.

Individual Fusing and LED Monitoring

Each of the eighteen screw-terminal outputs is protected by its own fuse, so a fault on one camera does not affect the others. A green LED beside every terminal confirms that channel is live, giving the installer instant visual verification during commissioning. When all channels are active the supply distributes 1.61 A per port, with any single channel capable of drawing up to 2 A.

Pre-Installation Checklist

Verify that the site mains voltage falls within the 90 V to 132 V range and that the total camera load will not exceed 29 A. Ensure the mounting location can accommodate the box dimensions and that the supplied power cord reaches an earthed outlet. Confirm each camera requires 12 V DC and that the screw-terminal wire gauge matches your cabling.

Highlights

  • Distributes 12 V DC to 18 cameras from one unit
  • 29 A total capacity handles large multi-camera installations
  • Individual fuse on every output protects each camera circuit
  • LED indicator per channel confirms power at a glance
  • UL-listed supply meets recognised safety standards

Specifications

TypeManagement System

Questions about this item

Will the individual channel fuses need routine replacement after long use?

Each of the 18 outputs has its own fuse for protection; they only need changing if a fault trips one, not on a schedule.

What stops me from drawing full current on every port at once?

The 29 A total limit means all 18 channels together cannot exceed that, so loading every port to its 2 A maximum would surpass the supply rating.

How much heat and fan noise should I expect when the box runs continuously?

The unit has no fan listed, so it relies on passive cooling; sustained loads near the 348 W rating will raise case temperature but produce no mechanical noise.
