Caterpillar

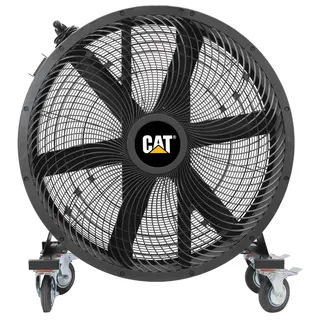

Caterpillar CF-HVD-42DC-BK 42" Drum Fan 25,000 CFM
A 42-inch industrial drum fan moves 25,000 CFM with variable speed control and a DC motor
- TypeDrum Fan
- Fan Blade Size42"
- Speed SettingVariable Speed Control
- Air Delivery CFM25,000 CFM
- Variable speed control matches airflow to the task
- 25,000 CFM moves air across large spaces
- DC motor reduces energy consumption
- 42-inch six-blade design pushes air farther
- Four lockable casters allow easy repositioning
Industrial Air Circulator
The Caterpillar CF-HVD-42DC-BK is a 42-inch drum fan built for workshops, warehouses and job sites that need serious air movement. Its high-velocity DC motor delivers up to 25,000 CFM to cool large spaces or dry wet surfaces quickly.
Heavy-Duty Build and Mobility
A patented grill design pushes air three times farther than traditional units while the six-blade assembly withstands daily industrial use. Four lockable casters let you roll the 44-inch wide frame into position and lock it securely on uneven floors.
Pre-Installation Checks
Verify the site has a grounded 120V 60Hz outlet within reach of the 25-foot cord. Confirm the 23.5-inch depth and 49.5-inch height clear doorways and aisles along the intended path. Ensure the variable-speed rotary dial is accessible at the final operating location.
Highlights
- Variable speed control matches airflow to the task
- 25,000 CFM moves air across large spaces
- DC motor reduces energy consumption
- 42-inch six-blade design pushes air farther
- Four lockable casters allow easy repositioning
Specifications
| Brand | CATERPILLAR |
|---|---|
| Model | CF-HVD-42DC-BK |
| Type | Drum Fan |
| Part Number | CF-HVD-42DC-BK |
| Fan Blade Size | 42" |
| Speed Setting | Variable Speed Control |
| Air Delivery CFM | 25,000 CFM |
| Shipping weight | 72.58 kg |
| Package size | 1143 × 1143 × 457 mm |
Questions about this item
What voltage and frequency does the Caterpillar CF-HVD-42DC-BK require?
It runs on 120V at 60Hz and comes with a 25 foot power cord.
What are the overall dimensions and caster details?
The unit measures 23.5”L x 49.5"H x 44"W and sits on four lockable casters.
How is the variable speed controlled and what motor type is used?
A rotary dial provides full-range speed control for the high-power DC motor.
