Flat 4-pin trailer wiring harness with 69 inch jacketed cable and dust cover

CARROFIX

CARROFIX 4-Way Flat Tow Hitch Wiring Harness 2007-2018 Jeep Wrangler JK 69

SKU CH-96P8-YTEB2

Provides a 4-way flat trailer connector for 2007-2018 Jeep Wrangler JK models with a 69-inch plug-and-play harness

  • Features?4-Way Tow Hitch Wiring Harness
  • FitmentVehicle Fitment
  • Vehicle TypeJeep Wrangler
  • Plug-n-play install with no cutting or splicing required
  • 69-inch fully-jacket cable gives flexible routing to the trailer
  • Powers trailer tail, turn and brake lights via 4-way flat connector
  • Custom fit for 2007-2018 Jeep Wrangler JK models
  • PVC jacket and dust-tight cover resist weather and wear

Jeep Wrangler JK 2007-2018 Fitment

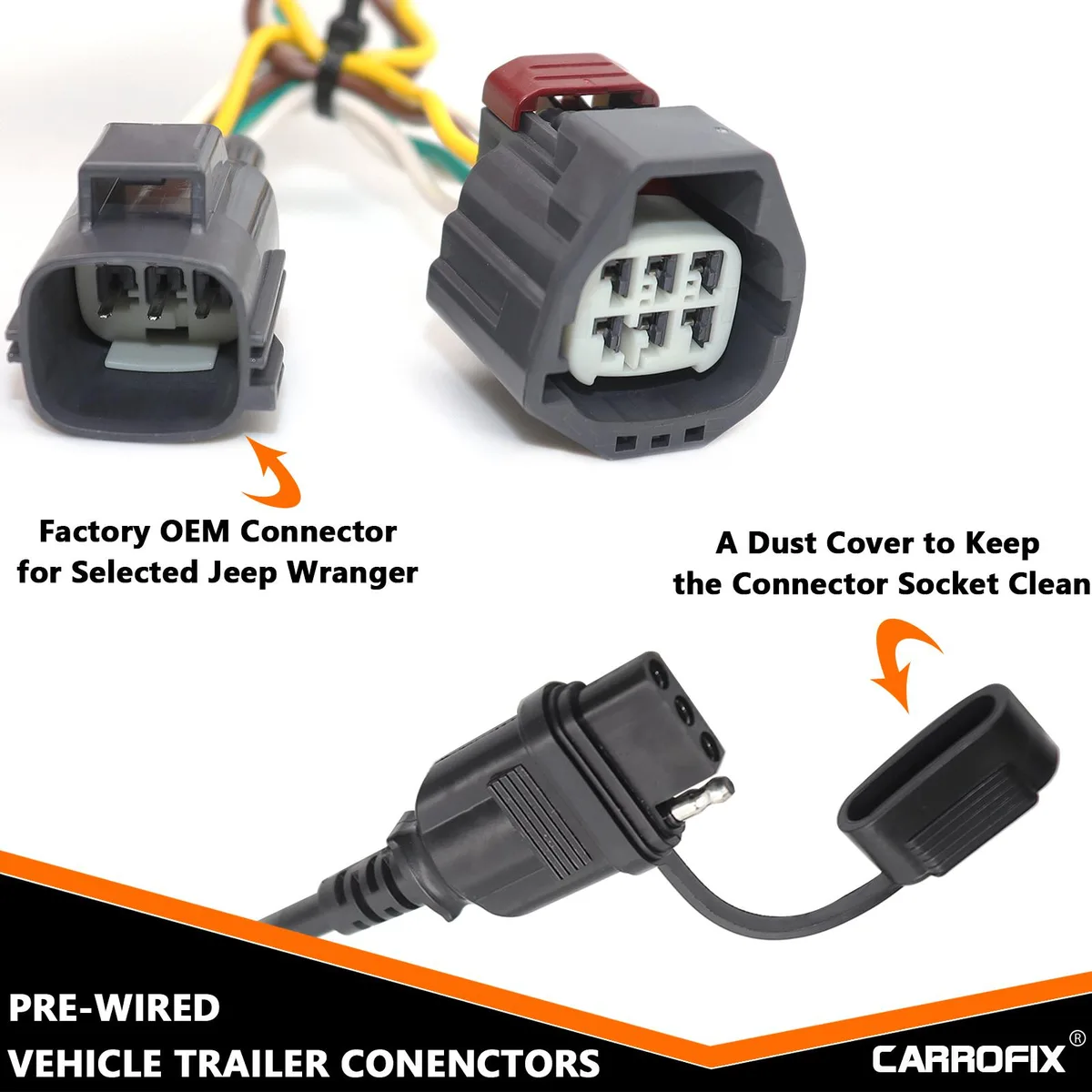

This CARROFIX wiring harness is built specifically for 2007-2018 Jeep Wrangler JK models, including both two-door and four-door Unlimited versions. It adds a 4-way flat trailer connector to the rear of the vehicle so you can power trailer signal lights such as tail, turn, and brake lamps. The custom T-connector design plugs directly into the factory wiring behind the left tail light assembly.

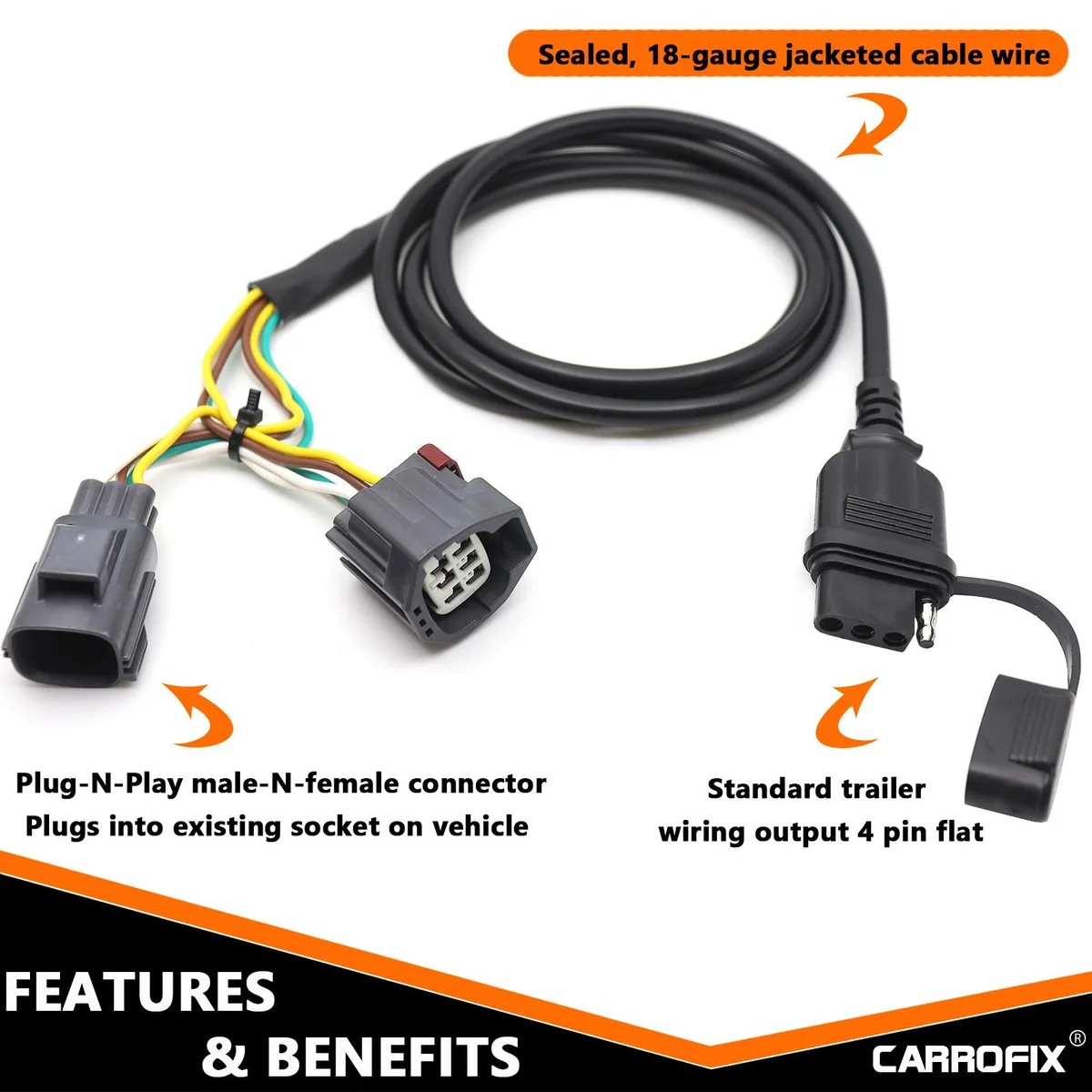

69-Inch Jacketed Cable With Dust Cover

The fully-jacketed cable extends up to 69 inches, giving you flexible routing options to reach various trailer connections. A dust-tight cover protects the 4-pin connector from moisture and debris when not in use, while adjustable clips secure the harness to the trailer bayonet. PVC construction provides weather resistance and wear protection throughout the length of the harness.

Left Tail Light Access Required

Installation requires removing the left tail light assembly to reach the vehicle's factory wiring plug behind it. The T-connector plugs in without cutting or splicing, then the wire routes down through the tail light hole toward the bumper area. Verify that your Wrangler is a JK chassis from the 2007-2018 model years before ordering, as this harness will not fit other generations or vehicle models.

Highlights

  • Plug-n-play install with no cutting or splicing required
  • 69-inch fully-jacket cable gives flexible routing to the trailer
  • Powers trailer tail, turn and brake lights via 4-way flat connector
  • Custom fit for 2007-2018 Jeep Wrangler JK models
  • PVC jacket and dust-tight cover resist weather and wear

Specifications

Brandcarrofix
Model?4-Way Tow Hitch Wiring Harness for Jeep Wrangler JK 2007-2018
Features?4-Way Tow Hitch Wiring Harness
FitmentVehicle Fitment
Vehicle TypeJeep Wrangler

Questions about this item

Will the 4-way flat connector or its dust-tight cover need replacement after extended towing?

The harness uses a PVC-jacketed cable and a dust-tight cover on the 4-pin connector to resist weather and wear; the cover protects the pins when not in use, but the connector itself is a standard 4-way flat that can be swapped if the pins ever corrode or bend.

What limits how long the 69-inch PVC-jacketed cable can run continuously without overheating?

The harness carries only low-current trailer lighting circuits, so the 69-inch fully-jacketed cable does not generate significant heat; the practical limit is the vehicle's own fuse rating for the trailer lighting circuit, not the cable itself.

Does the harness add any audible noise or measurable heat near the tail-light tap after hours of driving with trailer lights on?

The T-connector plugs into the existing wiring behind the left tail light and passes only the signal currents for tail, turn and brake lights, so it produces no audible noise and negligible heat during all-day operation.
