Cameron Sino 2600mAh Battery for Garmin Astro DC20 DC30 DC40

Replacement battery for Garmin Astro dog collars

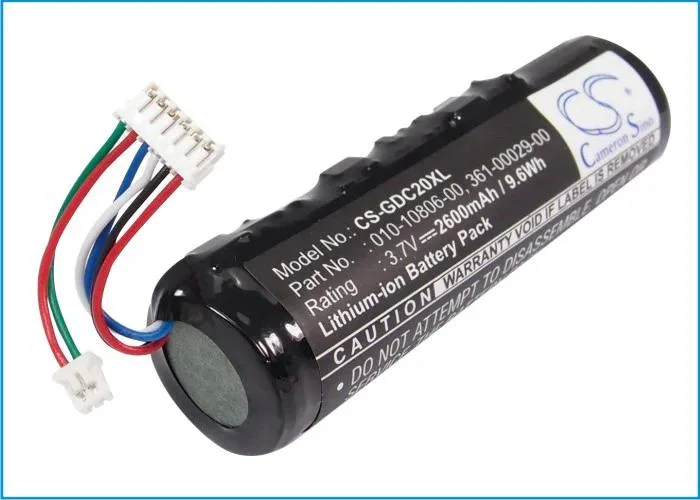

This 2600 mAh lithium-ion cell replaces the original Garmin 010-10806 series pack used in DC20, DC30 and DC40 tracking collars. It delivers 3.7 V and 9.62 Wh in a 66.00 x 1.00 x 18.35 mm form factor weighing 48.0 g. The pack includes a decoded chip and protection against overcharge, over-discharge, over-voltage and short circuit. It is certified to ISO9001, RoHS and CE standards.

Sustained tracking performance

The 2600 mAh capacity supports extended GPS tracking sessions typical for hunting or field work without the voltage sag seen in lower-capacity cells. Protection circuits maintain stable output during continuous transmit cycles, preventing premature shutdown when the collar reports position at regular intervals. A fresh cell reaches full runtime after two or three complete charge and discharge cycles.

Practical limits of the proprietary pack

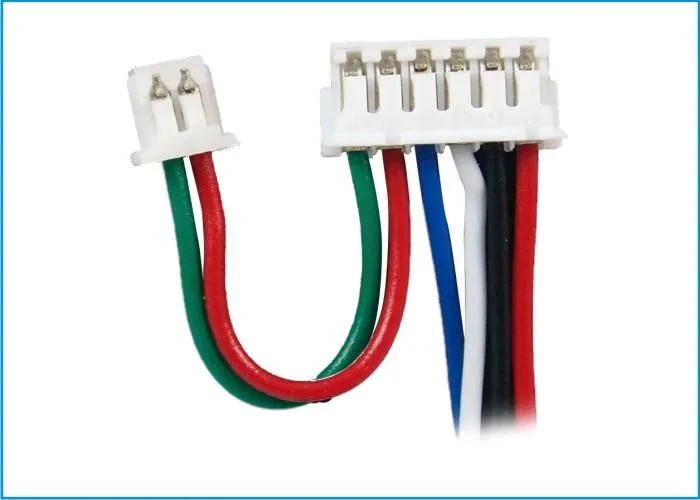

The battery uses a Garmin-specific connector and mechanical keying, so it fits only the listed Astro collar models and cannot be swapped with standard cylindrical cells. Charging must be performed through the collar's own dock or cradle; third-party chargers that do not match the original voltage profile can reduce cycle life. Operating or storage temperatures above 60 °C (140 °F) are outside the safe range.
