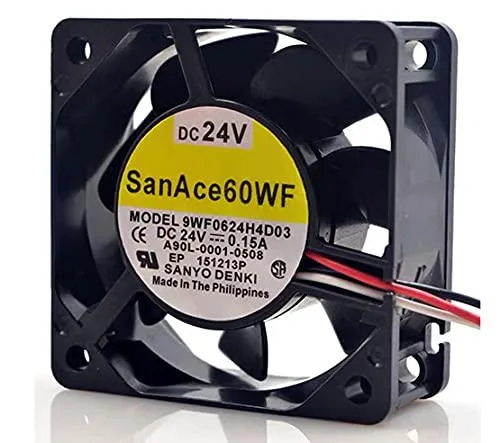

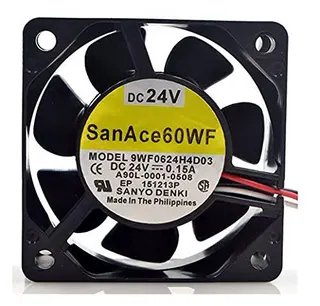

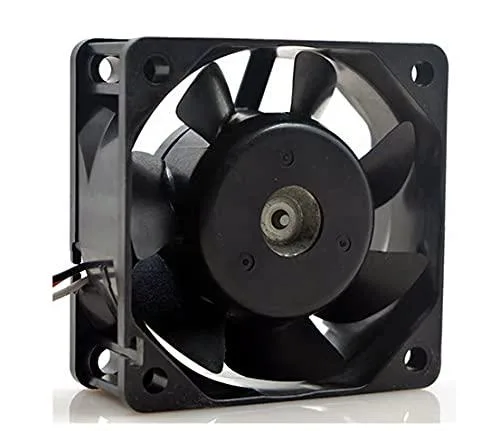

Square black 60mm case fan with three-pin connector and silver hub

CAFELE

CAFELE 9WF0624H4D03 60mm 24V 0.15A 3-pin case fan

SKU CH-WCQB-4CW7K MPN 9WF0624H4D03

A 60mm 24V case fan delivering 51.2CFM airflow at 2800RPM with 33dBA noise

  • TypeCase Fan
  • Fits tight builds with 60×60×25mm frame
  • Runs on standard 24V 3-pin headers
  • Draws only 0.15A for low power load
  • Delivers 51.2CFM airflow at 2800RPM
  • Operates at 33dBA for quiet cooling

Compact 60 mm 24 V case fan

The CAFELE 9WF0624H4D03 is a 60 mm square frame fan designed for 24 V systems. It suits embedded appliances, industrial enclosures or small-form-factor PCs that require a 24 V supply rail.

3-pin connector and 25 mm depth

A three-pin header provides tachometer feedback for speed monitoring without PWM control. The 25 mm thickness fits standard 60 mm mounting holes, allowing drop-in replacement in existing brackets.

2800 RPM airflow and noise ceiling

At 2800 RPM the fan moves 51.2 CFM (1.45 m³/min) while producing 33 dBA. The fixed-speed design limits low-noise tuning, so it is less suited to quiet desktop builds that need variable fan curves.

Highlights

  • Fits tight builds with 60×60×25mm frame
  • Runs on standard 24V 3-pin headers
  • Draws only 0.15A for low power load
  • Delivers 51.2CFM airflow at 2800RPM
  • Operates at 33dBA for quiet cooling

Specifications

TypeCase Fan

Questions about this item

What does the 3-pin connector limit for the 24V 0.15A fan?

The 3-pin connector supplies fixed 24V power, so the fan runs at its rated 2800 RPM without PWM speed control.

Will the 60×60×25 mm frame fit a standard 60 mm fan mount?

Yes, the 60 mm square footprint and 25 mm thickness match the common 60 mm mounting pattern used in cases and equipment.

How do I connect the three wires, and which mistake should I avoid?

Match the three pins to the header — power, ground and tach signal — and do not force a 4-pin PWM header onto this 3-pin plug.
