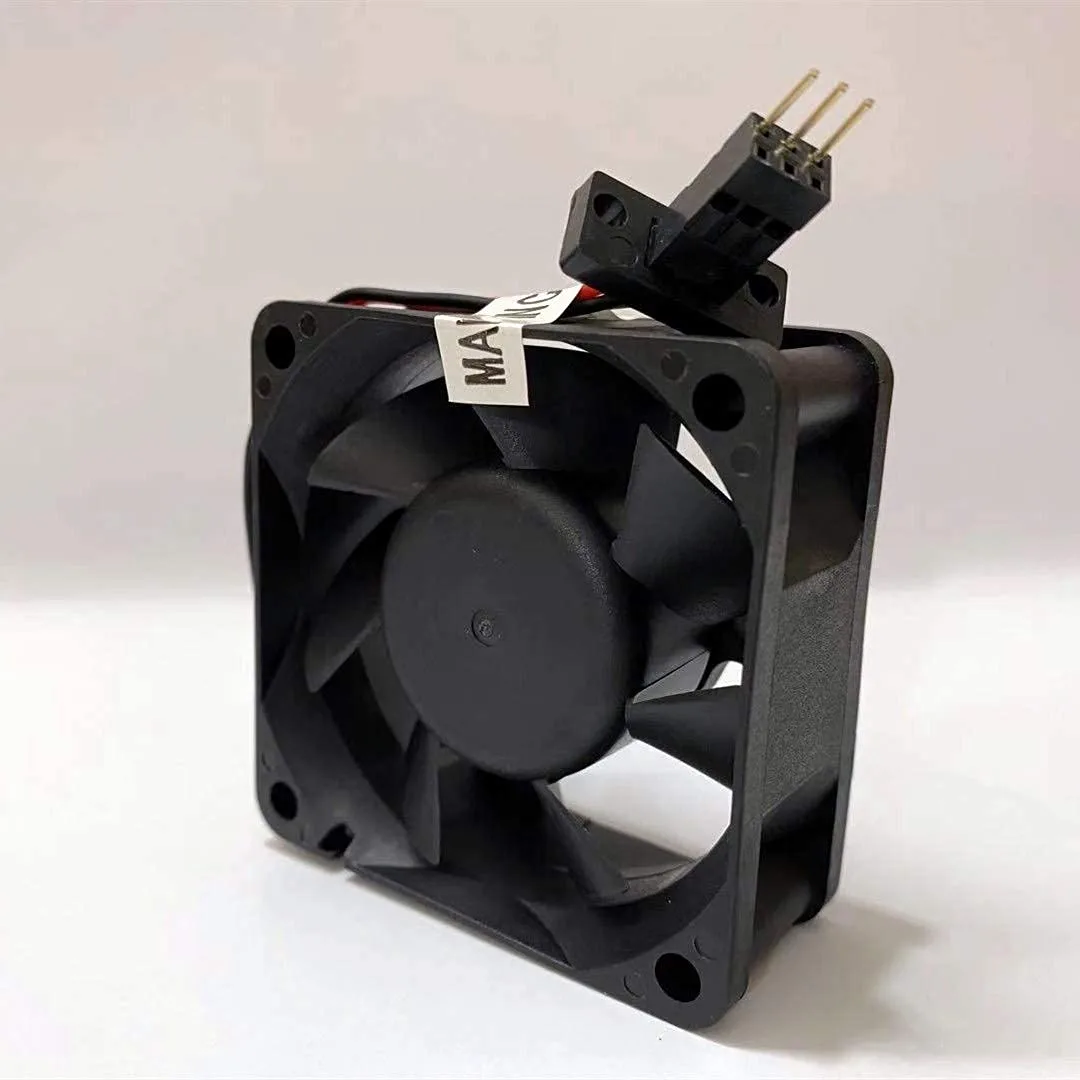

Square black 60mm case fan with 3-pin connector

CAFELE

CAFELE 9WF0624H4D03 24V 0.15A 60×60×25mm case fan

SKU CH-ETXK-2GE65 MPN 9WF0624H4D03

A 60×60×25 mm case fan running at 24 V and 0.15 A with a 3-pin Fanuc connector, 2800 RPM, 51.2 CFM airflow and 33 dBA noise

  • TypeCase Fan
  • 60×60×25 mm footprint fits tight chassis spaces
  • 24 V 0.15 A draw keeps power load low
  • 2800 RPM delivers 51.2 CFM airflow
  • 33 dBA noise level runs quietly
  • Fanuc 3-pin connector matches original equipment

Compact 60 mm industrial case fan

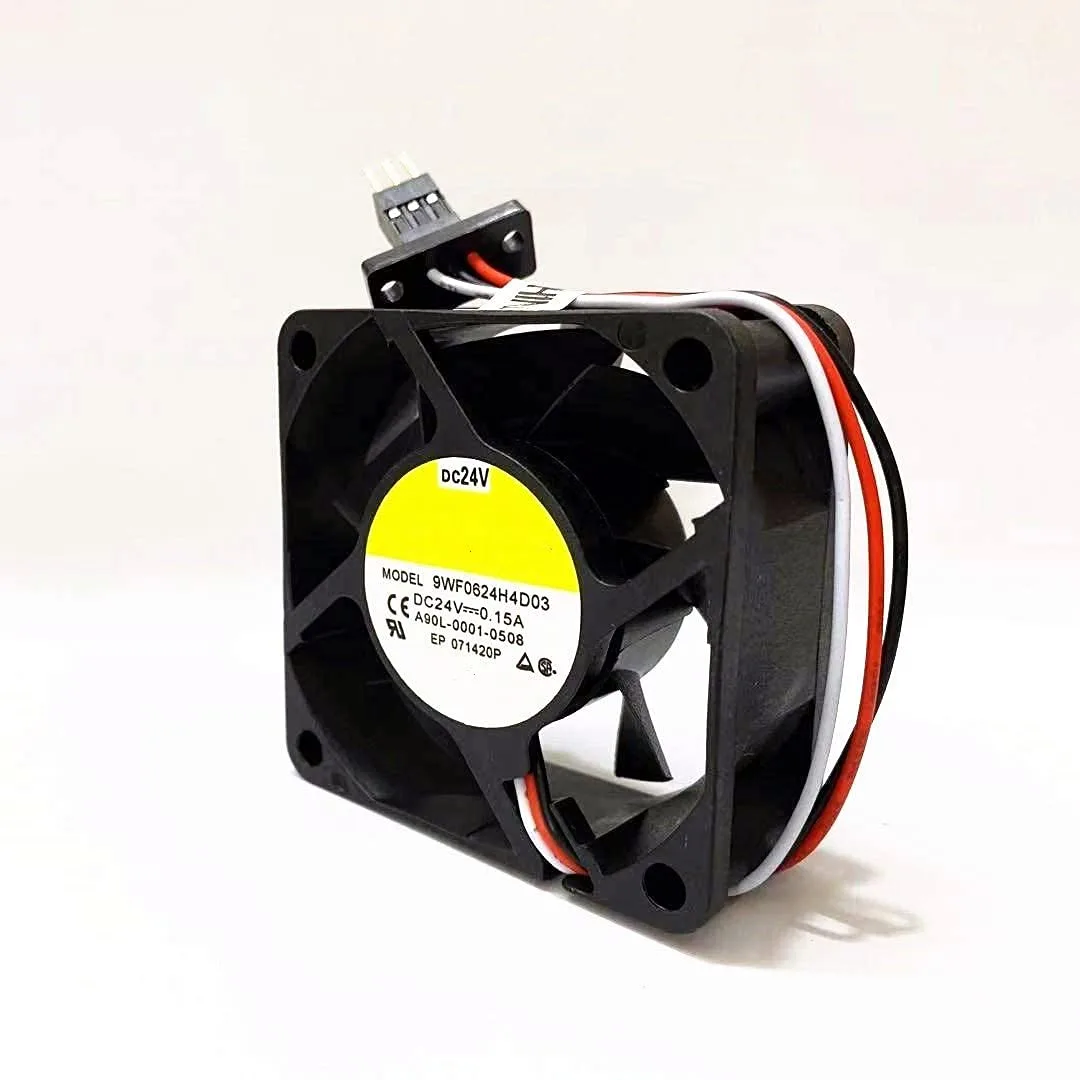

The CAFELE 9WF0624H4D03 is a 60×60×25 mm San Ace 60WF cooling fan built for 24 V DC systems. It draws 0.15 A and spins at 2800 RPM ±5 %, delivering 51.2 CFM (1.45 m³/min) at 33 dBA. The unit targets technicians maintaining Fanuc equipment or similar 24 V industrial chassis.

Fanuc 3-pin dedicated interface

The bundled Fanuc 3-pin connector replaces the original A90L-0001-0508 plug without adapters. This direct fit restores the exact pin-out and voltage sense the controller expects, eliminating signal errors that generic headers cause. No extra cables or PWM circuitry are included in the package.

Straightforward drop-in replacement

Mounting holes match the 60 mm square pattern so the fan bolts into existing cut-outs. The 25 mm thickness clears standard Fanuc ducts, but verify depth before ordering. The only common issue is reversing the three pins; the keyed housing prevents this if the connector is fully seated.

Highlights

  • 60×60×25 mm footprint fits tight chassis spaces
  • 24 V 0.15 A draw keeps power load low
  • 2800 RPM delivers 51.2 CFM airflow
  • 33 dBA noise level runs quietly
  • Fanuc 3-pin connector matches original equipment

Specifications

TypeCase Fan

Questions about this item

Will the 3-pin connector need replacement or the bearings need servicing later?

The fan uses a dedicated Fanuc 3-pin interface and sleeve bearings; no connector replacement is expected, and bearing service is not user-serviceable.

At 2800 RPM, what limit appears first during continuous operation?

The 33 dBA acoustic ceiling is reached immediately at the rated 2800 RPM, so noise is the first sustained-use boundary.

How much noise and heat does the 0.15 A, 24 V fan add when running all day?

It runs at a constant 33 dBA and draws 0.15 A at 24 V, adding minimal thermal load to the enclosure.
