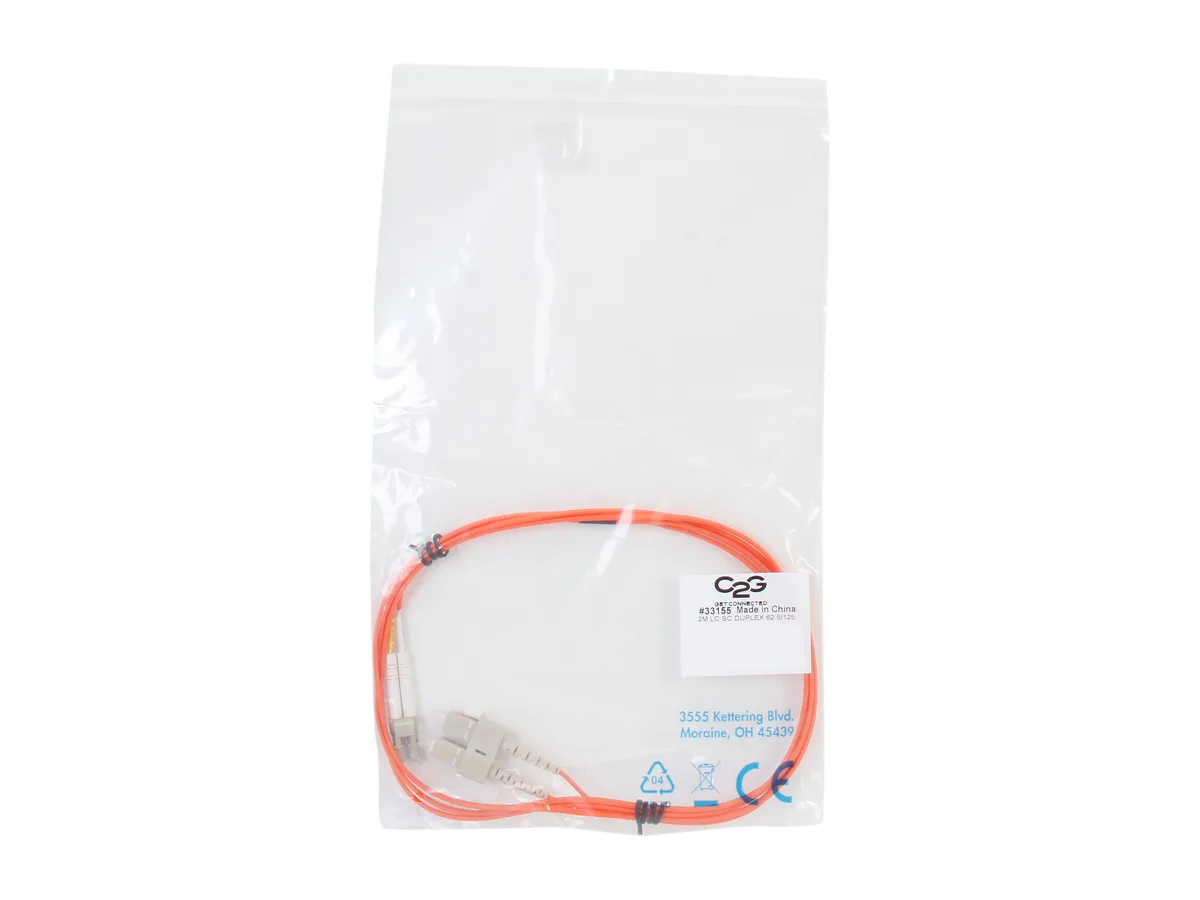

Orange duplex multimode fibre patch cable with two LC and two SC male connectors

Cables To Go

Cables To Go 33155 6.56 ft LC/SC Duplex 62.5/125 Multimode Fibre Optic Cable Orange

SKU CH-4NGV-DRXHS MPN 33155

6.56 ft orange OM1 duplex patch cable with two LC and two SC male connectors for fast Ethernet, fibre channel and gigabit Ethernet links

  • TypeCable Connectors
  • ColorOrange
  • Length0.5 ft.
  • Connector Number4
  • Connector Detail2 x LC to 2 x SC
  • Terminal GenderMale to Male
  • OM1 multimode supports fast Ethernet and gigabit links at 850/1300 nm
  • LC/SC duplex connectors enable direct patching between different equipment ports
  • PVC OFNR jacket meets riser fire-safety requirements for in-wall runs
  • 30 dB typical loss preserves signal strength across the 6.56 ft span
  • 0 cm loaded bend radius allows tight routing without performance loss

2m LC/SC OM1 Duplex Patch Cable

This 6.56 ft orange multimode fibre patch cable uses OM1 62.5/125 µm fibre with LC and SC male connectors. It is built for fast Ethernet, fibre channel, ATM and gigabit Ethernet links in enterprise or campus networks. The PVC riser-rated jacket meets OFNR fire requirements for indoor vertical runs.

Upgrade from Simplex or Lower-Grade Jumpers

Replacing a simplex lead or a cable with higher insertion loss reduces the number of connections and improves link budget. The jump is worth it when a duplex run is needed between LC and SC ports and the 0.30 dB typical connector loss fits the power margin of the installed transceivers.

OM1 Bandwidth and Distance Limits

OM1 fibre supports 200/500 MHz.km OFL bandwidth at 850/1300 nm, which restricts gigabit Ethernet to shorter reaches than OM3 or OM4 grades. Attenuation of 1.0 dB/km at 1300 nm and the 0.50 dB maximum connector loss further constrain the total channel length available for a given power budget.

Highlights

  • OM1 multimode supports fast Ethernet and gigabit links at 850/1300 nm
  • LC/SC duplex connectors enable direct patching between different equipment ports
  • PVC OFNR jacket meets riser fire-safety requirements for in-wall runs
  • 30 dB typical loss preserves signal strength across the 6.56 ft span
  • 0 cm loaded bend radius allows tight routing without performance loss

Specifications

BrandC2G
Model33155
TypeCable Connectors
ColorOrange
Length0.5 ft.
Connector Number4
Connector Detail2 x LC to 2 x SC
Terminal GenderMale to Male
SpecificationsOptical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm.
LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)
SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip)
Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Buffer Material: PVC
Buffer OD: 900 µm
Jacket Material: PVC (OFNR riser-rated)
Jacket OD: 1.8 mm
Installation Tensile Load: 100 N (445 lbs)
Long-Term Tensile Load: 50 N (222 lbs)
Maximum Tensile Load: 100 N/cm
Installation (Loade
FeaturesWith LC to SC termination, this high-quality fiber optic patch cable is specifically designed for fast Ethernet, fiber channel, ATM and gigabit Ethernet applications.
The small LC connectors satisfy the need for higher port density both in the telecom room and the work area, and offer twice the port density of traditional SC and ST fiber connectors.
The LC connector with its RJ-style latch clip design is easy to engage and disengage, and gives each connection with greater durability in resisting pulls, strains, snags, and impacts during cabling installs and maintenance.
The SC connec
Shipping weight0.03 kg
Package size146 × 133 × 6 mm

Questions about this item

What are the LC and SC connector dimensions so I can verify panel clearance?

The LC connector measures 10.75mm height, 12.5mm width and 50mm depth with the duplex clip installed. The SC connector measures 10.6mm height, 26mm width and 58mm depth with the duplex clip installed.

What is the minimum bend radius I must respect during installation to avoid damaging the cable?

The installation (loaded) minimum bend radius is 5.0cm (1.97in). For long-term unloaded routing, the minimum bend radius is 3.0cm (1.2in). Exceeding these radii can increase attenuation or break the fibre.

When should I plan to re-polish or replace the connectors based on mating cycles?

The cable is rated for 1,000 impact resistance cycles and 5,000 flex resistance cycles. If insertion loss approaches the maximum connector loss of 0.50 dB or return loss degrades beyond -25 dB, re-termination or replacement is recommended.
