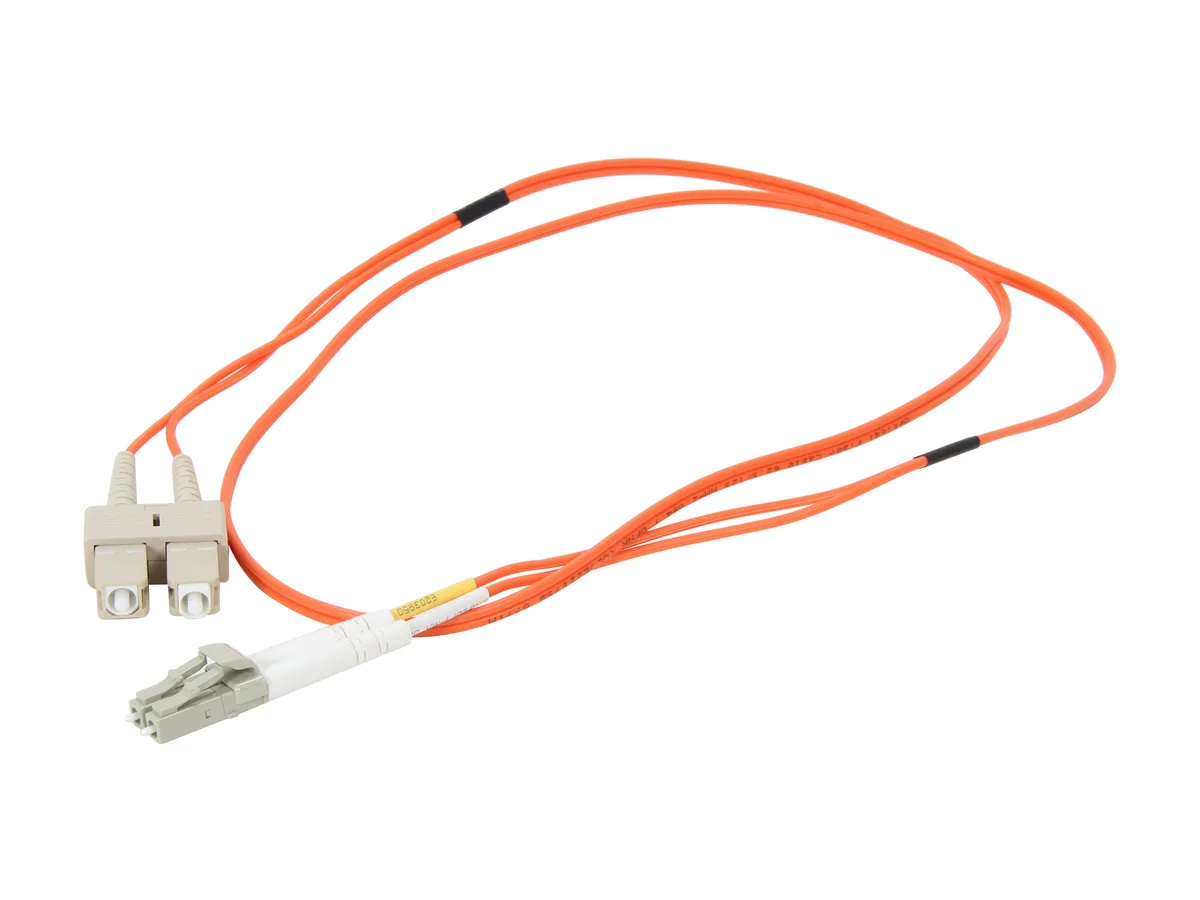

Orange duplex fibre patch cable with two LC and two SC connectors, 3.3 ft

Cables To Go

Cables To Go 33154 OM1 fibre optic cable LC-SC 62.5/125 duplex multimode PVC orange 3.3 ft 1 m

SKU CH-B4E3-3QV83 MPN 33154

A 1 metre orange duplex multimode patch cable with LC and SC connectors for 62.5/125 µm fibre networks

  • TypeCable Connectors
  • ColorOrange
  • Length0.5 ft.
  • Connector Number4
  • Connector DetailConnector A: 2 x LC Male Connector B: 2 x SC Male
  • SpecificationsOptical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OF
  • OM1 multimode supports fast Ethernet and gigabit links
  • LC-SC duplex connectors connect 62.5/125 µm fibre equipment
  • Orange PVC jacket identifies OM1 cable at a glance
  • 3 ft length suits short patch panel runs
  • 200/500 MHz.km bandwidth at 850/1300 nm enables reliable data transfer

1 m OM1 duplex patch cable

This 3.3 ft orange cable uses 62.5/125 µm multimode fibre rated for 200/500 MHz.km at 850/1300 nm. It terminates with two LC male connectors on one end and two SC male connectors on the other. The assembly is built for fast ethernet, fibre channel, ATM and gigabit ethernet links.

LC-SC connectivity for patch panels

The duplex LC ends plug directly into high-density transceivers or switch ports while the SC ends mate with standard bulkhead adapters. Each connector includes an installed duplex clip so polarity stays consistent during moves. The PVC jacket protects the fibres in indoor rack or wall-box runs.

Factory-polished ferrules reduce insertion loss

Pre-terminated ends eliminate field polishing and epoxy work, cutting installation time and avoiding contamination. The 10.75 mm LC and 10.6 mm SC housings fit side-by-side in dense patch panels without blocking adjacent ports. Ready for immediate use in campus, data-centre or enterprise LAN segments.

Highlights

  • OM1 multimode supports fast Ethernet and gigabit links
  • LC-SC duplex connectors connect 62.5/125 µm fibre equipment
  • Orange PVC jacket identifies OM1 cable at a glance
  • 3 ft length suits short patch panel runs
  • 200/500 MHz.km bandwidth at 850/1300 nm enables reliable data transfer

Specifications

BrandCables To Go
Model33154
TypeCable Connectors
ColorOrange
Length0.5 ft.
Connector Number4
Connector DetailConnector A: 2 x LC Male
Connector B: 2 x SC Male
SpecificationsOptical Multimode 1 (OM1) fiber supporting 200/500 MHz.km OFL at 850/1300 nm.
LC Connector Dimensions: 10.75mm Height x 12.5mm Width x 50mm Depth (with installed duplex clip)
SC Connector Dimensions: 10.6mm Height x 26mm Width x 58mm Depth (with installed duplex clip)
Maximum Connector Loss: 0.50 dB
Typical Connector Loss: 0.30 dB
Typical Return Loss: -25 dB
Buffer Material: PVC
Buffer OD: 900 um
Jacket Material: PVC (OFNR riser-rated)
Jacket OD: 1.8 mm
Installation Tensile Load: 100 N (445 lbs)
Long-Term Tensile Load: 50 N (222 lbs)
Maximum Tensile Load: 100 N/cm
Installation (Loade
FeaturesWith LC to SC termination, this high-quality fiber optic patch cable is specifically designed for fast ethernet, fibre channel, ATM and gigabit ethernet applications. The small LC connectors satisfy the need for higher port density both in the telecom room and the work area, and offer twice the port density of traditional SC and ST fiber connectors. The LC connector with its RJ-style latch clip design is easy to engage and disengage, and gives each connection greater durability in resisting pulls, strains, snags, and impacts during cabling installs and maintenance. The SC connector f
Shipping weight0.02 kg
Package size152 × 114 × 25 mm

Questions about this item

What is the maximum bandwidth-distance product for this OM1 cable at 850 nm?

The OM1 multimode fiber supports 200 MHz.km OFL at 850 nm, which defines the bandwidth-distance limit for sustained high-speed links.

How much heat does the cable generate during continuous gigabit ethernet use?

Passive fiber optic cables produce no measurable heat; the glass core and PVC jacket remain at ambient temperature even under full duplex load.

Which patch panels or transceivers must I already have to connect this LC-SC duplex cable?

You need equipment with duplex LC ports on one side and duplex SC ports on the other, both keyed for 62.5/125 µm multimode fiber.
