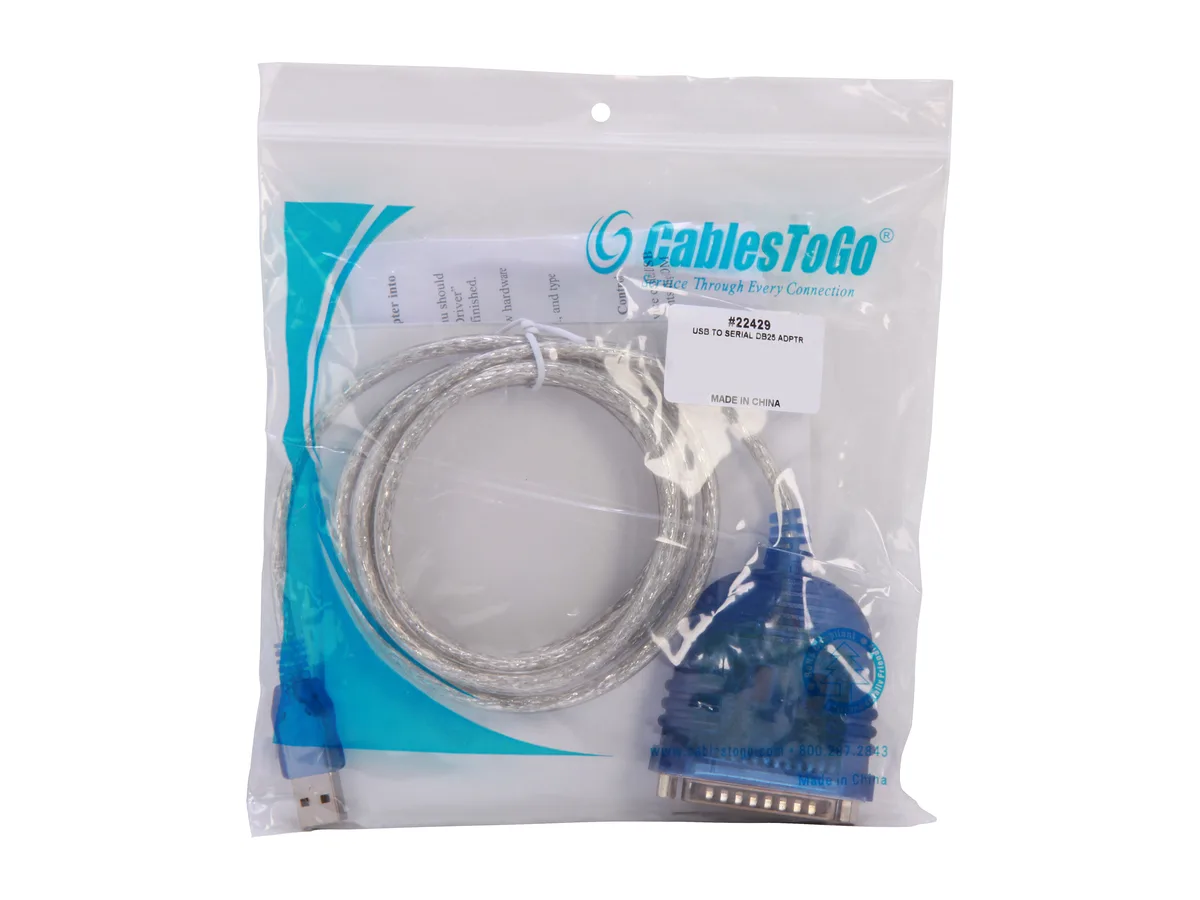

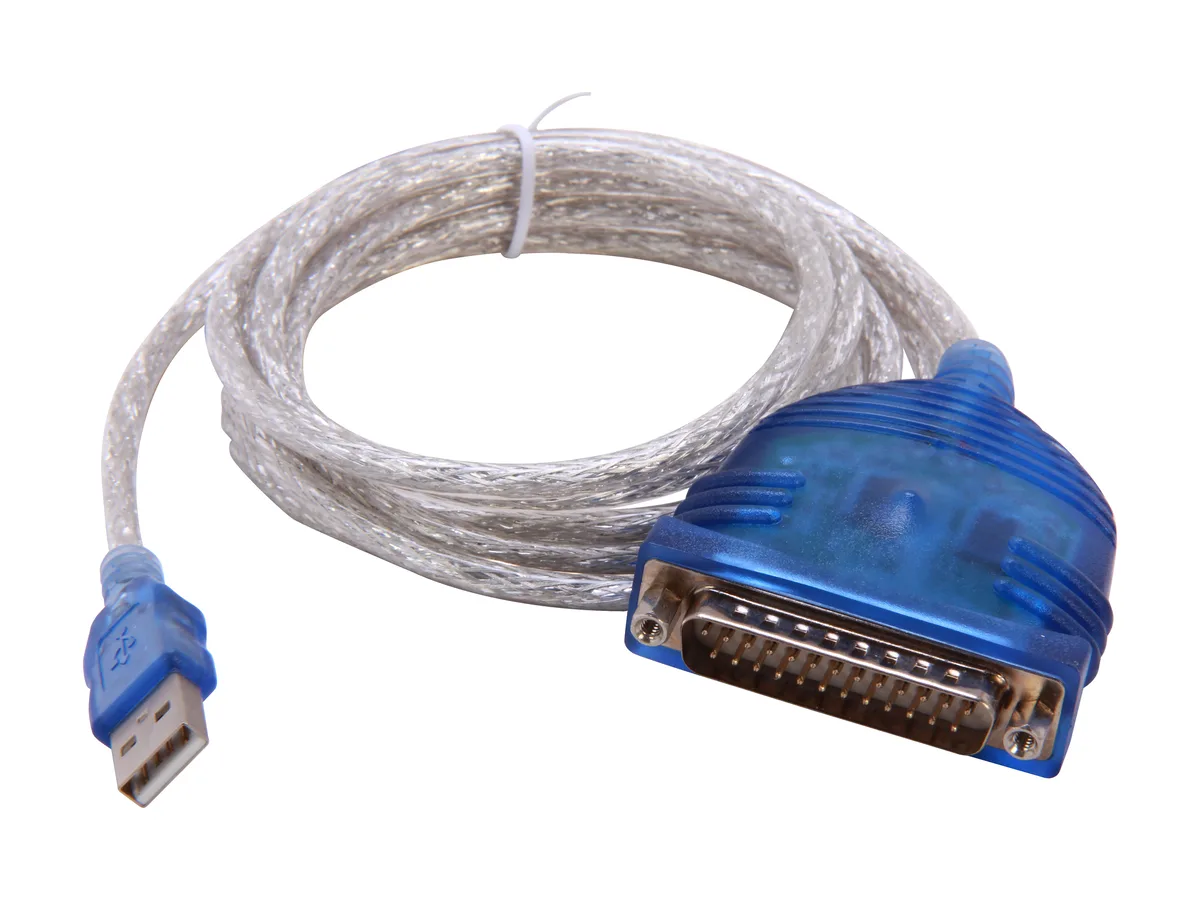

Grey 6 ft USB Type A to DB25 serial adapter cable

Cables To Go

Cables To Go 22429 USB to DB25 Serial RS232 Adapter Cable 6 ft

SKU CH-P4N5-PC3EA MPN 22429

Connects a USB port to a DB25 serial device at up to 115.2K speed over 6 ft

  • TypeCable Connectors
  • ColorGrey
  • Length0.5 ft.
  • Connector Number2
  • Connector DetailConnector 1: USB Type A Male Connector 2: DB25 Male
  • FeaturesCable Length: 6 ftConnector on First End: 1 x 4-pin Type A M
  • Connect legacy serial gear via modern USB Type-A
  • 6 ft cable gives flexible desk placement
  • 2 Kbps transfer keeps modems and scanners responsive
  • No IRQs consumed so multiple adapters coexist
  • DB25 male connector fits industrial and POS equipment

What this cable does

The Cables To Go 22429 adapter cable connects a USB Type A port to a DB25 male RS-232 serial port. It lets a modern computer talk to legacy serial equipment such as modems, barcode readers, POS terminals, security devices and cameras. The link supports data rates up to 115.2 K without consuming an IRQ, so several adapters can run at once.

Build and connectors

A grey 6 ft (1.82 m) cable carries a 4-pin USB 1.1 Type A male plug on one end and a 25-pin DB25 male connector on the other. The USB 1.1 interface keeps the design simple and driver-friendly, while the DB25 shell provides the familiar screw-down mounting used by industrial serial gear. No external power is needed.

Before you buy

Confirm that the target device expects a DB25 male RS-232 interface and not a DB25 parallel or other pin-out. Check that your operating system supplies a driver for a USB 1.1 serial bridge; most current systems include one, but specialised or older OS releases may need a manual install. Verify the 6 ft reach suits the equipment layout.

Highlights

  • Connect legacy serial gear via modern USB Type-A
  • 6 ft cable gives flexible desk placement
  • 2 Kbps transfer keeps modems and scanners responsive
  • No IRQs consumed so multiple adapters coexist
  • DB25 male connector fits industrial and POS equipment

Specifications

BrandC2G
Model22429
TypeCable Connectors
ColorGrey
Length0.5 ft.
Connector Number2
Connector DetailConnector 1: USB Type A Male
Connector 2: DB25 Male
FeaturesCable Length: 6 ftConnector on First End: 1 x 4-pin Type A Male USB 1.1 USBConnector on Second End: 1 x 25-pin DB-25 Male RS-232 SerialDevice Supported: Network Device,Modem,Camera,Bar Code Reader,Security Device,POS Device,PDAColor: GrayWeight (Approximate): 16.3 gGreen Compliant: YesGreen Compliance Certificate/Authority: RoHSLimited Warranty: 1 Year
Windows VistaThis adapter cable enables high speed serial data transfer up to 115.2 K between the USB and the traditional RS-232 serial port. Since this adapter uses no IRQs, it is ideal for when you need many serial devices attached to your PC. Just connect your computer's or hub's USB port with a digital camera, modem, ISDN-TA modem, barcode reader, Palm III and V, tablet, label writer, fingerprint verification, security system, POS equipment or any of your favorite serial devices.
This product creates a virtual serial port. It is not intended to connect a parallel printer/device to a USB port.
Shipping weight0.02 kg
Package size229 × 152 × 51 mm

Questions about this item

What is the maximum serial transfer rate the USB 1.1 to DB25 RS-232 adapter supports?

The adapter enables high-speed serial data transfer up to 115.2 K between the USB and the traditional RS-232 serial port.

What are the exact connector types on each end of the 6 ft cable?

Connector 1 is a 4-pin USB Type A Male; Connector 2 is a 25-pin DB-25 Male RS-232 Serial.

Does the adapter require an IRQ or driver installation on Windows Vista?

It uses no IRQs and installs as a standard COM port; the driver loads automatically when the USB Type A Male is plugged in.
