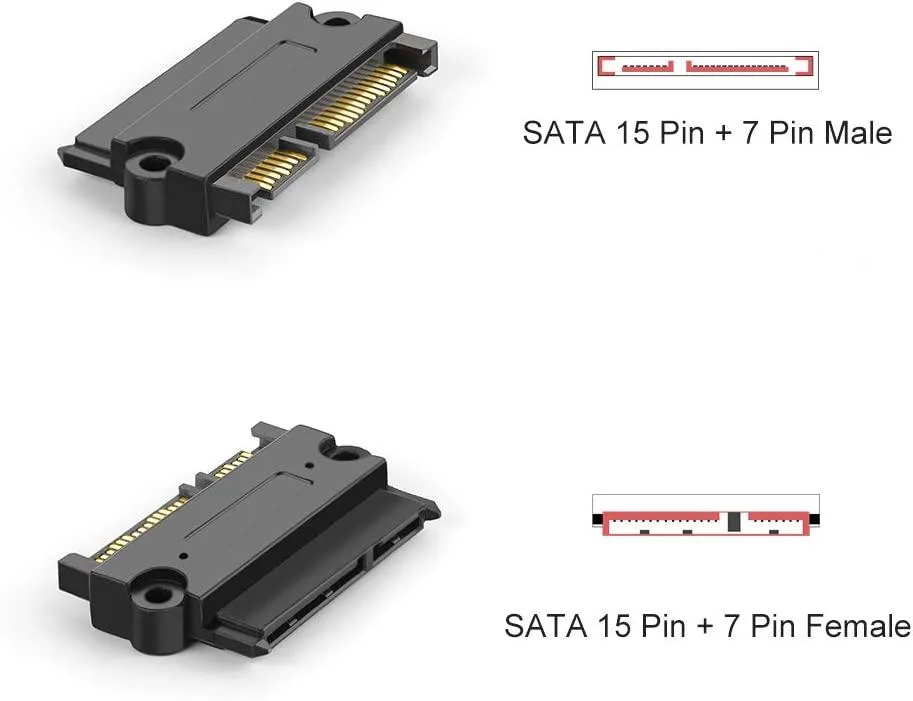

Black SATA 22-pin male-to-female adapter with gold-plated contacts and screw holes

CableCreation

CableCreation SATA 22 Pin Male to Female Adapter Black

SKU CH-BKJS-FKWPR

A SATA 22-pin male-to-female adapter supporting up to 6 Gbps, designed to protect 2.5" and 3.5" drive ports with gold-plated contacts and screw holes for secure mounting

  • Protects original drive ports with 22-pin SATA extension
  • Supports up to 6 Gbps data transfer for fast performance
  • Gold-plated copper contacts ensure reliable signal and power delivery
  • Low-profile design with screw holes for secure, space-saving installation
  • Compatible with 2.5" and 3.5" drives plus select 1.8" SSDs

22 Pin SATA Adapter for Drive Protection

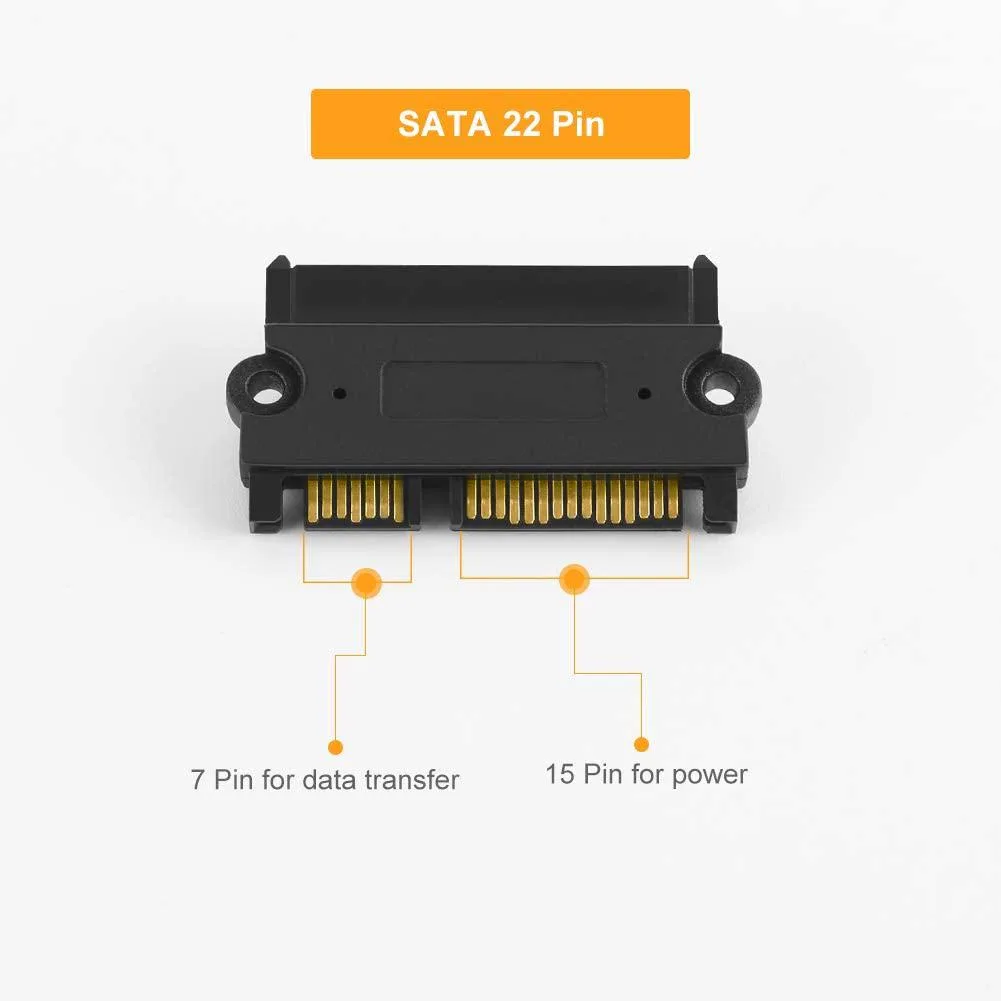

This 22 pin SATA male to female adapter connects between a 2.5 inch or 3.5 inch drive and the host cable. It shields the original drive port from repeated insertion wear. The adapter supports data rates up to 6 Gbps across the combined 15 pin power and 7 pin data interface. It suits HDDs, SSDs and some 1.8 inch SSDs plus optical drives.

Check Drive Connector and Clearance Before Ordering

Verify that your drive uses a standard 22 pin SATA connector with 15 pin power and 7 pin data arrangement. This adapter is not a SAS to SATA converter and will not fit SAS drives. Confirm there is enough space around the drive port for the low profile moulded body and screw hole brackets. External power must be supplied to the drive when the adapter is in use.

Gold Plated Pins and Screw Holes Improve Reliability

Gold plated copper contacts reduce contact resistance and resist oxidation over time. The PVC moulded housing adds strain relief for the cable connection. Integrated screw holes let you secure the adapter to the drive or chassis preventing accidental disconnection. The package includes one black adapter unit backed by 24 months warranty and lifetime technical support.

Highlights

  • Protects original drive ports with 22-pin SATA extension
  • Supports up to 6 Gbps data transfer for fast performance
  • Gold-plated copper contacts ensure reliable signal and power delivery
  • Low-profile design with screw holes for secure, space-saving installation
  • Compatible with 2.5" and 3.5" drives plus select 1.8" SSDs

Specifications

No published specifications for this item yet.

Questions about this item

What comes in the box and do I need any extra cables or power supplies?

The package contains one SATA 22 Pin Male to Female adapter. You will still need a standard SATA data cable and a SATA power cable from your system to connect the drive.

How do I know if this 22-pin adapter fits my 2.5″ SSD or 3.5″ HDD?

The adapter carries a 22-pin (7 data + 15 power) SATA interface, matching the native connector on 2.5″ drives and the data/power header on 3.5″ drives; it also supports some 1.8″ SSDs and optical drives.

What does the 6 Gbps rating mean when the adapter is installed in my PC?

It supports the SATA III 6 Gbps maximum signalling rate, so a connected SSD or HDD can run at its full SATA III speed without the adapter becoming a bottleneck.
