CableCreation Mini SAS SFF-8643 to four SATA angle cable 1M 3.3FT

CableCreation

CableCreation Mini SAS SFF-8643 to 4x SATA angle cable 1M 3.3FT

SKU CH-WZ9P-90HW1

Connects a Mini SAS SFF-8643 host port to four SATA drives with a 90-degree design for tight spaces

  • Connects RAID controller to four SATA drives via Mini SAS SFF-8643 host interface
  • Angled 90-degree connectors improve cable routing inside compact chassis
  • Supports 12 Gb/s SAS throughput for high-speed storage access
  • 3 ft length suits typical server and workstation layouts
  • Hybrid SFF-8643 design enables smooth migration from 6 Gb to 12 Gb speeds

Mini SAS SFF-8643 breakout cable

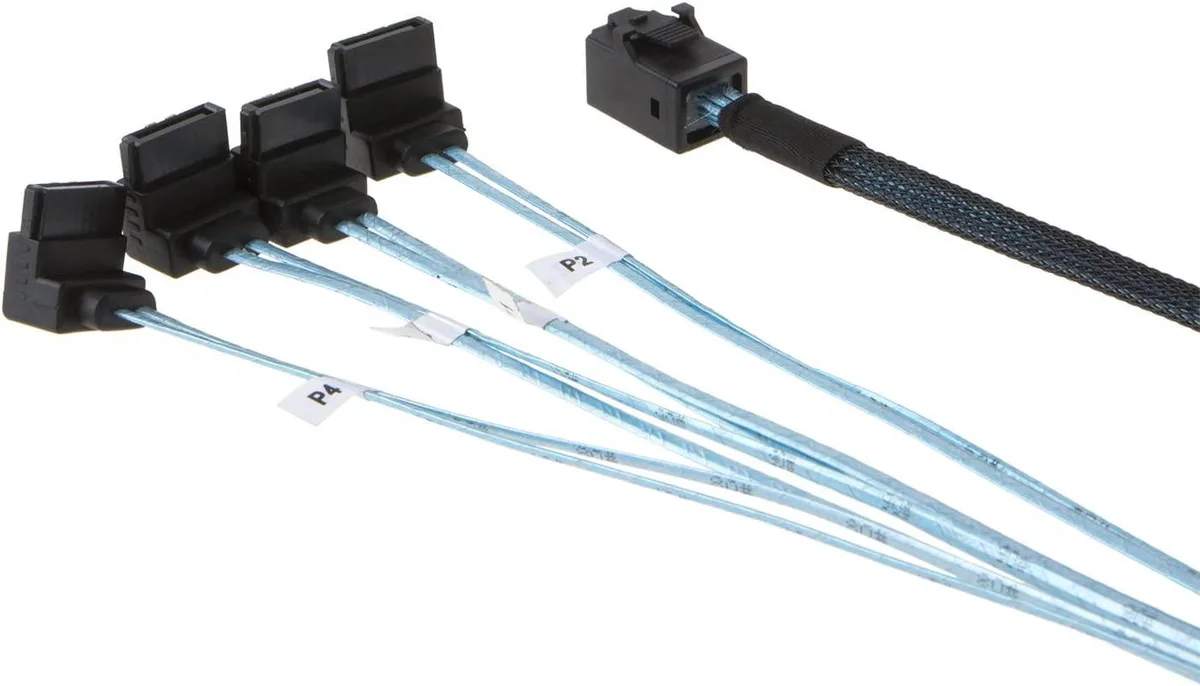

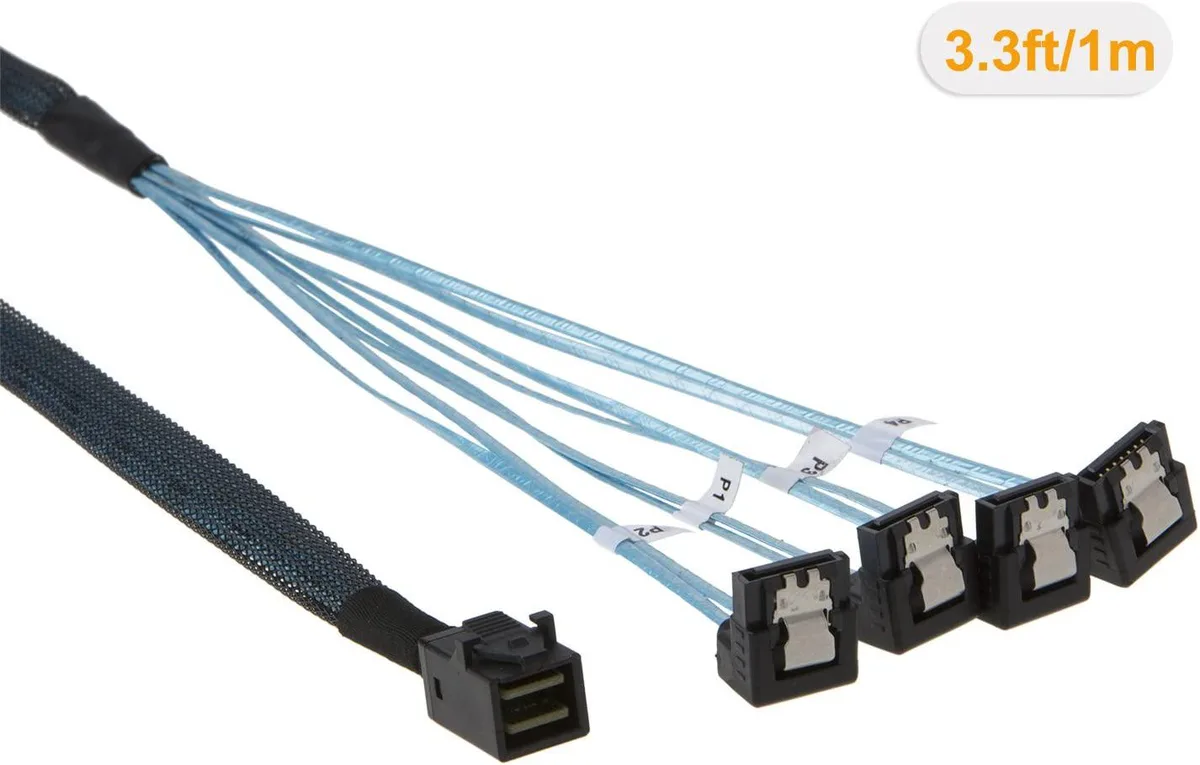

This internal cable connects a host controller or motherboard Mini SAS SFF-8643 port to four SATA hard drives. It is intended for builders adding multiple drives to a RAID controller or HBA with a single high-density connector. The 90-degree SATA plugs help routing in tight drive cages. It supports SAS interfaces up to 12 Gb/s.

Replaces four separate SATA-to-SATA leads

A single SFF-8643 link carries four lanes, reducing clutter and PCB space compared with individual cables. The upgrade is worthwhile when your controller exposes Mini SAS ports and you need to fan out to standard SATA targets. This cable will not work if the SFF-8643 port sits on a backplane rather than the host side.

Simple press-fit installation

Push the SFF-8643 end into the controller until it clicks, then seat each 90-degree SATA connector onto the drives. The angled heads can snag adjacent cables if the drive bays are very dense; check clearance before routing. No drivers or configuration are required beyond the controller BIOS.

Highlights

  • Connects RAID controller to four SATA drives via Mini SAS SFF-8643 host interface
  • Angled 90-degree connectors improve cable routing inside compact chassis
  • Supports 12 Gb/s SAS throughput for high-speed storage access
  • 3 ft length suits typical server and workstation layouts
  • Hybrid SFF-8643 design enables smooth migration from 6 Gb to 12 Gb speeds

Specifications

No published specifications for this item yet.

Questions about this item

What clearance does the 90-degree SFF-8643 connector need?

The right-angle SFF-8643 plug bends toward the cable body, so allow roughly the connector depth behind the motherboard or RAID controller port for the bend radius.

Which end plugs in first during installation?

Connect the SFF-8643 host end to the controller or motherboard first, then attach each 7-pin SATA target connector to the drives; reversing the order can stress the latch.

When should the cable be replaced?

Replace it if the SFF-8643 latch no longer clicks, any SATA plug feels loose, or the jacket shows kinks or exposed conductors after repeated rerouting.
