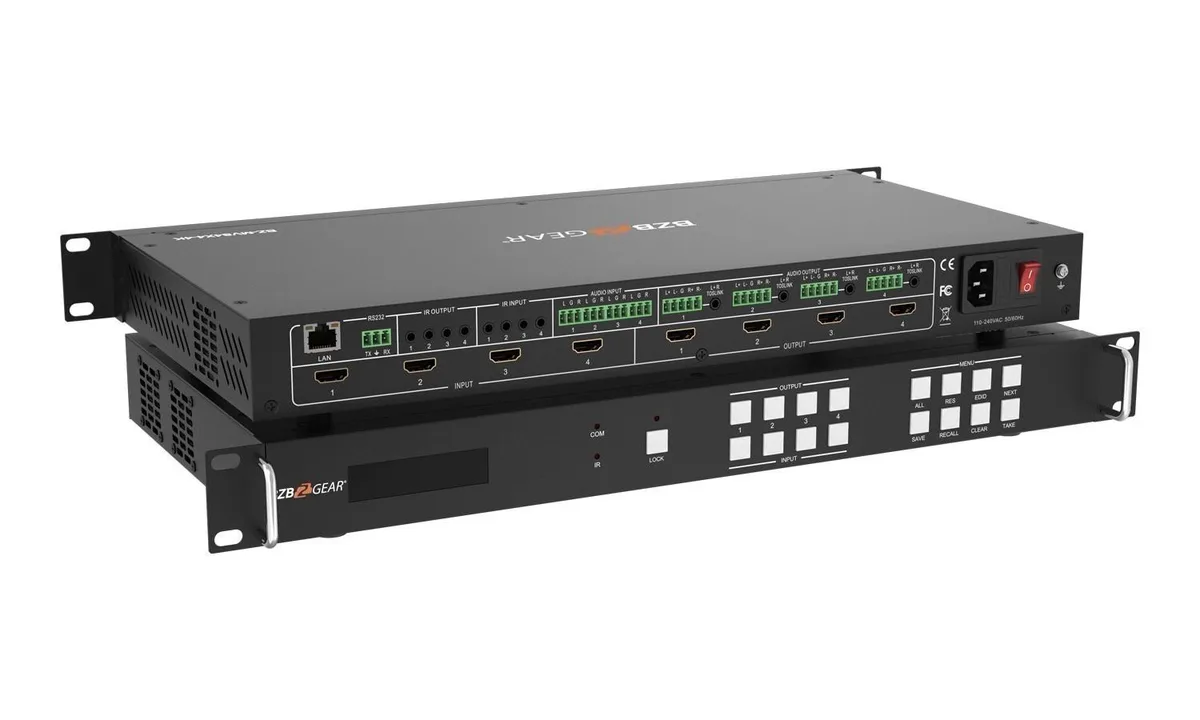

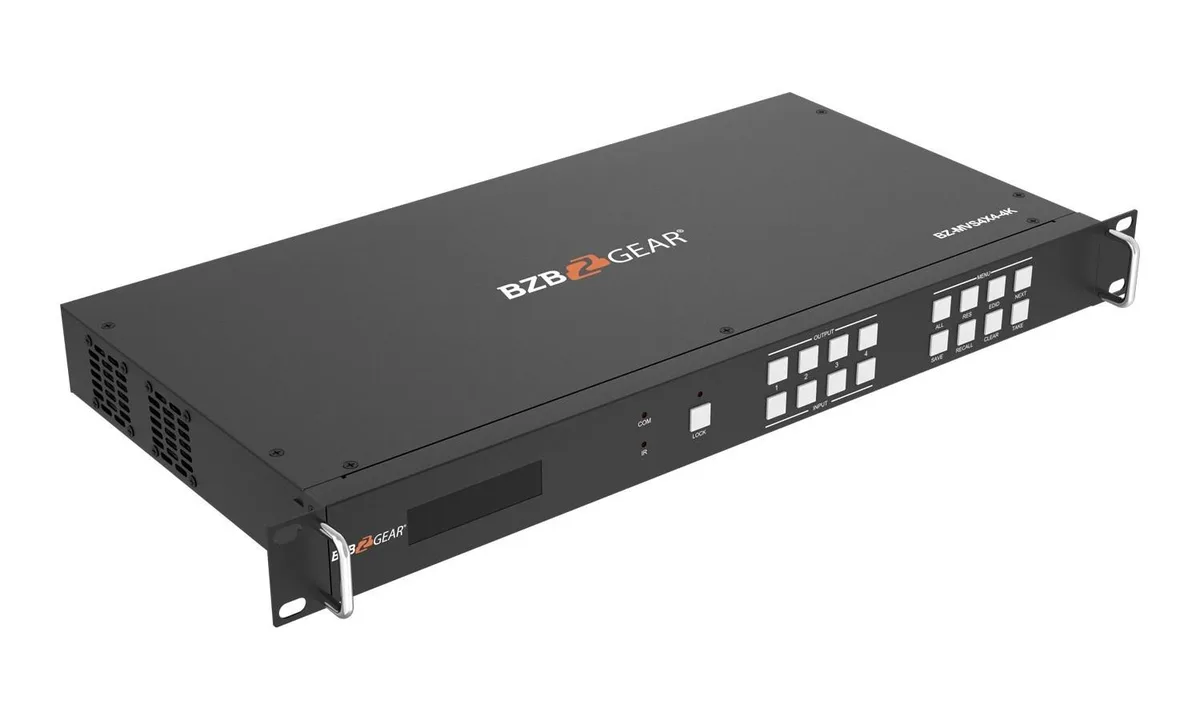

Black rack-mount chassis with front panel buttons and rear HDMI ports

BZBGEAR

BZBGEAR BZ-MVS4X4-4K 4x4 4K60 HDMI Video Wall Processor Audio

SKU CH-TC11-YJHZ7

Routes four HDMI sources to four displays as a matrix or 4K60 video wall with audio embedding and RS-232 control

  • Maximum ResolutionsUp to 4K60 4:4:4
  • Bandwidth18Gbps
  • Dimensions430mm (W) x 220mm (D) x 44mm (H)
  • Weight5Kg
  • Configures 2×2 1×4 1×2 2×1 4×1 video walls
  • Switches any of four sources to any of four displays
  • 18 Gbps bandwidth carries 4K 60 4:4:4
  • Embeds stereo audio per input de‑embeds via four analog four digital ports
  • Controls via front panel TCP/IP RS‑232 IR remote PC software

4x4 4K60 HDMI Matrix Switcher

The BZBGEAR BZ-MVS4X4-4K routes four HDMI sources to four displays as a seamless matrix or video wall. It supports layouts such as 2x2, 1x4 and 4x1 for professional installations and home theatre builds.

Audio Embedding and De-Embedding

Each input accepts stereo audio via rear phoenix connectors for embedding into the HDMI stream. Four analogue stereo outputs and four TOSLINK S/PDIF ports provide simultaneous de-embedded audio distribution.

18Gbps 4K60 4:4:4 Bandwidth

The HDMI 2.0 ports handle 18Gbps throughput with HDCP 2.2 compliance, enabling full 4K60 4:4:4 signals without chroma subscaling. Buyers needing higher refresh rates or 8K resolution cannot use this unit.

Highlights

  • Configures 2×2 1×4 1×2 2×1 4×1 video walls
  • Switches any of four sources to any of four displays
  • 18 Gbps bandwidth carries 4K 60 4:4:4
  • Embeds stereo audio per input de‑embeds via four analog four digital ports
  • Controls via front panel TCP/IP RS‑232 IR remote PC software

Specifications

BrandBZBGEAR
ModelBZ-MVS4X4-4K
Maximum ResolutionsUp to 4K60 4:4:4
Bandwidth18Gbps
Dimensions430mm (W) x 220mm (D) x 44mm (H)
Weight5Kg

Questions about this item

Does the BZ-MVS4X4-4K have any fans or filters that will need cleaning or replacement over time?

The unit is a solid-state matrix processor with no moving parts, so there are no fans or filters to service.

What is the first limit reached when all four outputs run 4K60 4:4:4 continuously?

The 18Gbps HDMI 2.0 bandwidth ceiling is the hard limit; sustained 4K60 4:4:4 on every port stays within that ceiling.

How much heat and noise does the BZ-MVS4X4-4K produce during all-day operation?

With no internal fans the processor runs silently, and its 44mm rack height allows normal convection cooling in a ventilated cabinet.
