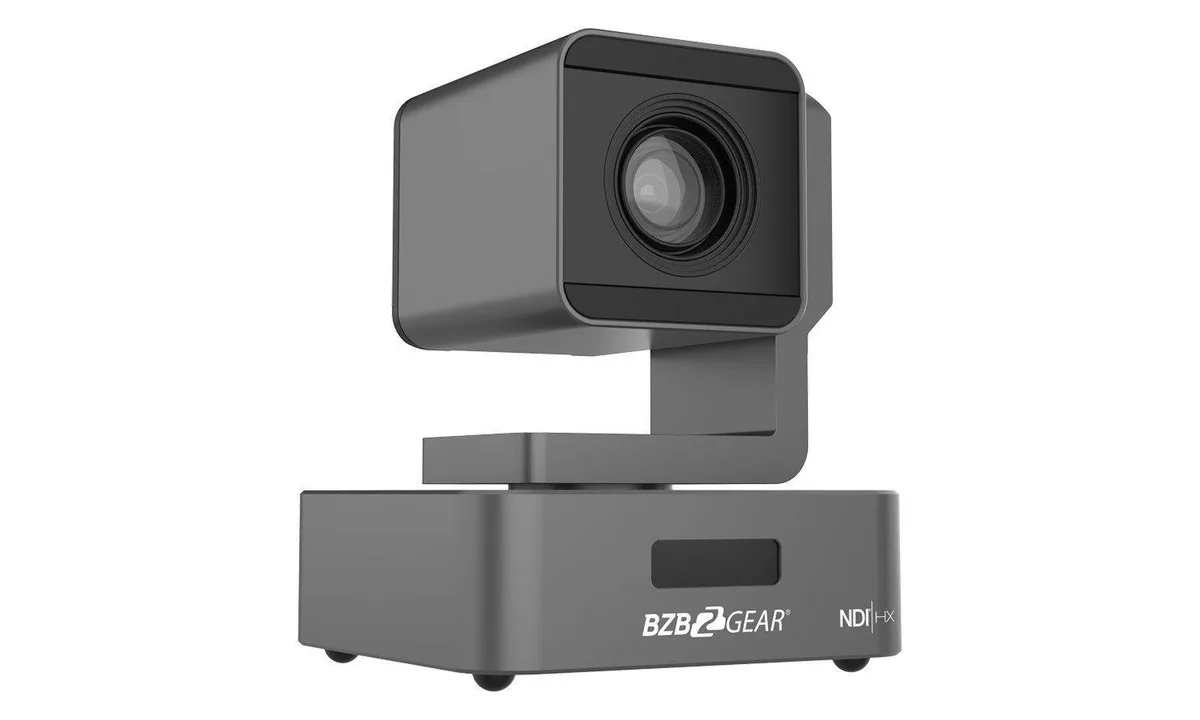

Compact gray PTZ camera with 20x optical zoom

BZBGEAR

BZBGEAR BG-VPTZN-20HSU3 20X PTZ network camera

SKU CH-26F3-0SMKH

Compact 1080p PTZ camera with 20x optical zoom, simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs, NDI support and PoE power

  • Bundled Camera Number1 Camera
  • Camera Type1
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI
  • ColorGray

Option 20X

  • 20x optical zoom captures distant detail clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs fit any workflow
  • NDI over a single CAT cable powers, streams and controls the camera
  • 5 mm line input embeds external audio into the live stream
  • Pan ±178° and tilt -30° to +90° at up to 90°/s covers wide areas

Compact PTZ camera for live streaming

The BZBGEAR BG-VPTZN-20HSU3 is a 1080p PTZ network camera built for professional video workflows. It delivers simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs from a single compact grey housing. A 20x optical zoom lens and a 1/2.8 Exmor CMOS sensor capture 2 MP resolution at frame rates up to 1080p 60. Pan and tilt cover ±178° and -30° to +90° at speeds up to 90° per second.

Upgrade from fixed webcams or basic PTZ units

This model replaces static cameras that lack optical zoom or multi-output flexibility. The jump is worth it when you need simultaneous 3G-SDI, HDMI, USB 3.0 and NDI streams over a single CAT 5e/6/7 cable with PoE power. It also adds VISCA, PELCO P/D and ONVIF control protocols plus a 3.5 mm line-in for audio embedding into the live stream.

Suited for broadcast, lecture capture

Ideal for operators who need broadcast-quality 1080p60 output to switchers, recorders and streaming platforms at the same time. Not suited for buyers who require 4K resolution, higher than 20x optical zoom, or 1 GbE network bandwidth. Also not for installations needing built-in speakers or battery operation.

Highlights

  • 20x optical zoom captures distant detail clearly
  • Simultaneous HDMI, 3G-SDI, USB 3.0 and IP streaming outputs fit any workflow
  • NDI over a single CAT cable powers, streams and controls the camera
  • 5 mm line input embeds external audio into the live stream
  • Pan ±178° and tilt -30° to +90° at up to 90°/s covers wide areas

Specifications

BrandBZBGEAR
Part NumberBG-VPTZN-20HSU3
Bundled Camera Number1 Camera
Camera Type1
Network CameraYes
TypePTZ Camera
Connection TypeHDMI
ColorGray
Networking ProtocolVISCA, PELCO P/D, ONVIF Protocol
ONVIFYes
PortsHDMI, 3G-SDI, USB 3.0, RJ45 Network (10/100M Adaptive Ethernet ports)
Pan/Tilt±178°, Tilt Rotation Angle -30°~ +90°
Pan 90°/s; Tilt: 90°/s
Sensor & Detector1/2.8? Exmor CMOS (20X)
Pixels2 MP
HD Resolution1080P
Frame Rate1080p @ 60/ 59.94 / 50 /30 / 29.97 /25
1080i @ 60/59.94 / 50 / 30 / 29.97 / 25
720p @ 60/50/ 30 / 25, 480i @ 60, 576i @ 50
Optical Zoom20x Optical Zoom
Audio1-ch 3.5mm audio interface, Line In
Power over EthernetYes
Power12W DC12V@1A
Dimension(L*W*H) 120mm x 120mm x 145mm
Weight3.5 lbs [1.6kg]

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What mounting options does the BG-VPTZN-20HSU3 support?

The camera supports ceiling, wall, tripod, or desk mounting for flexible installation.

How do I power and connect the camera over a single cable?

Use a Cat 5e/6/7 cable to an NDI-capable PoE switch; the camera draws 12W via PoE and carries power, video, and control.

What audio connector is provided for embedding sound into the stream?

A 3.5 mm line-level input jack lets you connect a mixer or powered microphone for embedded audio.
