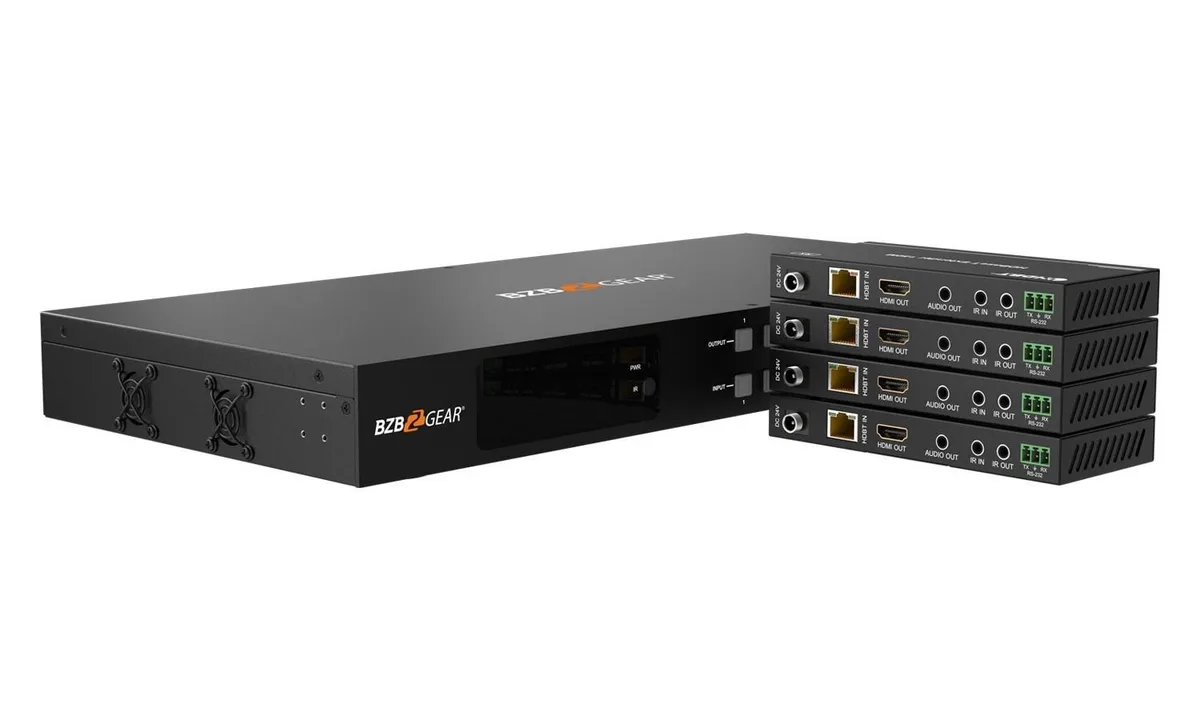

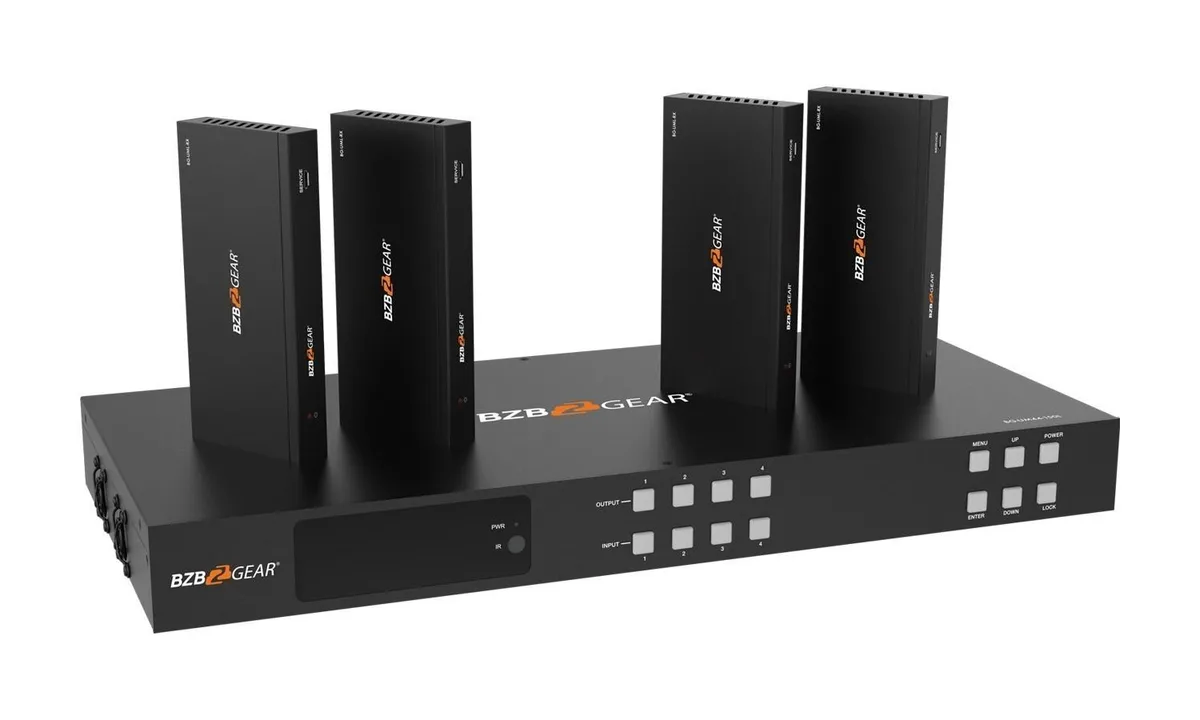

Black rack-mount matrix unit with front buttons and rear HDMI RJ45 ports

BZBGEAR

BZBGEAR BG-UM44-150L-KIT 4x4 HDMI HDBaseT Matrix Video Switch

SKU CH-A46Q-RCNQ7

A 4×4 HDMI matrix routes four sources to eight displays — four local HDMI and four HDBaseT runs up to 120 m at 4K 60 Hz 4:4:4 — with downscaling per output.

  • TypeHDMI and HDBaseT Matrix Switch
  • MatrixYes
  • AudioLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby
  • Input Connector4 x HDMI Type A [19-pin female]
  • Output Connector4 x HDMI Type A [19-pin female] 4 x HDBaseT port [RJ45] 4 x
  • Maximum ResolutionsUp to 4K2K@50/60Hz (4:4:4)
  • 4K 60 Hz 4:4:4 clarity with 18 Gbps bandwidth
  • Extend 4K up to 394 ft or 1080p to 492 ft over HDBaseT
  • Route any of 4 sources to any of 8 displays via 4x4 matrix
  • Built-in 4K-to-1080p downscaling per output for mixed displays
  • Control via front panel, RS232, IR, CEC, IP or Web GUI

4x4 HDMI HDBaseT Matrix Switch

The BZBGEAR BG-UM44-150L-KIT is a 4x4 HDMI and HDBaseT matrix video switch designed for professional AV installations. It routes up to four HDMI sources to four HDMI displays and four HDBaseT receivers simultaneously. The unit supports 4K2K@50/60Hz 4:4:4 resolution with 18Gbps bandwidth and HDCP 2.2 compliance. Integrated downscaling allows 4K to 1080p conversion per output.

Installers needing long cable runs

This matrix suits integrators distributing 4K video up to 120 metres over Cat cable with PoC powering remote receivers. It fits projects requiring bi-directional IR, RS232, IP, and web GUI control across multiple zones. Buyers needing more than four inputs or outputs, or those requiring HDMI 2.1 features such as 8K or VRR, should consider a larger or newer platform.

18Gbps bandwidth with 4K60 4:4:4 and HDBaseT

The decisive specification is the 18Gbps bandwidth enabling 4K@60Hz 4:4:4 video across all HDMI and HDBaseT ports. HDBaseT outputs extend 4K signals to 120 metres and 1080p signals to 150 metres with PoC. Four coaxial and four balanced analog audio outputs provide discrete audio de-embedding for each zone. Front panel, RS232, IR, CEC, IP, and web GUI control methods are included.

Highlights

  • 4K 60 Hz 4:4:4 clarity with 18 Gbps bandwidth
  • Extend 4K up to 394 ft or 1080p to 492 ft over HDBaseT
  • Route any of 4 sources to any of 8 displays via 4x4 matrix
  • Built-in 4K-to-1080p downscaling per output for mixed displays
  • Control via front panel, RS232, IR, CEC, IP or Web GUI

Specifications

BrandBZBGEAR
ModelBG-UM44-150L-KIT
TypeHDMI and HDBaseT Matrix Switch
MatrixYes
AudioLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Input Connector4 x HDMI Type A [19-pin female]
Output Connector4 x HDMI Type A [19-pin female] 4 x HDBaseT port [RJ45] 4 x Coaxial audio [3.5mm Stereo Mini-jack] 4 x balanced analog audio [5-pin Phoenix connector]
Maximum ResolutionsUp to 4K2K@50/60Hz (4:4:4)
Bandwidth18Gbps
DimensionsMatrix: 440mm (W) x 200mm (D) x 44.5mm (H) Receiver: 140mm (W) x 65mm (W) x 18mm (W)
WeightMatrix: 3.1Kg, Receiver: 155g

Questions about this item

How much heat or fan noise does the 3.1 kg matrix generate when running continuously?

The 3.1 kg matrix is passively cooled with no fan, so it adds no audible noise and only modest heat during all-day operation.

Which cables and displays must I already own to use the four HDMI and four HDBaseT outputs?

You need four HDMI source devices, up to eight displays with HDMI inputs, four Cat5e/6 cables for the HDBaseT runs, and four HDMI cables for the local outputs.

Will the 18 Gbps HDMI 2.0b ports downscale 4K@60 4:4:4 sources to work with my older 1080p screens?

Yes, each output can independently downscale 4K to 1080p while maintaining HDCP 2.2 handshake with the source.
