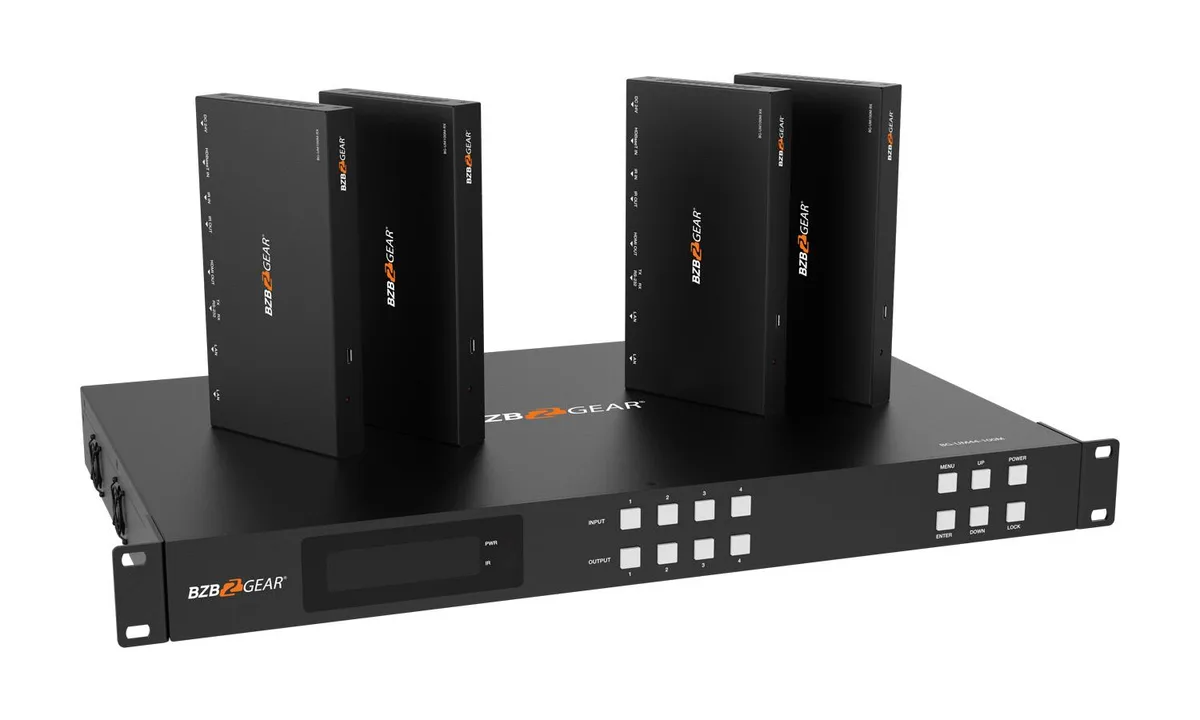

Black 4x4 HDMI matrix switcher with HDBaseT ports and rack-mount form factor

BZBGEAR

BZBGEAR BG-UM44-100M-KIT 4x4 HDMI/HDBaseT Matrix Switcher

SKU CH-4S2W-SE08F

Routes four 4K HDMI sources to four HDBaseT runs up to 100 metres and four local HDMI mirrors with full audio breakout and IP control

  • Type4X4 HDMI and HDBaseT Matrix Switch
  • ColorBlack
  • AudioPCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS,
  • Input Connector4xINPUT [HDMI Type A, 19-pin female] 6xIR INPUT [3.5mm Stere
  • Output Connector4xHDMI OUTPUT [HDMI Type A, 19-pin female] 4xHDBaseT port [R
  • Maximum ResolutionsUp to 4K2K@50/60Hz (4:4:4)
  • Route any of four sources to four displays
  • 4K at 60 Hz with full 4:4:4 colour
  • HDBaseT reaches 100 metres over Cat6 cable
  • Each output adds coax and analogue audio
  • Front panel, RS-232, IR, CEC or web GUI control

4x4 HDMI and HDBaseT Matrix Switch

The BG-UM44-100M-KIT routes four HDMI sources to four HDBaseT outputs and four mirrored HDMI outputs. It handles 4K@60Hz 4:4:4 video at 18Gbps bandwidth with HDCP 2.2 compliance. The transmitter unit measures 440mm wide, 274mm deep and 45mm high, weighing 3977g. Each receiver is 163mm wide, 90.3mm deep and 18mm high, weighing 392g. The kit extends 4K signals up to 100 metres over category 6 cable.

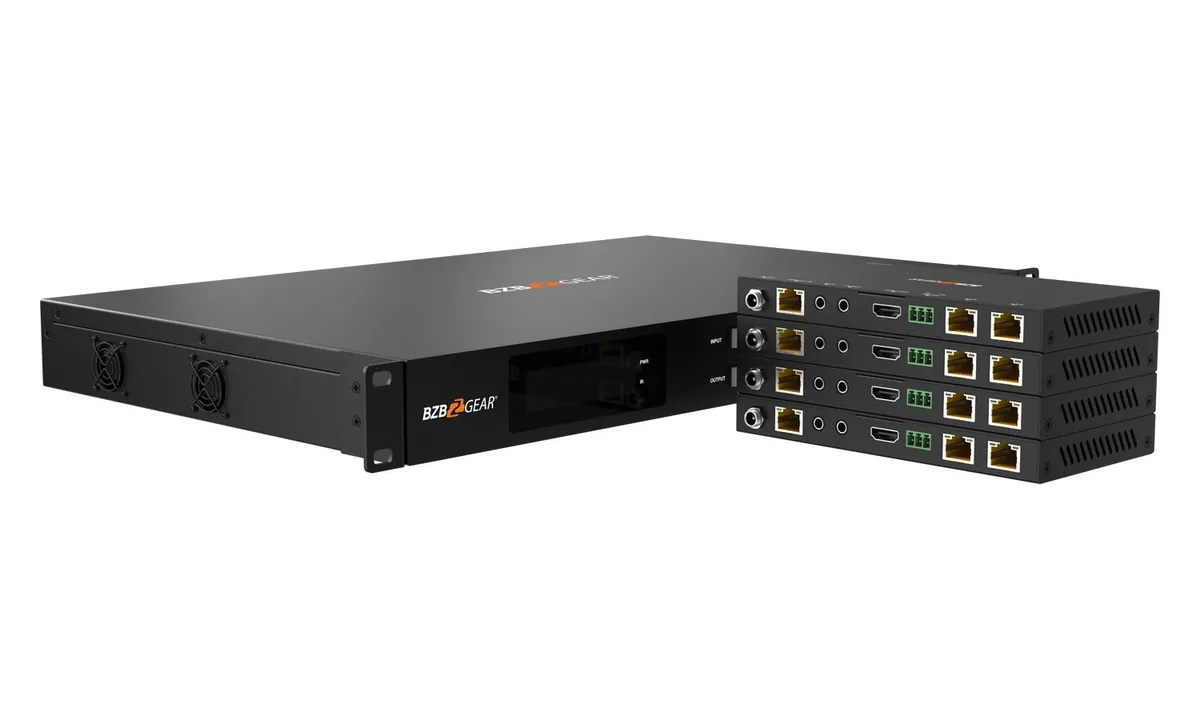

HDBaseT Receivers with PoC and Dual LAN

Four HDBaseT receivers are included, each powered over cable at 24V from the transmitter. Every receiver provides dual LAN ports for network passthrough to connected devices. The matrix de-embeds audio on every output, offering coaxial S/PDIF and 3.5mm stereo analogue ports. Each output also performs automatic 4K to 1080p downscaling. Control options cover front panel buttons, RS-232 via 3-pin Phoenix connectors, IR, CEC and TCP/IP web GUI. ARC support is present on HDMI outputs.

Installers Needing Centralised 4K Distribution

This kit suits integrators routing four sources to eight displays over long cable runs while extracting audio to separate zones. The 100-metre reach and PoC simplify cabling in commercial or large residential projects. Buyers who only need local switching without extension should consider a standard HDMI matrix. Those requiring more than four inputs or outputs need a larger chassis. Systems without category 6 infrastructure cannot use the HDBaseT paths.

Highlights

  • Route any of four sources to four displays
  • 4K at 60 Hz with full 4:4:4 colour
  • HDBaseT reaches 100 metres over Cat6 cable
  • Each output adds coax and analogue audio
  • Front panel, RS-232, IR, CEC or web GUI control

Specifications

BrandBZBGEAR
ModelBG-UM44-100M-KIT
Type4X4 HDMI and HDBaseT Matrix Switch
ColorBlack
AudioPCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Input Connector4xINPUT [HDMI Type A, 19-pin female] 6xIR INPUT [3.5mm Stereo Mini-jack] 2xStereo Audio [3.5mm Stereo Mini-jack B] 1xSPDIF(OPTICAL) 1xSPDIF(COAX)
Output Connector4xHDMI OUTPUT [HDMI Type A, 19-pin female] 4xHDBaseT port [RJ45] 5xIR OUTPUT [3.5mm Stereo Mini-jack] 4xRS-232 [3-pin Phoenix connector] 4xSPDIF(COAX) 4xStereo Audio[3.5mm Stereo Mini-jack] 1xLAN [RJ45]
Maximum ResolutionsUp to 4K2K@50/60Hz (4:4:4)
Bandwidth18Gbps
DimensionsTX: 440mm (W)x274mm (D)x45mm (H) RX: 163mm (W)x90.3mm (D)x18mm (H)
WeightTX: 3977g, RX: 392g
Style4K60Hz

Questions about this item

Will the HDBaseT receivers need their own power adapters later?

No, the matrix supplies 24 V over each HDBaseT output so the included receivers draw power through the Cat6 cable.

What resolution limit appears first when running all four zones at 4K 60 Hz 4:4:4 continuously?

The 18 Gbps HDMI 2.0 bandwidth ceiling is reached before any thermal throttle.

How much heat and fan noise does the main unit produce during all-day operation?

The 440 mm wide chassis dissipates heat passively; no internal fan is fitted, so audible noise is negligible.
