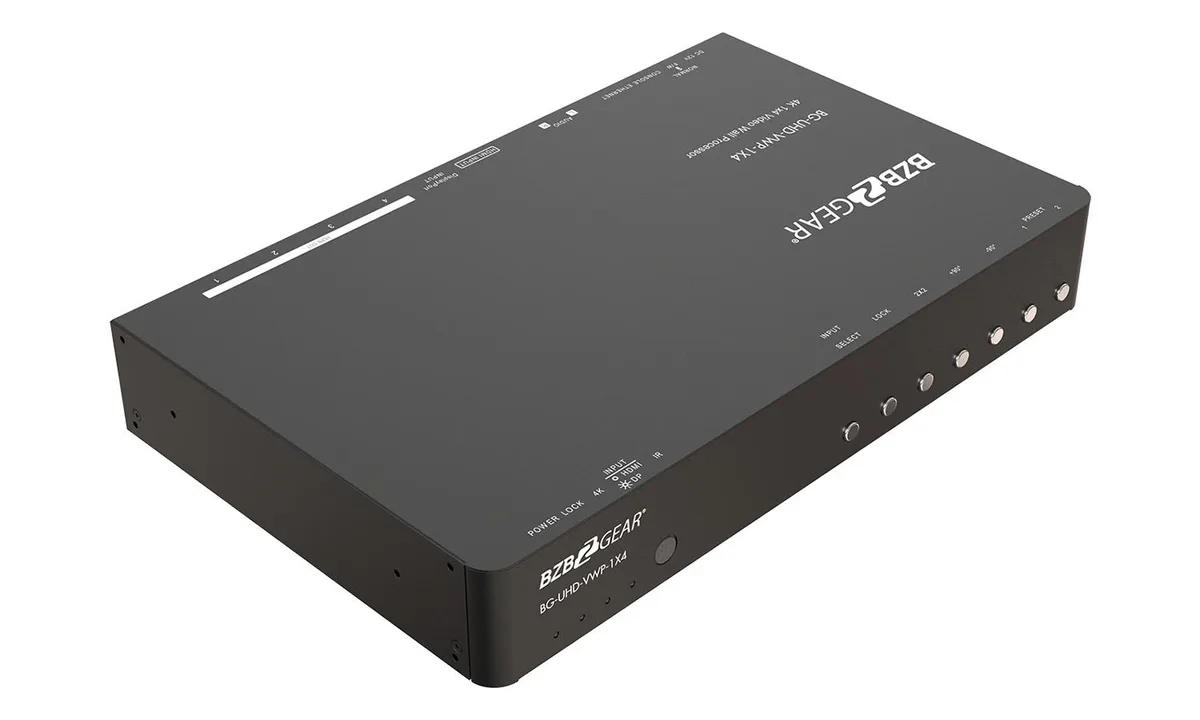

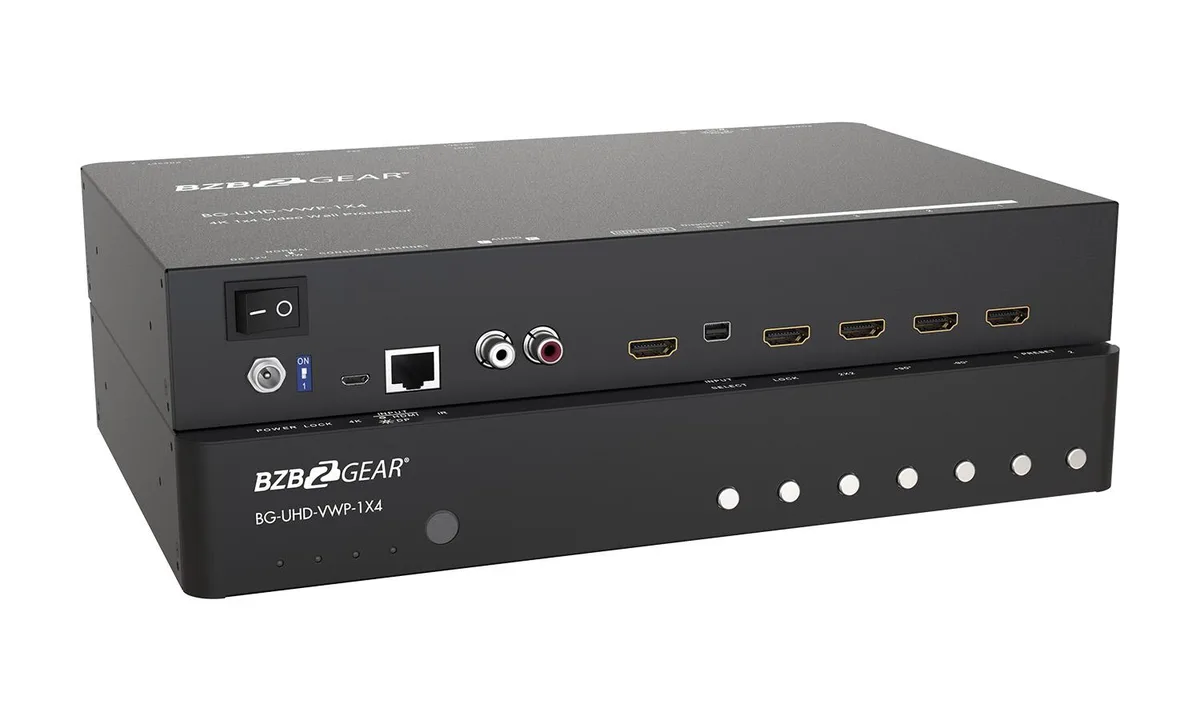

Black metal box with front buttons and rear HDMI ports

BZBGEAR

BZBGEAR BG-UHD-VWP-1X4 4K 60Hz Video Wall Processor with Scaler/Audio

SKU CH-JEJA-D68QM

Splits one 4K 60 Hz source across four 1080p displays with per-output scaling, HDCP 2.2 support and LAN, IR, USB or front-panel control

  • Type4-Port 4K 60Hz VideoWall Processor with Scaler
  • ColorBlack
  • Ports4-Port UHD
  • Input Connector1xHDMI + 1xMini DisplayPort + 1xUSB + 1xRJ45
  • Output Connector4x HDMI + 1xStereo
  • Maximum ResolutionsInput – 4K2K@60 (4:2:2 8bits) / 4K2K@60 (4:4:4 8bits) Output
  • Accepts HDMI and DisplayPort inputs up to 4K 60 Hz 4:4:4 for crisp source detail
  • Embedded scaler converts each output to 1920 x 1080 or 1920 x 1200 matching display native resolution
  • Four HDMI outputs plus stereo audio deliver video walls up to four screens from one source
  • Control via front panel, LAN, USB virtual COM or IR remote for flexible operation
  • HDCP 2.2 compliant protecting premium content across all connected displays

1×4 4K 60 Hz Video Wall Processor

The BZBGEAR BG-UHD-VWP-1X4 accepts a single HDMI or Mini DisplayPort source at up to 4K2K@60 Hz 4:4:4 and distributes it across four HDMI outputs. An embedded scaler converts the signal to each display’s native resolution up to 1920×1200@60 Hz. Stereo audio is extracted to a dedicated analogue output. Control is available via front panel, IR remote, USB virtual COM, LAN webGUI or the IntriCloud remote service.

Installers needing one source across four screens

This unit suits digital signage, broadcasting, education and surveillance installations that require a single 4K 60 Hz source duplicated or tiled across four 1080p or WUXGA displays. It does not suit applications that need each output to show a different 4K 60 Hz source, nor setups that require HDMI 2.1 bandwidth or 4K 60 Hz output on every port simultaneously.

Four 1080p or WUXGA outputs from one 4K input

The processor comfortably drives four displays at 1920×1080@60 Hz or 1920×1200@60 Hz from a single 4K 60 Hz 4:4:4 input. Output bandwidth is limited to 6.75 Gbps per port, so 4K 60 Hz output is not supported. The scaler handles down-conversion and zoom per output, but cannot up-scale a 1080p source to 4K across the wall.

Highlights

  • Accepts HDMI and DisplayPort inputs up to 4K 60 Hz 4:4:4 for crisp source detail
  • Embedded scaler converts each output to 1920 x 1080 or 1920 x 1200 matching display native resolution
  • Four HDMI outputs plus stereo audio deliver video walls up to four screens from one source
  • Control via front panel, LAN, USB virtual COM or IR remote for flexible operation
  • HDCP 2.2 compliant protecting premium content across all connected displays

Specifications

BrandBZBGEAR
ModelBG-UHD-VWP-1X4
Type4-Port 4K 60Hz VideoWall Processor with Scaler
ColorBlack
Ports4-Port UHD
Input Connector1xHDMI + 1xMini DisplayPort + 1xUSB + 1xRJ45
Output Connector4x HDMI + 1xStereo
Maximum ResolutionsInput – 4K2K@60 (4:2:2 8bits) / 4K2K@60 (4:4:4 8bits) Output – 1920x1080@60 / 1920x1200@60
BandwidthInput – Single link 600MHz [18Gbps] Output –Single-link 225MHz [6.75Gbps]
Dimensions376x240x112mm [1’2”x9.4”x 4.4”]
Weight2077g [4.6lbs]
Style4K60Hz

Questions about this item

Do I need four HDMI displays that accept 1920×1080 or 1920×1200 at 60 Hz?

Yes, the processor drives four HDMI outputs at up to 1920×1200@60 Hz, so each connected screen must support one of those resolutions.

Will my older 1080p monitors work with the 4K 60 Hz input?

The built-in scaler down-converts the 4K 60 Hz source to 1920×1080@60 Hz or 1920×1200@60 Hz per output, so legacy 1080p displays work without extra hardware.

How can I confirm each output is showing the correct scaled image?

Use the front-panel buttons, IR remote, USB virtual COM, LAN webGUI or IntriCloud to recall saved layouts and verify per-output resize, position and zoom settings.
