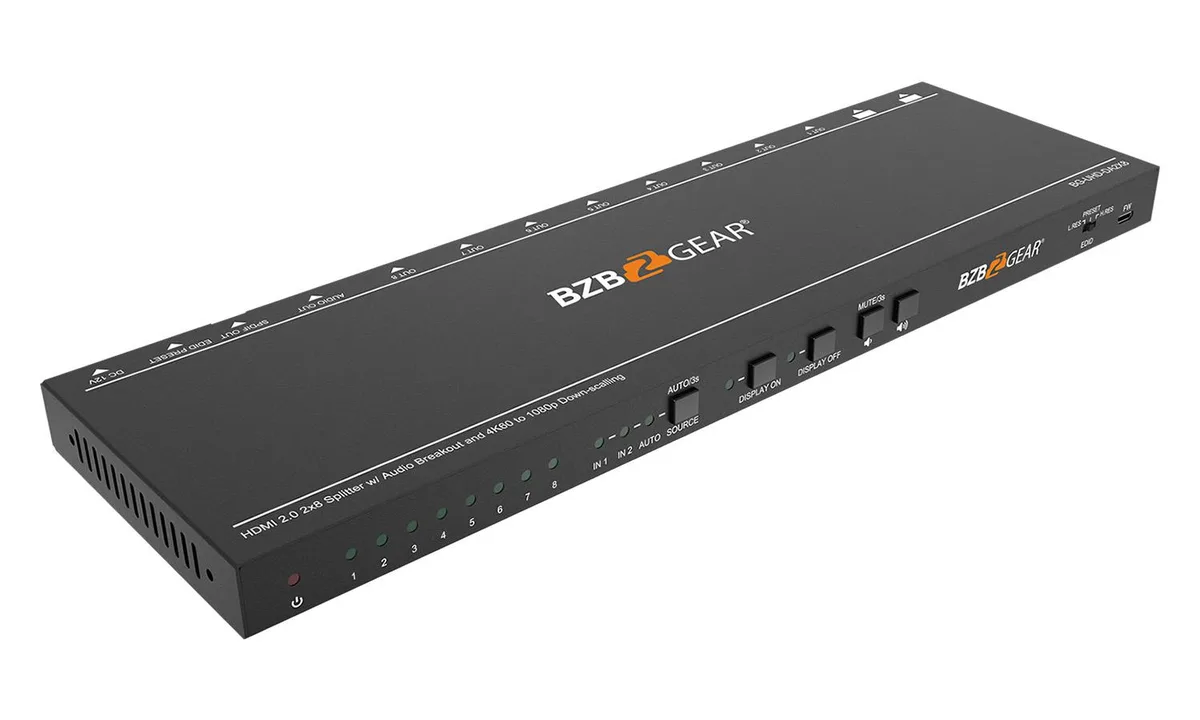

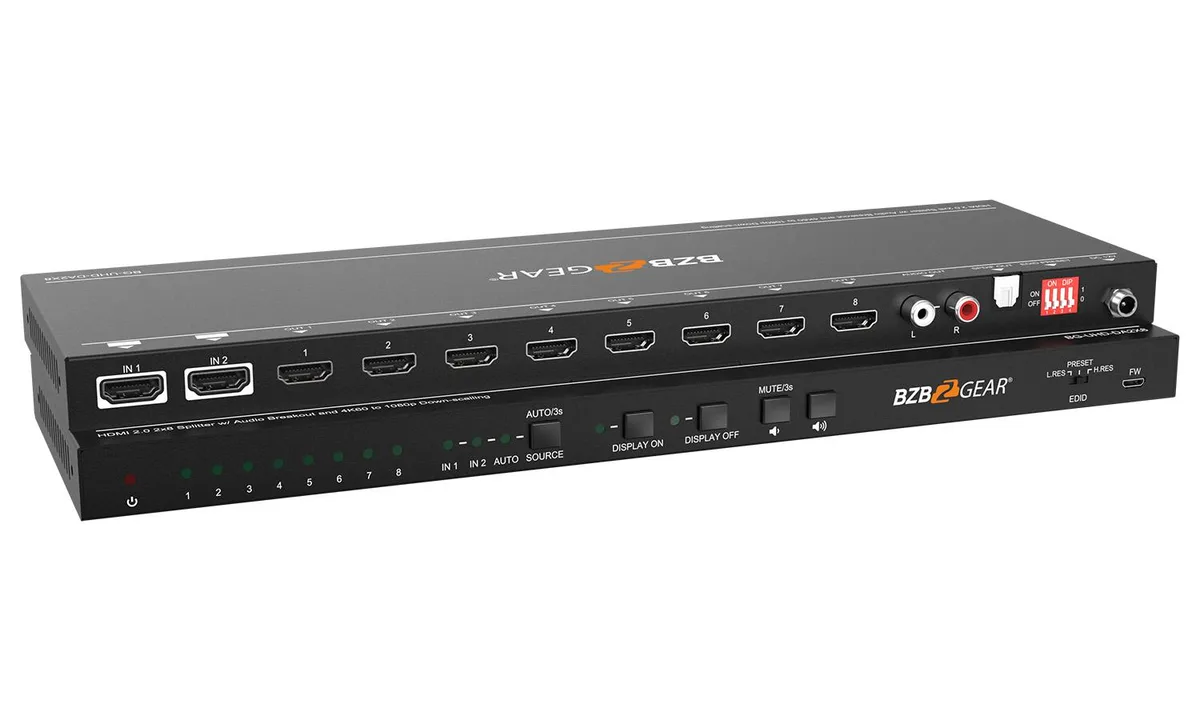

Black metal box with two HDMI inputs and eight outputs on the rear panel

BZBGEAR

BZBGEAR BG-UHD-DA2X8 2x8 4K60 HDMI video splitter

SKU CH-5KBV-MM29K

Splits two 4K60 HDMI sources to eight displays with 18 Gbps bandwidth, 4K-to-1080p downscaling, EDID management, CEC volume control and stereo RCA plus Toslink audio extraction

  • TypeHDMI Splitters
  • Ports8
  • AudioYes
  • ColorBlack
  • Input Connector(2) Female type-A HDMI
  • Output Connector(8) Female type-A HDMI
  • Share two 4K sources across eight displays simultaneously
  • View full 4K60 4:4:4 detail on every connected screen
  • Integrate older 1080p displays automatically with 4K-to-1080p down-scaling
  • Extract audio to external systems via RCA stereo and Toslink outputs
  • Manage EDID centrally to eliminate HDMI handshake problems

Dual-input 4K60 HDMI splitter

The BG-UHD-DA2X8 is an 8-way distribution amplifier that accepts two HDMI sources and sends the signal to eight displays simultaneously. It supports resolutions up to 4K@60Hz with 4:4:4 chroma sampling and 18Gbps bandwidth. The unit is designed for commercial installations such as restaurants, bars and retail spaces where multiple screens show the same content.

Replaces single-input splitters and basic switchers

A single-input splitter forces every screen to show one source; this unit adds a second input so operators can toggle between two 4K sources without re-cabling. The jump is worth it when a venue needs to alternate between a media player and a live feed, or when legacy 1080p displays must coexist with 4K screens thanks to automatic down-scaling. Customisable EDID management removes handshake failures that plague simpler devices.

Eight outputs with audio de-embedding

The splitter drives eight HDMI outputs at 4K60 4:4:4 and provides stereo RCA plus Toslink audio extraction for external sound systems. CEC control lets the unit power compatible displays on or off and adjust volume centrally. It runs out of headroom when more than eight displays are required, when a third source must be added, or when resolutions beyond 4K@60Hz are needed.

Highlights

  • Share two 4K sources across eight displays simultaneously
  • View full 4K60 4:4:4 detail on every connected screen
  • Integrate older 1080p displays automatically with 4K-to-1080p down-scaling
  • Extract audio to external systems via RCA stereo and Toslink outputs
  • Manage EDID centrally to eliminate HDMI handshake problems

Specifications

BrandBZBGEAR
ModelBG-UHD-DA2X8
TypeHDMI Splitters
Ports8
AudioYes
ColorBlack
Input Connector(2) Female type-A HDMI
Output Connector(8) Female type-A HDMI
Maximum ResolutionsUp to 4Kx2K@60Hz 4:4:4 8bit
Bandwidth18Gbps
Dimensions324mm x 20mm x 100mm
WeightAbout 900g
Style4K60Hz

Questions about this item

What are the physical dimensions and weight of the BG-UHD-DA2X8 splitter?

The unit measures 324mm wide by 20mm high by 100mm deep and weighs about 900g.

How do I install the splitter and what is the common mistake to avoid?

Connect up to two HDMI sources to the two input ports and up to eight displays to the output ports, then power the unit; a frequent error is forgetting to configure the EDID setting for the connected displays, which can cause no signal or resolution mismatch.

What maintenance or replacement will this splitter need over time?

The device has no user-serviceable parts or consumable components; maintenance is limited to keeping vents clear of dust and verifying cable connections if signal issues arise.
