BZBGEAR

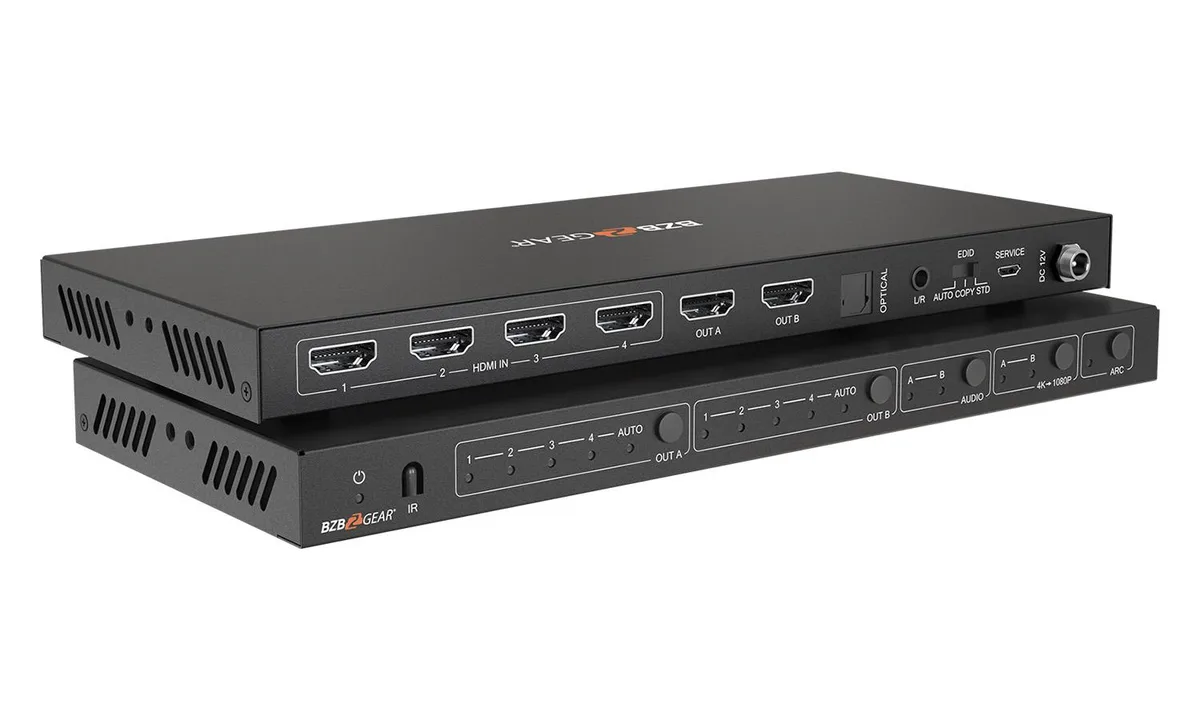

BZBGEAR BG-UHD-42M 4x2 4K60Hz HDMI Matrix Switcher Audio

SKU CH-XN4G-AJFEV

Routes four 4K60 sources to two displays with downscaling and audio de-embedding

  • Type4X2 HDMI 4K 60Hz 18Gbps Matrix Switcher
  • ColorBlack
  • Matrix4X2 Matrix
  • AudioPCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS,
  • Input Connector4×HDMI Type A [19-pin female]
  • Output Connector2×HDMI Type A [19-pin female] 1×L/R audio out [3.5mm Stereo
  • Route any of four sources to two displays independently
  • 4K60 4:4:4 18 Gbps bandwidth keeps full image fidelity
  • Downscale 4K to 1080p on each output for mixed screens
  • De-embed audio via optical and 3.5 mm analogue ports

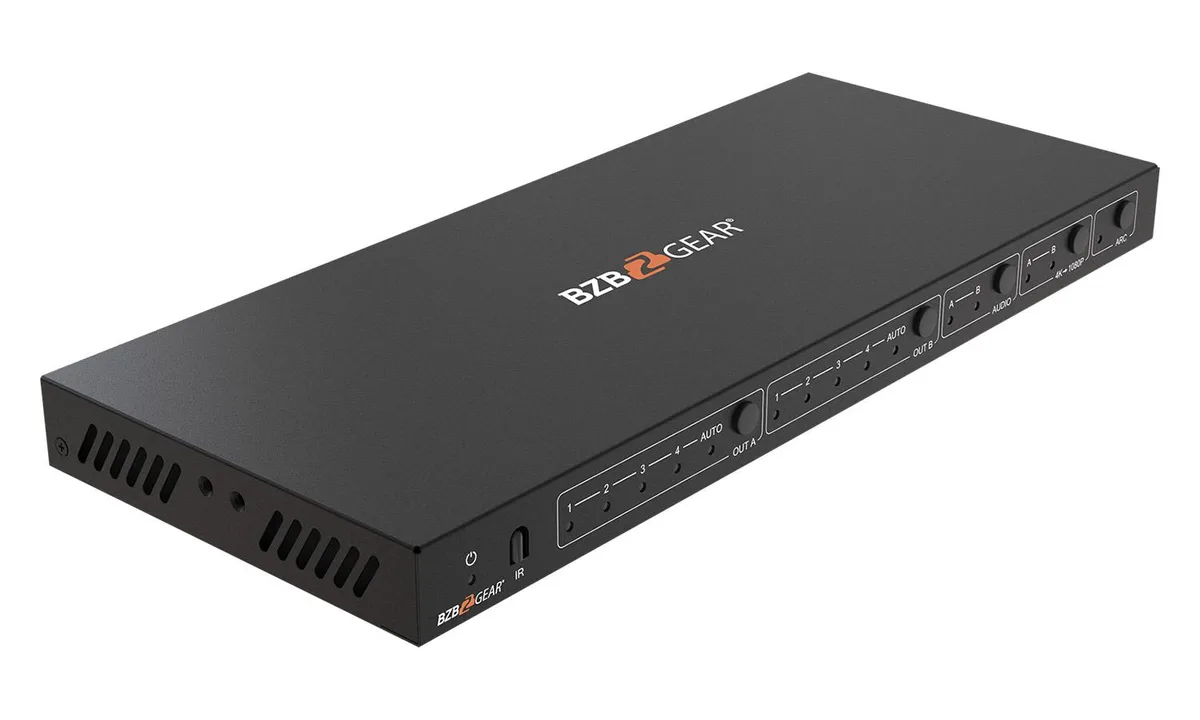

  • Front-panel buttons and IR remote give direct control

4x2 HDMI Matrix Switcher

The BG-UHD-42M is a 4K HDMI matrix switcher that routes any of four HDMI sources to two HDMI displays. It supports resolutions up to 4K@60Hz 4:4:4 with 18 Gbps bandwidth. Audio de-embedding is provided via optical and 3.5 mm analogue outputs. The unit includes front-panel buttons and an IR remote for control.

Suitable for installs needing independent source

This matrix suits conference rooms, sports bars or homes distributing up to four 4K sources to two screens. Downscaling on each output allows legacy 1080p displays to work alongside 4K panels. Buyers who require more than two simultaneous output zones or more than four input ports should consider other solutions.

18 Gbps uncompressed bandwidth

The 18 Gbps bandwidth carries full 4K@60Hz 4:4:4 signals without compression. This single specification determines whether the switcher can transport the highest-quality image your sources and displays support.

Highlights

  • Route any of four sources to two displays independently
  • 4K60 4:4:4 18 Gbps bandwidth keeps full image fidelity
  • Downscale 4K to 1080p on each output for mixed screens
  • De-embed audio via optical and 3.5 mm analogue ports
  • Front-panel buttons and IR remote give direct control

Specifications

BrandBZBGEAR
ModelBG-UHD-42M
Type4X2 HDMI 4K 60Hz 18Gbps Matrix Switcher
ColorBlack
Matrix4X2 Matrix
AudioPCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Input Connector4×HDMI Type A [19-pin female]
Output Connector2×HDMI Type A [19-pin female] 1×L/R audio out [3.5mm Stereo Mini-jack] 1×OPTICAL audio out [S/PDIF]
Maximum ResolutionsUp to 4K2K@50/60Hz(YCbCr 4:4:4), 4K2K@30Hz. All HDMI 3D TV format, etc.
Bandwidth18 Gbps
Dimensions251mm(W)×105mm(D)×20mm(H)
Weight620g
Style4K60Hz

Questions about this item

What source devices must I already have to use the four HDMI inputs?

Up to four HDMI source devices such as media players, game consoles or PCs with HDMI 2.0 outputs are needed to feed the four HDMI Type A inputs.

How does the BG-UHD-42M work with a 1080p display I want to keep?

Each HDMI output downscales 4K signals to 1080p automatically, so a legacy 1080p screen receives a compatible picture without extra converters.

How can I confirm the matrix is routing 4K60 4:4:4 correctly after setup?

The front panel LEDs show the active input for each output; verify the source and display both report 4K@60Hz 4:4:4 in their on-screen information menus.
