BZBGEAR BG-UDAIC-E14 1x4 HDMI Splitter Kit with 4 Receivers

1x4 HDMI Splitter Kit with Four Receivers

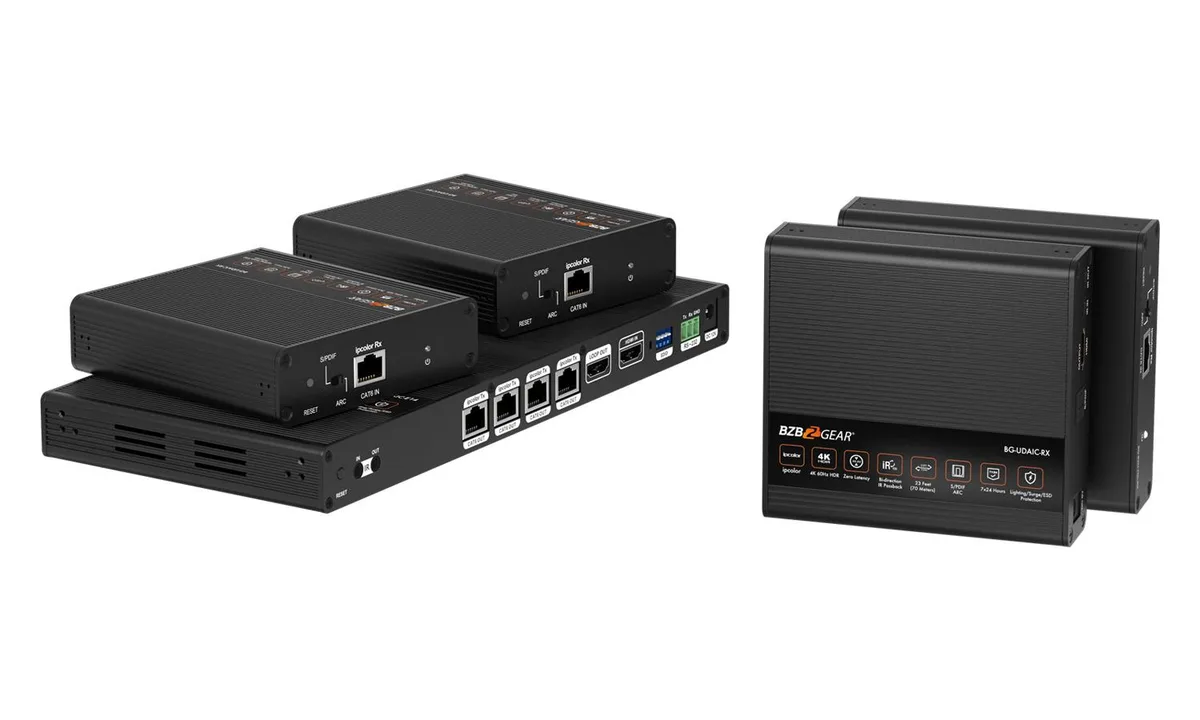

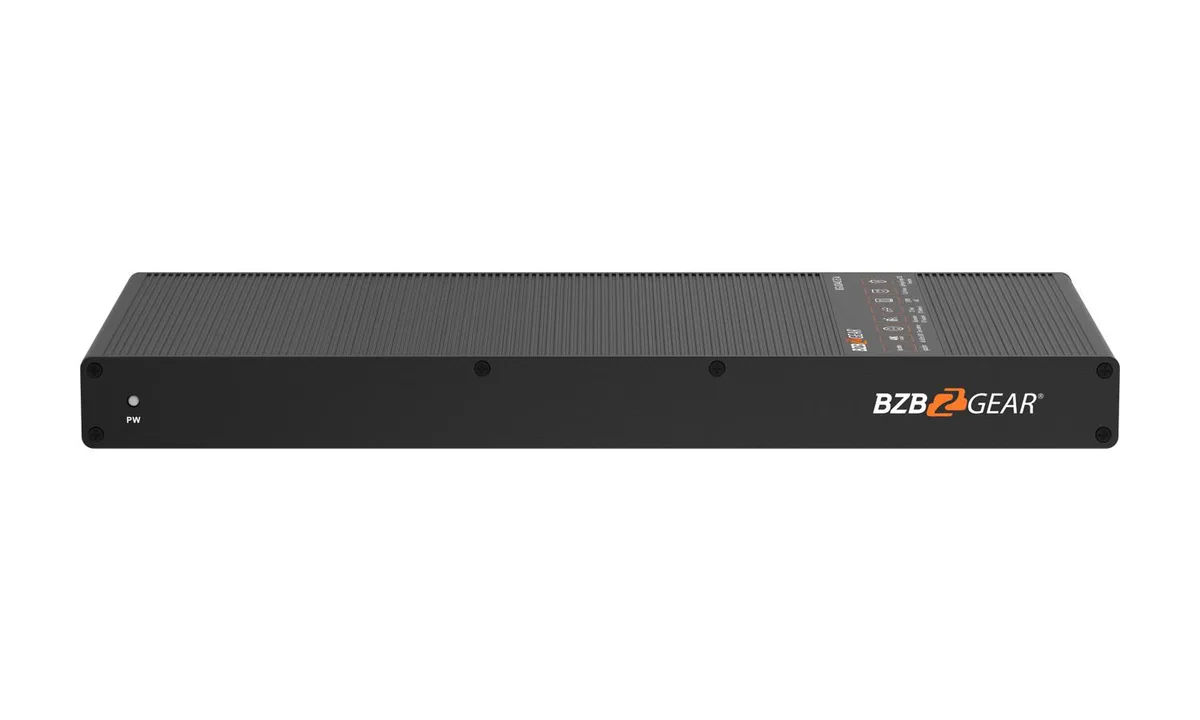

The BZBGEAR BG-UDAIC-E14 distributes a single HDMI source to four remote displays over category cable up to 70 metres. It supports resolutions up to 4K@60Hz and HDCP 2.2 for protected content. The kit includes a transmitter unit and four receiver units for multi-room installations. Installers gain a wired alternative to wireless distribution with zero-latency transmission.

Passive Cooling and Low Power Consumption

Transmitter and receiver units operate without fans, so the system runs silently in quiet environments. Power draw is minimal for an HDMI 2.0 distribution amplifier of this type. The compact enclosures dissipate heat through their metal casings during continuous operation. No external cooling or special ventilation is required in standard rack or shelf mounting.

Metal Enclosures and Flexible Connectivity

Both transmitter and receiver feature sturdy metal housings that resist wear in professional installations. Each receiver provides a TOSLINK port for digital audio de-embedding and supports ARC from connected displays. Bi-directional IR passthrough and RS-232 allow control of source or display devices from either end. EDID can be managed automatically or set manually via dip switches on the transmitter. HDMI loop-out on the transmitter enables a local monitoring display.
