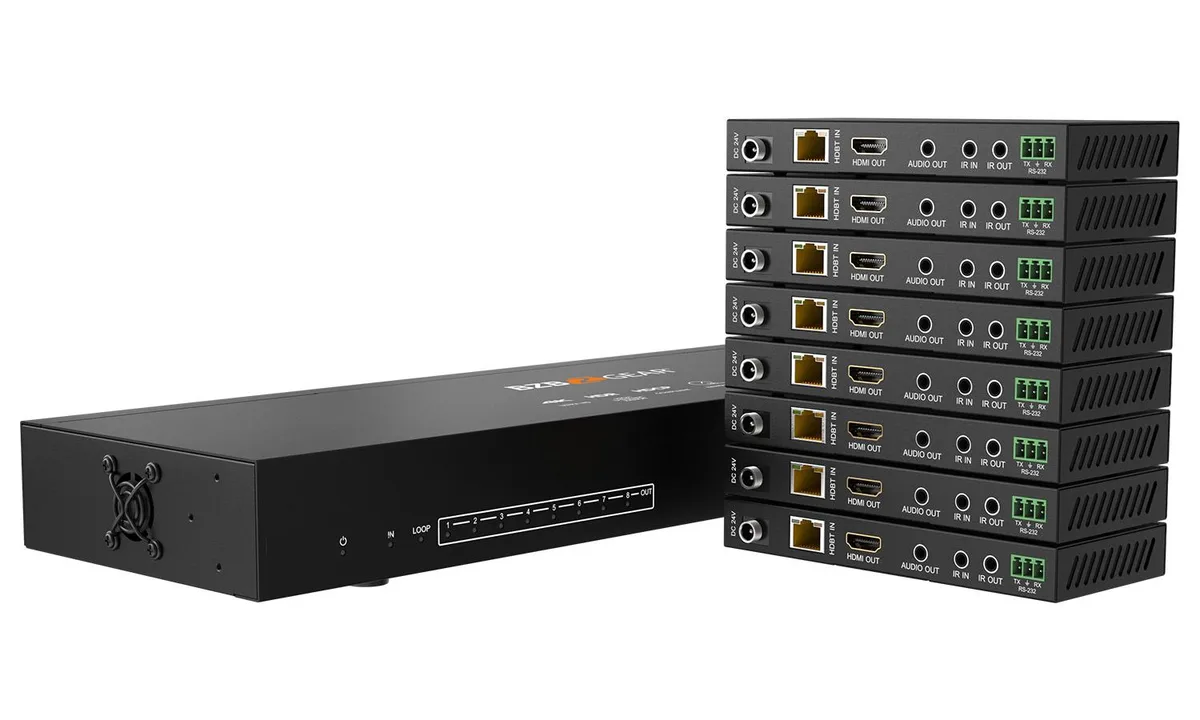

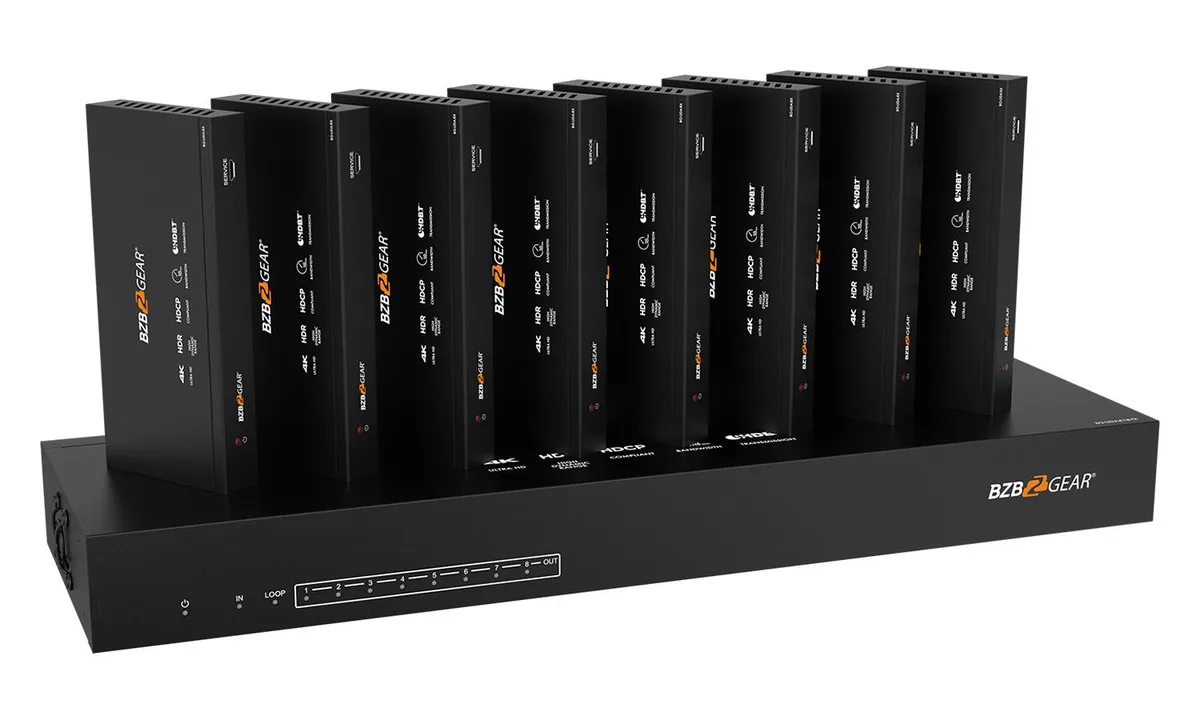

Black metal rack unit with eight small receivers and cables

BZBGEAR

BZBGEAR BG-UDA-E18 1x8 4K HDBaseT Splitter Kit with 8 Receivers

SKU CH-0YQM-WTAMC

Distributes one 4K 60 Hz 4:4:4 HDMI source to eight displays up to 390 ft over category cable with powered receivers and audio extraction

  • TypeHDMI Splitters
  • Input Connector1×HDMI Type A (19-pin female)
  • Output Connector1×HDMI Type A (19-pin female)/ 8x HDBaseT OUT [RJ45] / 1x Co
  • Maximum ResolutionsUp to 4K2K @ 60Hz 4:4:4
  • Bandwidth594MHz/18Gbps
  • DimensionsTransmitter: 440mm (W) × 130mm (D) × 44mm (H) Receiver: 140m
  • 4K 60 Hz 4:4:4 video across eight displays
  • HDBaseT extends 4K signals up to 390 feet over category cable
  • 1080p reaches 490 feet for longer runs
  • Receivers powered over cable — no local power supplies needed
  • Coaxial and analog audio outputs extract sound for external systems

1×8 4K HDBaseT Splitter Kit

This kit distributes one HDMI source to eight remote displays and one local screen using HDBaseT over category cable. It supports 4K resolution at 60 Hz with 4:4:4 colour sampling and multi-channel audio including LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio. Designed for commercial venues such as sports bars, retail spaces and auditoriums requiring long-distance signal distribution.

Verify HDMI source and category cabling

Confirm the source device outputs HDMI 2.0b with HDCP 2.2 or 1.x compliance for full 4K@60Hz 4:4:4 performance. Category 6 cabling is required to reach the 390-foot maximum distance at 4K or 490 feet at 1080p. Ensure the installation can accommodate the transmitter dimensions of 440mm width, 130mm depth and 44mm height, plus rack or shelf space for the 1.62kg unit.

PoE receivers simplify installation

Each of the eight receivers draws power over the category cable from the transmitter, eliminating separate power supplies at display locations. Slim receivers measuring 140mm by 65mm by 18mm and weighing 246g fit easily behind screens. Every receiver provides a 3.5mm stereo output for local audio, RS-232 passthrough for control integration, and an RJ45 input for the HDBaseT link. The transmitter also offers coaxial and 5-pin Phoenix analogue audio de-embedding for external sound systems.

Highlights

  • 4K 60 Hz 4:4:4 video across eight displays
  • HDBaseT extends 4K signals up to 390 feet over category cable
  • 1080p reaches 490 feet for longer runs
  • Receivers powered over cable — no local power supplies needed
  • Coaxial and analog audio outputs extract sound for external systems

Specifications

BrandBZBGEAR
ModelBG-UDA-E18
TypeHDMI Splitters
Input Connector1×HDMI Type A (19-pin female)
Output Connector1×HDMI Type A (19-pin female)/ 8x HDBaseT OUT [RJ45] / 1x Coaxial Audio OUT [RCA] / 1x L/R Audio OUT [5-pin phoenix connector]
Maximum ResolutionsUp to 4K2K @ 60Hz 4:4:4
Bandwidth594MHz/18Gbps
DimensionsTransmitter: 440mm (W) × 130mm (D) × 44mm (H) Receiver: 140mm (W) × 65mm (D) × 18mm (H)
WeightTransmitter: 1.62kg Receiver: 246g

Questions about this item

What comes in the box and what cables or power supplies must I buy separately?

The kit includes the transmitter, eight receivers and mounting hardware. You must supply Category 6 cable for each run; the transmitter needs its own power adapter while the receivers draw power over the cable.

Should I choose the 4K @ 60 Hz 4:4:4 mode or the 1080p @ 60 Hz mode for my installation?

Use 4K @ 60 Hz 4:4:4 for runs up to 120 metres; switch to 1080p @ 60 Hz if any run exceeds that and you need up to 490 feet.

What does the 18 Gbps bandwidth figure mean when the splitter is connected to real displays?

It carries full 4K @ 60 Hz 4:4:4 video with 7.1-channel audio to all eight remote outputs and the local HDMI loop-out simultaneously.
