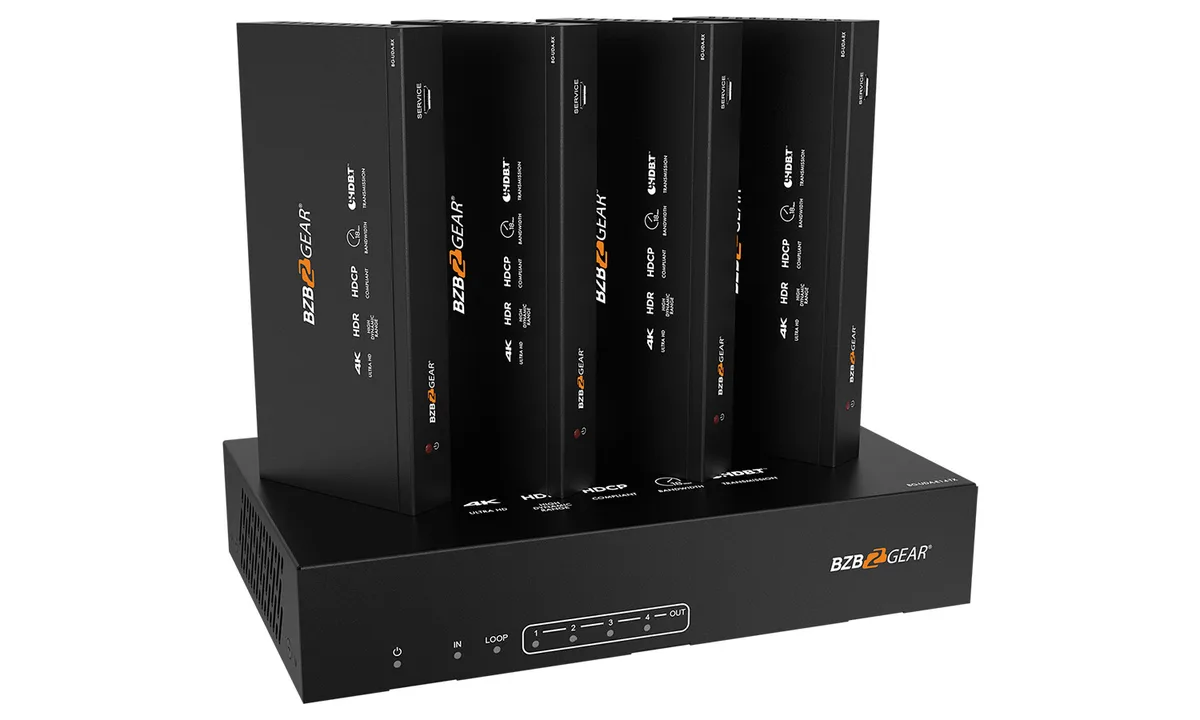

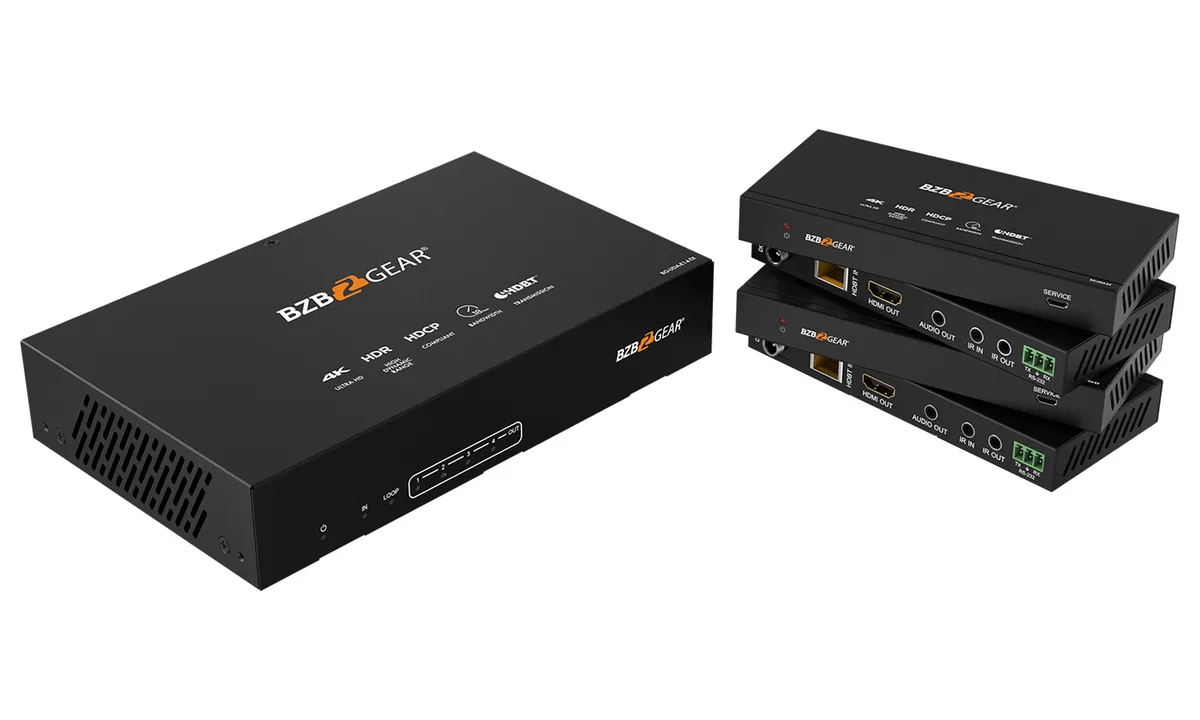

Black metal transmitter and four compact receivers with HDMI, RJ45 and audio ports

BZBGEAR

BZBGEAR BG-UDA-E14 1x4 4K HDBaseT Splitter Kit 4 Receivers 390ft

SKU CH-8A23-SSHMK

Distributes one 4K HDMI source to four remote displays up to 390 ft over category cable with IR, RS-232 and audio de-embedding

  • TypeHDMI Splitters
  • AudioLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby
  • Input Connector1×HDMI Type A (19-pin female)
  • Output Connector1×HDMI Type A (19-pin female) 4x HDBaseT OUT [RJ45] 1x Coaxi
  • Maximum ResolutionsUp to 4K2K @ 60Hz 4:4:4
  • Bandwidth594MHz/18Gbps
  • Distributes 4K 60 Hz 4:4:4 to four displays simultaneously
  • Extends signal up to 390 ft over standard category cable
  • Receivers draw power through the cable so no local supply is needed
  • Extracts digital coax and analogue audio for an external sound system
  • Compact receivers fit behind screens with RS-232 pass-through included

1x4 4K HDBaseT Splitter Kit

The BG-UDA-E14 distributes a single HDMI source to one local display and four remote displays over category cable. It supports resolutions up to 4K at 60 Hz with 4:4:4 chroma sampling and 18 Gbps bandwidth. The kit includes a transmitter and four receivers for multi-room installations.

Build Quality and Daily Connectivity

The transmitter measures 220 by 130 by 40 millimetres and weighs 853 grams, while each receiver is 140 by 65 by 18 millimetres and 246 grams. Receivers draw power over the cable, removing the need for local power supplies. Connections include HDMI loop-out, coaxial and analogue audio extraction, plus RS-232 and IR pass-through for control.

Upgrade Path and When It Is Worth It

This kit replaces shorter HDMI runs and basic splitters that cannot reach beyond a few metres. It extends 4K signals to 390 feet and 1080p signals to 490 feet over category 6 cabling. The jump is worth it when displays are spread across large venues such as bars, retail spaces or auditoriums.

Highlights

  • Distributes 4K 60 Hz 4:4:4 to four displays simultaneously
  • Extends signal up to 390 ft over standard category cable
  • Receivers draw power through the cable so no local supply is needed
  • Extracts digital coax and analogue audio for an external sound system
  • Compact receivers fit behind screens with RS-232 pass-through included

Specifications

BrandBZBGEAR
ModelBG-UDA-E14
TypeHDMI Splitters
AudioLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
Input Connector1×HDMI Type A (19-pin female)
Output Connector1×HDMI Type A (19-pin female) 4x HDBaseT OUT [RJ45] 1x Coaxial Audio OUT [RCA] 1x L/R Audio OUT [5-pin phoenix connector]
Maximum ResolutionsUp to 4K2K @ 60Hz 4:4:4
Bandwidth594MHz/18Gbps
DimensionsTransmitter: 220mm (W) × 130mm (D) × 40mm (H) / Receiver: 140mm (W) × 65mm (D) × 18mm (H)
WeightTransmitter: 853g / Receiver: 246g

Questions about this item

What HDMI standard does the BG-UDA-E14 support and what resolution does it cap at?

The transmitter is compliant with HDMI 2.0b and HDCP 2.2, supporting a maximum resolution of 4K@60Hz 4:4:4 over category cable.

What are the physical dimensions of the transmitter and each receiver?

The transmitter measures 220mm × 130mm × 40mm and weighs 853g; each receiver measures 140mm × 65mm × 18mm and weighs 246g.

How are the receivers powered and which connection step is often missed?

Receivers draw power over the category cable from the transmitter so no local supply is needed; the step often missed is linking the IR and RS-232 phoenix connectors for control passthrough.
