Compact silver metal video switcher with backlit buttons and knobs

BZBGEAR

BZBGEAR BG-QuadFusion-4K 4-Channel 4K UHD HDMI/DP Video Switcher

SKU CH-76VW-RM39Y

A 4-channel 4K UHD video switcher mixing HDMI and DisplayPort sources with picture-in-picture, special effects, dual microphone inputs and USB 3.0 capture for live streaming

  • TypeHDMI Live Streaming Video/Audio Mixer and Switcher
  • AudioMIC/ Line level (3.5mm stereo audio) x2
  • Input ConnectorHDMI / DP video signal
  • Output ConnectorHDMI video output
  • Maximum Resolutions3840x2160, 1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x7
  • 4-channel HDMI and DisplayPort input switching for multi-source productions
  • 4K UHD resolution up to 3840x2160 for broadcast-quality output
  • Dual 3.5 mm microphone and line inputs with dedicated line output for audio mixing
  • RJ45 remote control plus backlit buttons and knobs for tactile operation
  • Aluminium alloy chassis built for portable studio and on-location use

BG-QuadFusion-4K 4-Channel Switcher

The BG-QuadFusion-4K is a 4-channel 4K UHD video switcher and mixer with integrated USB 3.0 capture. It accepts four HDMI or DisplayPort inputs up to 3840x2160 resolution and provides HDMI video output. Two 3.5 mm stereo audio ports handle microphone or line-level signals for live production sound. The aluminium chassis supports portable use in broadcast or streaming environments.

Live producers needing multi-source 4K switching

This unit suits operators who require four synchronous 4K60 inputs with picture-in-picture layouts and hardware streaming encoding. It fits studios, sports venues and concert productions that rely on RJ45 remote control or front-panel buttons for fast transitions. Buyers who only need simple source selection without mixing, effects or capture should look at a basic selector instead.

Four HDMI or DisplayPort inputs at 4K60

The switcher handles four channels of HDMI or DisplayPort video at up to 3840x2160 resolution and 60 Hz refresh. This input capacity and resolution ceiling determine whether the device can accommodate the cameras, computers or media players in a given workflow.

Highlights

  • 4-channel HDMI and DisplayPort input switching for multi-source productions
  • 4K UHD resolution up to 3840x2160 for broadcast-quality output
  • Dual 3.5 mm microphone and line inputs with dedicated line output for audio mixing
  • RJ45 remote control plus backlit buttons and knobs for tactile operation
  • Aluminium alloy chassis built for portable studio and on-location use

Specifications

TypeHDMI Live Streaming Video/Audio Mixer and Switcher
AudioMIC/ Line level (3.5mm stereo audio) x2
Input ConnectorHDMI / DP video signal
Output ConnectorHDMI video output
Maximum Resolutions3840x2160, 1920x1080, 1680x1050, 1600x900, 1440x1050, 1366x768, 1360x768, 1280x102, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600

Questions about this item

Does the BG-QuadFusion-4K include cables or a power supply in the box?

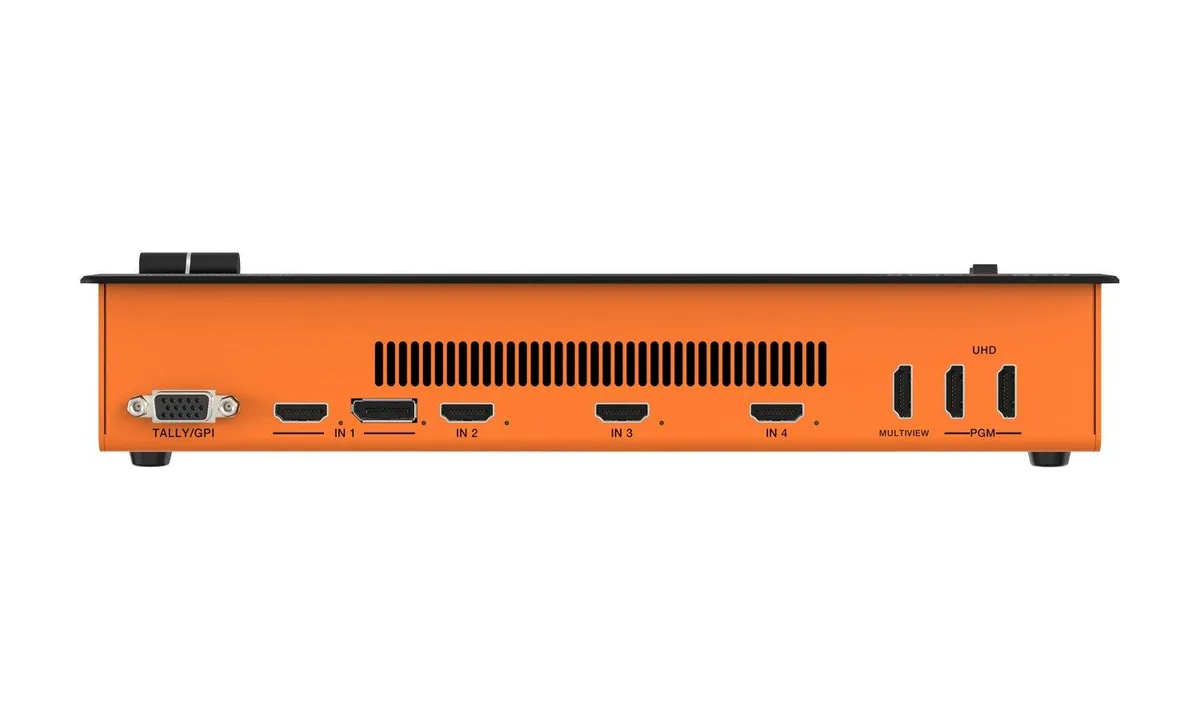

The switcher provides four HDMI and DisplayPort inputs, two 3.5 mm microphone or line inputs, one line output, an RJ45 remote port, tally connections and a USB 3.0 capture interface. Cables and the external power adapter are not included and must be sourced separately.

Should I choose the HDMI or DisplayPort inputs for my 4K60 sources?

All four channels accept both HDMI and DisplayPort signals at up to 3840x2160 resolution, so you can mix HDMI cameras and DP computers on the same unit without selecting a single version.

What does the 4K60 rating mean when the switcher is connected to a streaming PC?

Each input and the HDMI outputs handle 3840x2160 at 60 Hz, and the USB 3.0 capture path delivers that same 4K60 signal to streaming software for live production.
