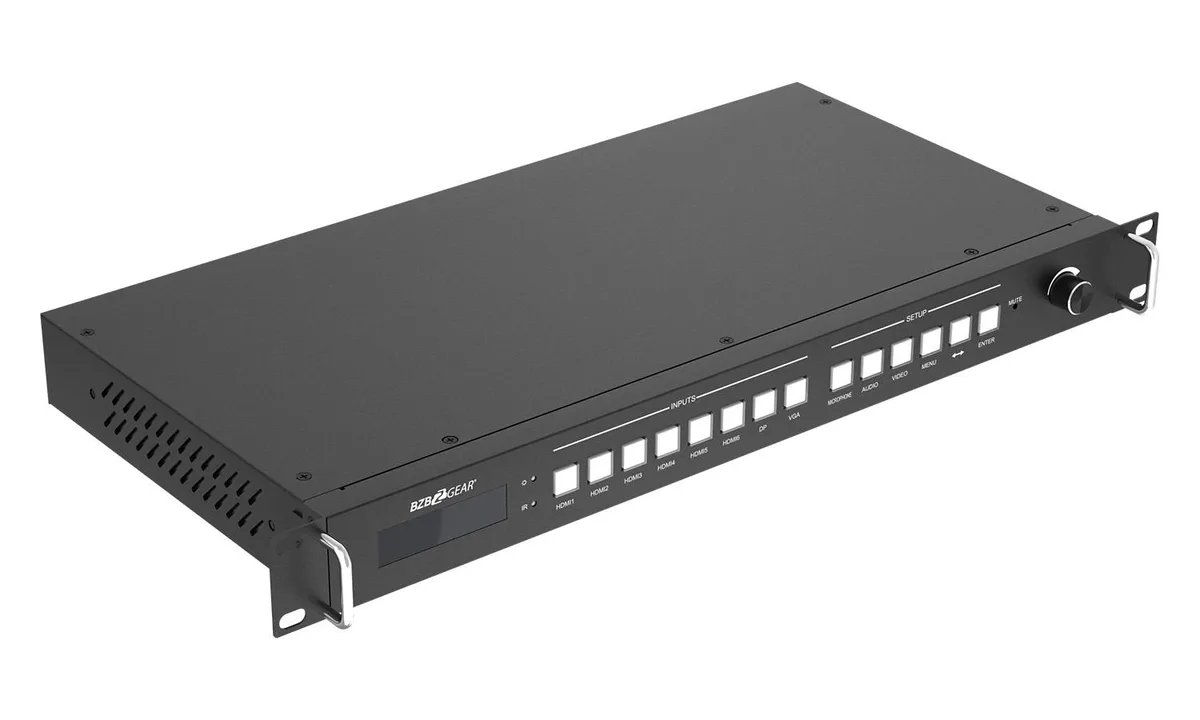

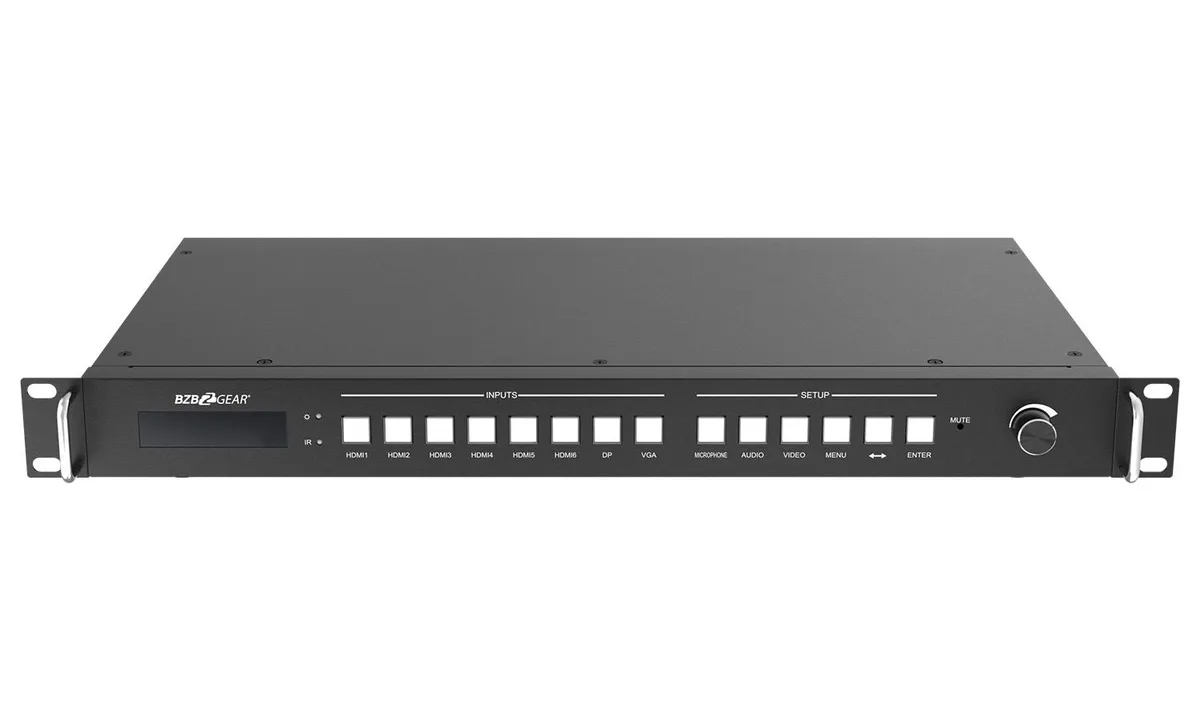

Black rack-mount chassis with front HDMI, DisplayPort, VGA inputs and rear HDMI, HDBaseT outputs

BZBGEAR

BZBGEAR BG-PSC8X2HDB 8x2 4K UHD seamless presentation video switch

SKU CH-MA39-T8TA7

An 18 Gbps 8×2 seamless presentation switcher with HDMI, DisplayPort and VGA inputs, simultaneous HDMI and HDBaseT outputs extending 4K to 45 metres and 1080p to 70 metres.

  • Type8×2 18Gbps UHD Seamless Presentation Switcher
  • Maximum ResolutionsAuto, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@30Hz, 1920x1
  • Bandwidth18Gbps
  • Dimensions430mm (W)×220mm (D)×44mm (H)
  • Weight3.2Kg
  • Seamless 4K@60 4:4:4 switching across eight inputs
  • HDBaseT extends 1080p up to 70 metres or 4K up to 45 metres
  • Integrated mic mixer with adjustable trim and 48V phantom power
  • Built-in 20W stereo amplifier drives two speakers directly
  • EDID management plus bi-directional IR, RS-232 and IP control

8x2 4K UHD Seamless Presentation Switcher

The BG-PSC8X2HDB is an 18Gbps 8x2 seamless 4K presentation switcher designed for professional AV installations. It accepts eight video inputs including six HDMI ports, one DisplayPort and one VGA port. Automatic input scaling delivers resolutions up to 3840x2160@60Hz 4:4:4. Simultaneous HDMI and HDBaseT outputs provide flexible distribution.

Integrators needing multi-source 4K switching

This unit suits installers who require seamless switching between multiple 4K sources and integrated audio handling. The built-in microphone mixer with 48V phantom power and 20W stereo amplifier supports live presentations. Buyers who only need basic HDMI switching without scaling, HDBaseT extension or microphone support should consider simpler matrix switchers.

HDBaseT extension up to 70 meters at 1080p

The HDBaseT output extends video signals up to 70 meters at 1920x1080 resolution or 45 meters at 3840x2160. This single specification determines whether the switcher reaches displays in large venues without additional extenders. If the cable run exceeds these distances or fibre transport is required, a different transmission method must be used.

Highlights

  • Seamless 4K@60 4:4:4 switching across eight inputs
  • HDBaseT extends 1080p up to 70 metres or 4K up to 45 metres
  • Integrated mic mixer with adjustable trim and 48V phantom power
  • Built-in 20W stereo amplifier drives two speakers directly
  • EDID management plus bi-directional IR, RS-232 and IP control

Specifications

BrandBZBGEAR
ModelBG-PSC8X2HDB
Type8×2 18Gbps UHD Seamless Presentation Switcher
Maximum ResolutionsAuto, 3840x2160@60Hz, 3840x2160@50Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1920x1080@50Hz, 1280x720@60Hz, 1024x768@60Hz, 1360x768@60Hz, 1600x1200@60Hz, 1920x1200@60Hz.
Bandwidth18Gbps
Dimensions430mm (W)×220mm (D)×44mm (H)
Weight3.2Kg

Questions about this item

Will the BG-PSC8X2HDB accept my legacy VGA laptop alongside modern HDMI and DisplayPort sources?

Yes, the switcher provides 6 HDMI ports, 1 DisplayPort and 1 VGA input, so older VGA equipment connects directly without adapters.

How can I confirm the 4K@60 4:4:4 signal is passing correctly after installation?

Check the front-panel LCD for the active input resolution and use the EDID management menu to verify the display reports 3840x2160@60Hz 4:4:4.

Which cables and accessories are included, and what must I purchase separately for a typical install?

The unit ships with power cord, rack ears, IR remote and RS-232 cable; you will need to supply HDMI, DisplayPort, VGA, HDBaseT and speaker cables.
