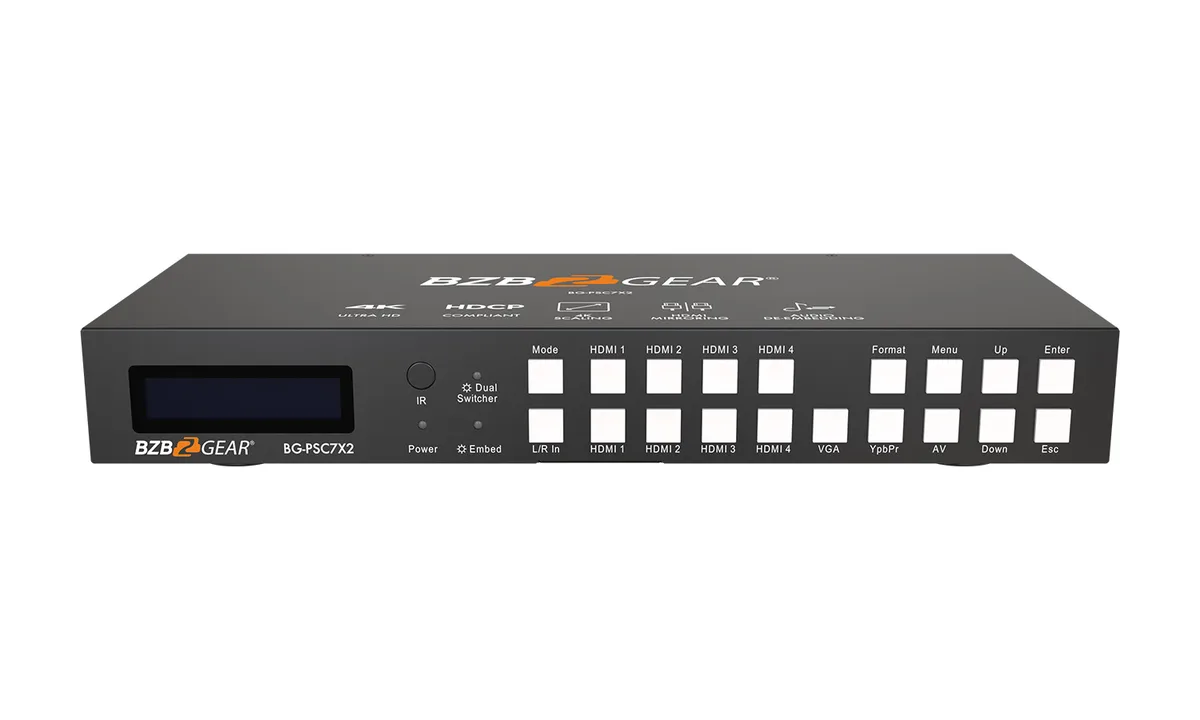

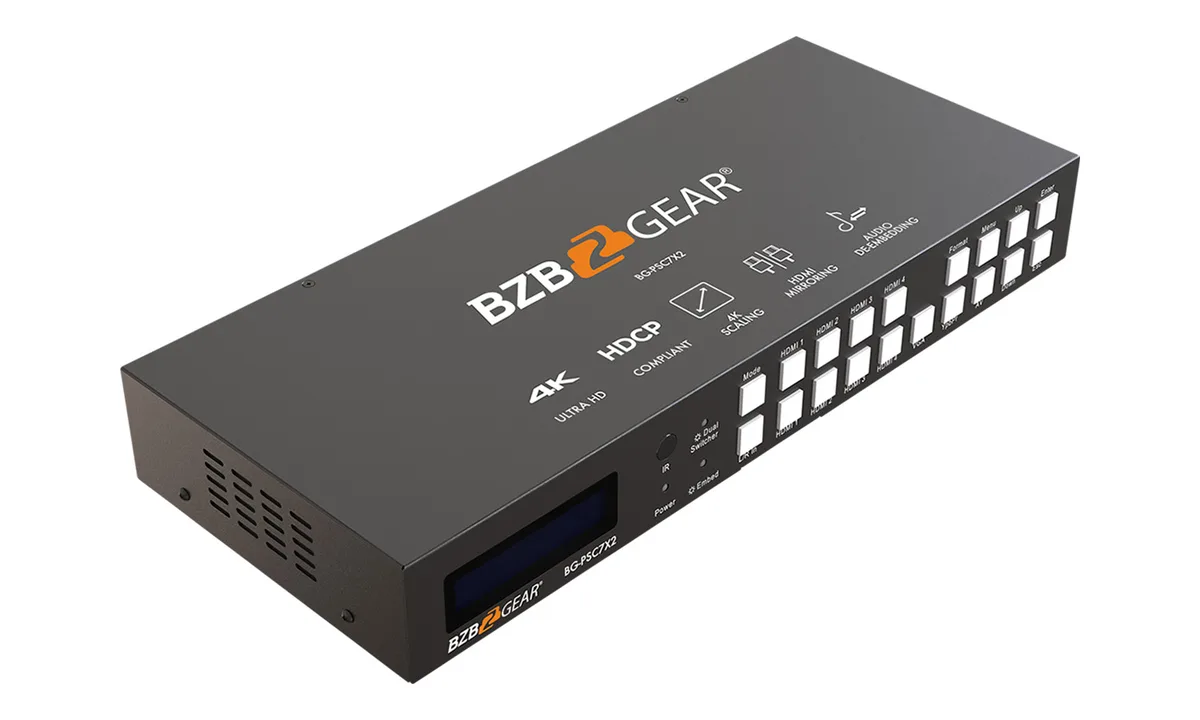

Black rectangular 7×2 4K presentation switcher scaler with front LCD and multiple input ports

BZBGEAR

BZBGEAR BG-PSC7X2 7×2 4K UHD Presentation Switcher Scaler

SKU CH-EX82-M5V3W

A 7×2 presentation switcher scaler routes four HDMI, VGA, component and composite sources to two mirrored HDMI outputs up to 4K@30Hz

  • Type7×2 4K Presentation Switcher Scaler
  • ColorBlack
  • AudioAudio Input Connectors: 2x 3.5mm stereo jack, 4x RCA (2 x L/
  • Input Connector4x HDMI Type A, 1x VGA, 1xYPbPr,1x AV
  • Output Connector2x HDMI Type A
  • Maximum Resolutions4K@30Hz 4:4:4, full 3D
  • Seven legacy inputs connect VGA, component and composite sources
  • Dual mirrored HDMI outputs drive two displays simultaneously
  • Front panel, IR, RS-232 and TCP/IP control options
  • Embedded and de-embedded audio via 3.5 mm and coaxial S/PDIF
  • Integrated scaler up-converts 640 × 480 to 1920 × 1080 @ 60 Hz

Seven-input 4K presentation switcher

The BG-PSC7X2 is a 7×2 presentation switcher scaler that accepts four HDMI sources, VGA, component and composite video. It scales signals up to 4K@30Hz 4:4:4 and provides two mirrored HDMI outputs for dual-display setups. Control is available via front panel, IR remote, RS-232 and TCP/IP, making it suitable for auditoriums, classrooms and conference rooms.

Verify source outputs and control method

Confirm your source devices can output resolutions the switcher accepts, up to 4K@30Hz 4:4:4 with 10.2Gbps bandwidth. Ensure you have the required cables for HDMI, VGA, component or composite connections and 3.5mm or RCA audio leads. Decide whether you will use front-panel buttons, the IR remote, RS-232 or TCP/IP for daily operation.

Suits multi-format AV installations needing dual

Ideal for integrators and venues that must route legacy and modern sources to two mirrored screens with embedded or de-embedded audio. Not suited for applications requiring 4K@60Hz switching, more than seven simultaneous inputs, or non-mirrored independent output content.

Highlights

  • Seven legacy inputs connect VGA, component and composite sources
  • Dual mirrored HDMI outputs drive two displays simultaneously
  • Front panel, IR, RS-232 and TCP/IP control options
  • Embedded and de-embedded audio via 3.5 mm and coaxial S/PDIF
  • Integrated scaler up-converts 640 × 480 to 1920 × 1080 @ 60 Hz

Specifications

BrandBZBGEAR
ModelBG-PSC7X2
Type7×2 4K Presentation Switcher Scaler
ColorBlack
AudioAudio Input Connectors: 2x 3.5mm stereo jack, 4x RCA (2 x L/R) / Audio Output Connectors: 1x 3.5mm stereo jack,1x RCA (SPDIF)
Input Connector4x HDMI Type A, 1x VGA, 1xYPbPr,1x AV
Output Connector2x HDMI Type A
Maximum Resolutions4K@30Hz 4:4:4, full 3D
Bandwidth10.2Gbps
Dimensions323mm x 135mm x 44mm , without feet
Weight1.2Kg

Questions about this item

What cables and accessories are included in the box versus what must be purchased separately?

The switcher unit itself is supplied; HDMI, VGA, component and composite cables, IR remote batteries and any rack-mount brackets are not included and must be sourced separately.

Which input group should I use for 4K@30Hz 4:4:4 sources and which for legacy 1080p gear?

Use the four HDMI inputs for 4K@30Hz 4:4:4 signals; the VGA, YPbPr and composite inputs handle legacy sources up to 1080p and are scaled to 1920x1080@60Hz.

What does the 4K@30Hz 4:4:4 rating mean when the unit is connected to real displays?

Each of the two mirrored HDMI outputs can pass a 4K signal at 30 frames per second with full 4:4:4 colour sampling, while the scaler up-converts lower resolutions to 1080p at 60Hz.
