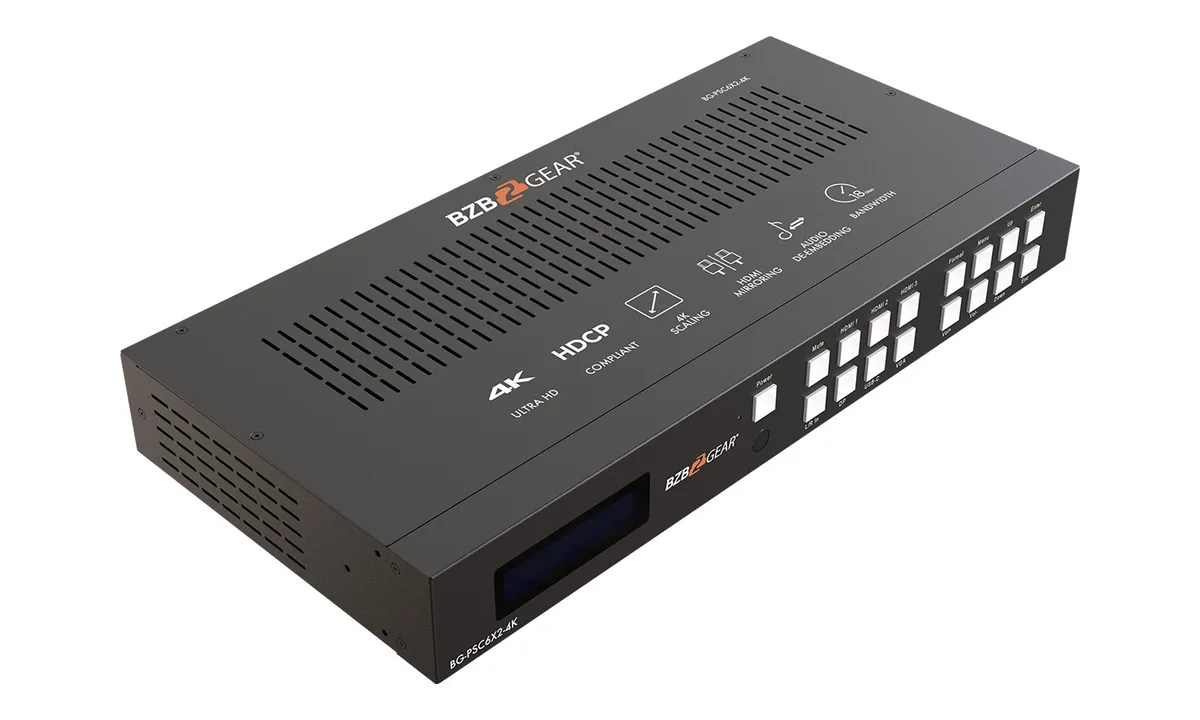

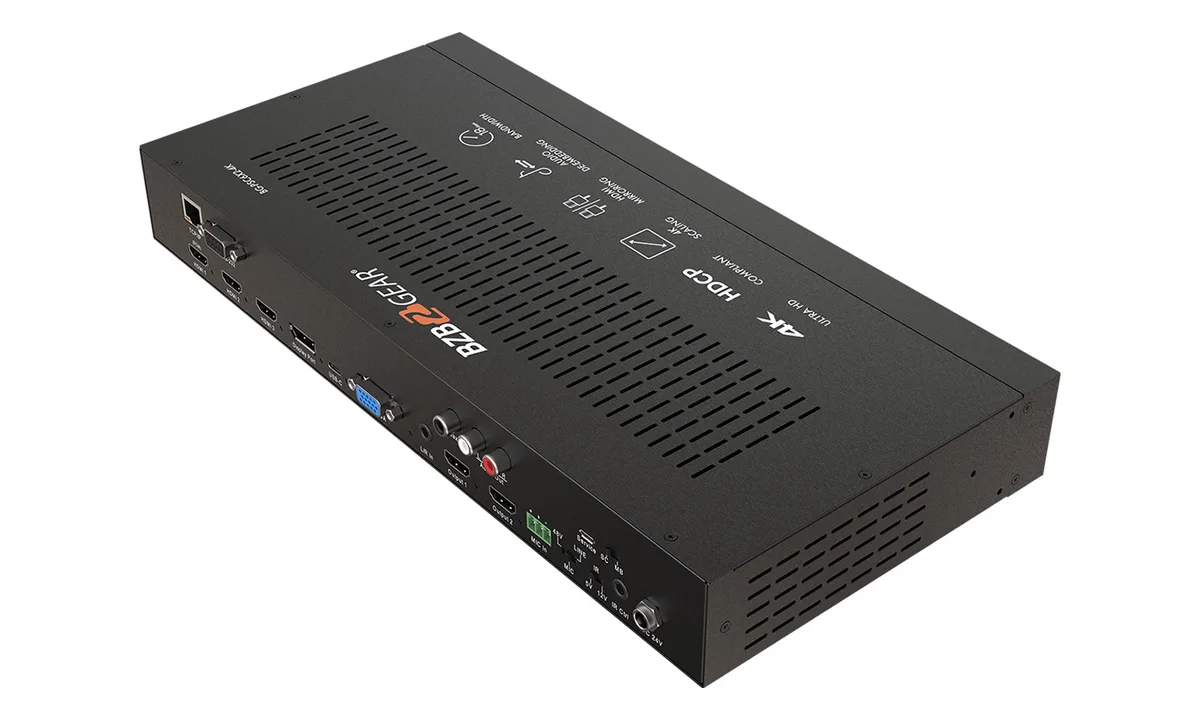

Black metal box with six video inputs and two HDMI outputs on the rear

BZBGEAR

BZBGEAR BG-PSC6x2-4K 6×2 4K Presentation Switcher Scaler

SKU CH-TT3A-59T5B

Scales sources up to 4K 60 Hz 4:4:4 across six mixed inputs with dual mirrored HDMI outputs and flexible audio routing

  • Type6×2 4K Conference Room Presentation Switcher
  • ColorBlack
  • Audio1x 3.5mm stereo jack,1x RCA (SPDIF)
  • Input Connector3x HDMI Type A, 1x VGA, 1x USB-C,1x DP
  • Output Connector2x HDMI Type A
  • Maximum Resolutions4K@60Hz 4:4:4, HDR10, HLG and full 3D
  • Supports 4K@60Hz 4:4:4 HDR10 for crisp visuals
  • Six versatile inputs including HDMI, USB-C, DP and VGA
  • Two mirrored HDMI outputs drive dual displays simultaneously
  • Microphone input with 48V phantom power for clear audio
  • Control via front panel, IR, RS-232 or IP commands

Conference Room Switcher

The BZBGEAR BG-PSC6x2-4K is a six-input, two-output presentation switcher built for conference rooms, classrooms and auditoriums. It accepts three HDMI, one DisplayPort, one USB-C and one VGA source, then scales every signal up to 4096x2160 at 60Hz with 4:4:4 colour sampling. Two mirrored HDMI outputs drive dual displays simultaneously. Front-panel buttons, an IR remote, RS-232 and IP control give installers flexible operation.

18 Gbps Bandwidth Limit

Each HDMI input runs at 18 Gbps, capping the pipeline at 4K@60Hz 4:4:4 with HDR10 and HLG support. The VGA path is limited to analogue bandwidth and requires the adjacent 3.5mm jack for audio. USB-C and DisplayPort inputs share the same scaler ceiling, so no input exceeds the 18 Gbps ceiling. EDID management via the LCD menu helps maintain handshake stability across mixed source types.

Replaces Separate Scaler and Audio Boxes

This unit consolidates a video scaler, audio embedder, de-embedder and microphone preamp with 48V phantom power into one 345mm wide chassis. It removes the need for a standalone scaler plus a separate audio processor when driving two mirrored 4K displays from mixed digital and analogue sources. The jump is worth it when a single rack-mount device must handle HDMI, DisplayPort, USB-C and VGA together with microphone mixing and coax or RCA audio extraction.

Highlights

  • Supports 4K@60Hz 4:4:4 HDR10 for crisp visuals
  • Six versatile inputs including HDMI, USB-C, DP and VGA
  • Two mirrored HDMI outputs drive dual displays simultaneously
  • Microphone input with 48V phantom power for clear audio
  • Control via front panel, IR, RS-232 or IP commands

Specifications

BrandBZBGEAR
ModelBG-PSC6x2-4K
Type6×2 4K Conference Room Presentation Switcher
ColorBlack
Audio1x 3.5mm stereo jack,1x RCA (SPDIF)
Input Connector3x HDMI Type A, 1x VGA, 1x USB-C,1x DP
Output Connector2x HDMI Type A
Maximum Resolutions4K@60Hz 4:4:4, HDR10, HLG and full 3D
Bandwidth18Gbps
Dimensions345mm x 165mm x 45mm
Weight2.0Kg
Style4K60Hz

Questions about this item

Should I pick the HDMI, DisplayPort, USB-C or VGA input for my laptop?

Use USB-C if your laptop supports video over Type-C; otherwise HDMI or DisplayPort give full 4K@60Hz 4:4:4, while VGA is limited to analog sources and needs the 3.5mm jack for audio.

Will the 18Gbps bandwidth handle 4K@60Hz 4:4:4 HDR in my conference room?

Yes — 18Gbps is the HDMI 2.0 ceiling and carries 4K@60Hz 4:4:4 with HDR10 or HLG without compression.

Does the RS-232 port let me automate switching from a control system?

The DB-9 RS-232 interface accepts ASCII or hex commands for input selection, volume, EDID and power, enabling Crestron, Extron or custom automation.
