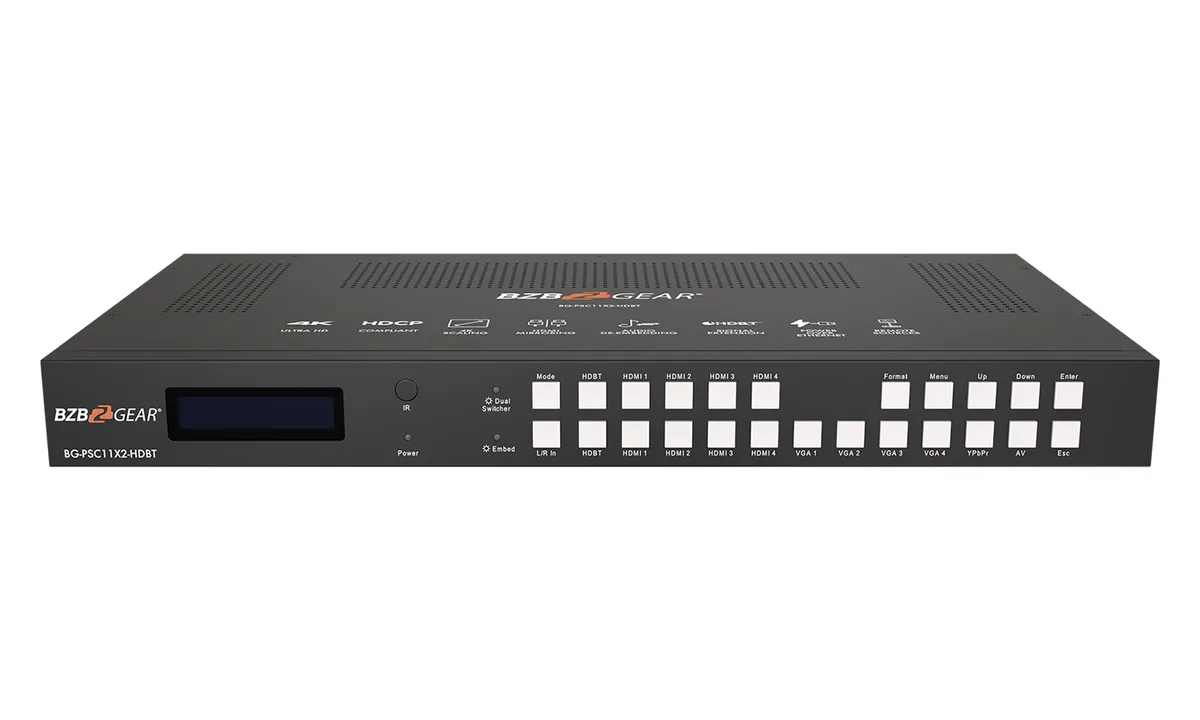

Black rack-mount switcher, 438mm wide, front panel buttons and ports

BZBGEAR

BZBGEAR BG-PSC11X2-HDBT 11x2 4K@30Hz Presentation Scaler Switcher

SKU CH-2WX1-VAA3K

Eleven-input scaler switcher handles HDMI, VGA, component, composite and HDBaseT up to 4K@30Hz with HDBaseT reach of 330ft

  • Type11X2 Presentation Scaler Switcher
  • ColorBlack
  • AudioAudio Input Connectors: 11x 3.5mm stereo jack / Audio Output
  • Input Connector4x HDMI Type A, 4x VGA, 1x RJ45, 1xYPbPr, 1x AV
  • Output Connector1x HDMI Type A, 1x RJ45
  • Maximum Resolutionsup to 4K@30Hz
  • 11 mixed inputs connect legacy and modern sources
  • HDBaseT extends signals up to 330 feet over Cat6
  • Integrated scaler converts 640×480 up to 1080p60
  • 4K@30Hz pass-through keeps ultra-HD content crisp
  • Audio embed and extract via 3.5 mm and S/PDIF

Multi-format 11-input presentation switcher

The BG-PSC11X2-HDBT combines eleven video inputs — four HDMI, four VGA, one component, one composite and one HDBaseT — with a built-in scaler that converts legacy signals up to 1920x1080@60Hz. It supports resolutions up to 4K@30Hz and provides 10.2Gbps bandwidth for professional AV installations.

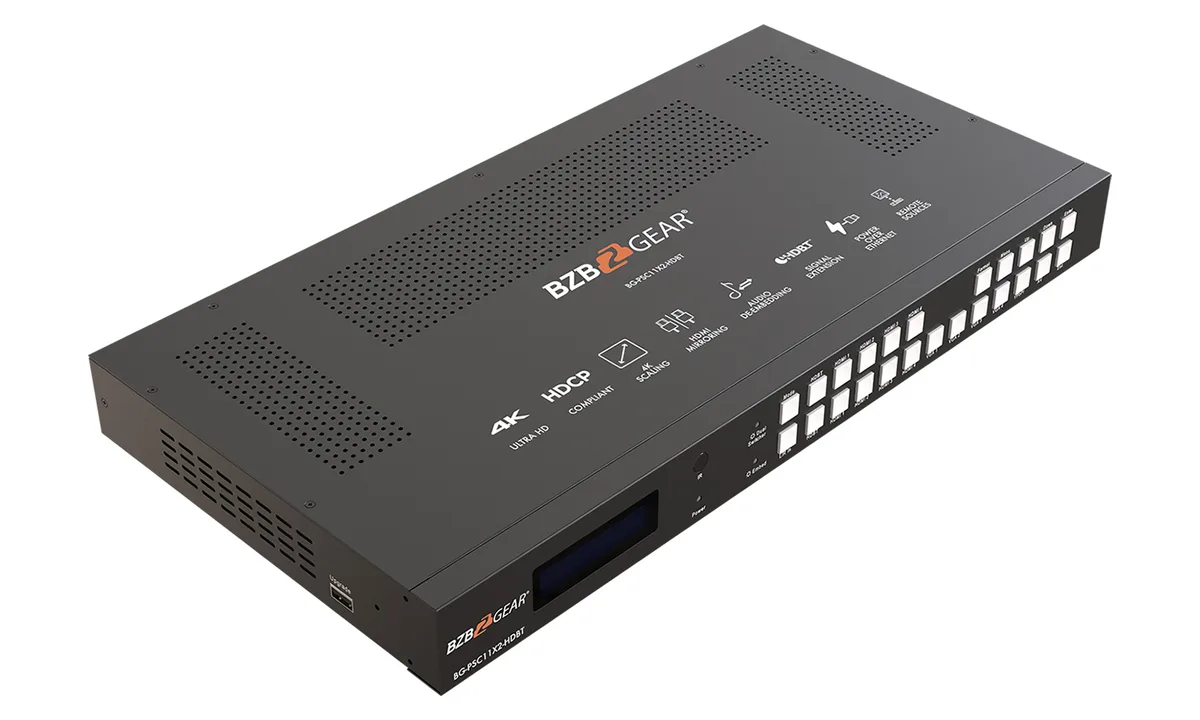

Rack-mountable 1U chassis with HDBaseT reach

The 438mm x 225mm x 44mm black enclosure weighs 1.2Kg and fits standard racks. HDBaseT input and output extend video, audio and control up to 330ft over Cat6. Dual LAN ports enable TCP/IP control while RS-232 and IR give additional integration paths. Audio embeds via eleven 3.5mm inputs and extracts through 3.5mm stereo and RCA SPDIF outputs.

Ideal for mixed-source control rooms

Suits venues that must switch between modern HDMI sources and analogue VGA, component or composite gear on a single 4K display. Not for users who need 4K@60Hz scaling on both outputs, more than two simultaneous scaled images, or additional HDMI outputs beyond the single HDMI and HDBaseT pair provided.

Highlights

  • 11 mixed inputs connect legacy and modern sources
  • HDBaseT extends signals up to 330 feet over Cat6
  • Integrated scaler converts 640×480 up to 1080p60
  • 4K@30Hz pass-through keeps ultra-HD content crisp
  • Audio embed and extract via 3.5 mm and S/PDIF

Specifications

BrandBZBGEAR
ModelBG-PSC11X2-HDBT
Type11X2 Presentation Scaler Switcher
ColorBlack
AudioAudio Input Connectors: 11x 3.5mm stereo jack / Audio Output Connectors: 1x 3.5mm stereo jack,1x RCA (SPDIF)
Input Connector4x HDMI Type A, 4x VGA, 1x RJ45, 1xYPbPr, 1x AV
Output Connector1x HDMI Type A, 1x RJ45
Maximum Resolutionsup to 4K@30Hz
Bandwidth10.2Gbps
Dimensions438mm x 225mm x 44mm , without feet
Weight1.2Kg

Questions about this item

Does the 10.2Gbps bandwidth limit sustained 4K@30Hz throughput?

The switcher operates at 10.2Gbps bandwidth, which supports the stated 4K@30Hz maximum resolution for continuous operation.

How much heat or fan noise does the 1.2Kg unit produce when running all day?

The compact 438mm x 225mm x 44mm chassis weighs 1.2Kg and uses passive cooling, so it runs silently with minimal heat during extended use.

What control system must I already have to operate the switcher via TCP/IP or RS-232?

You need a control processor or automation system that can send TCP/IP or RS-232 commands to the switcher’s dual LAN and RS-232 ports for remote management.
