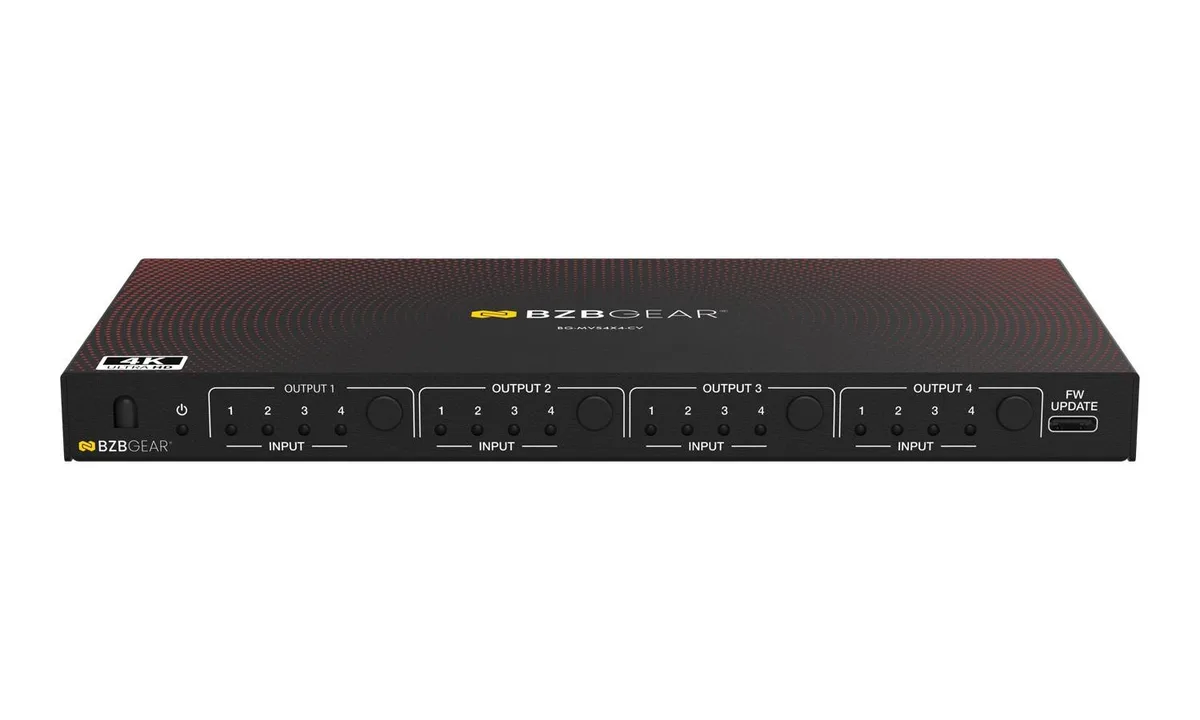

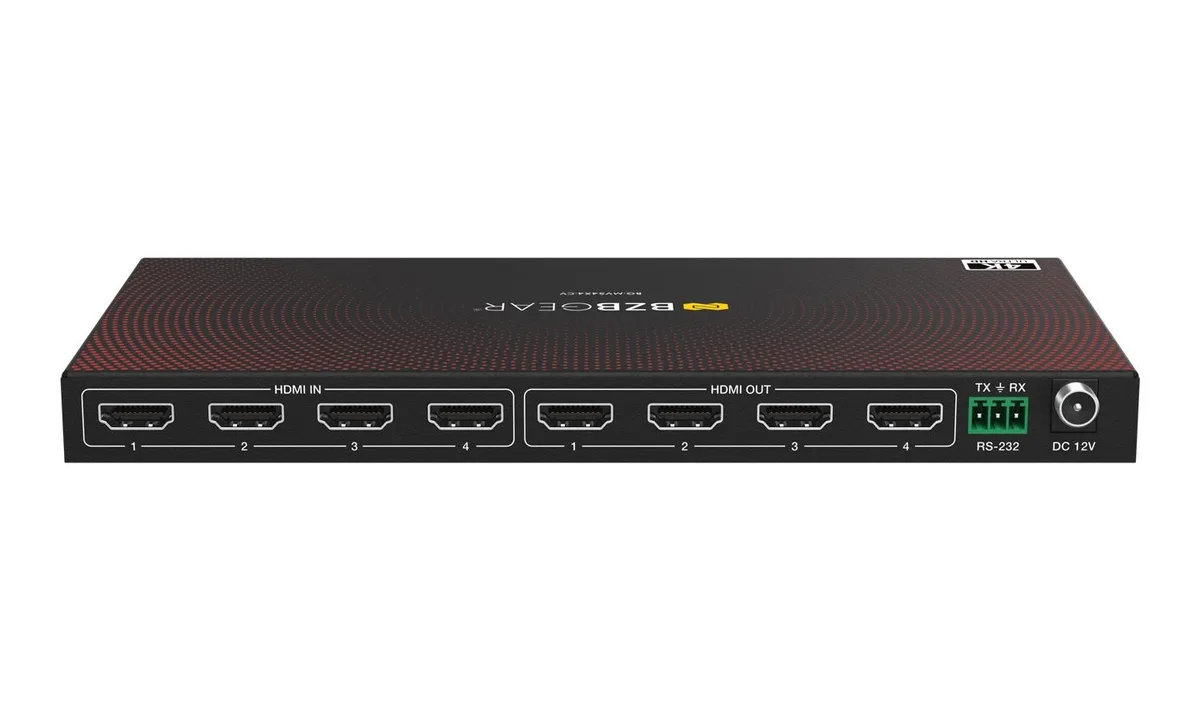

Black metal box with four HDMI ports on each side, front buttons, IR sensor, RS-232 port, mounting ears

BZBGEAR

BZBGEAR BG-MVS4X4-CV 4x4 4K HDMI Matrix Switcher Video Wall Processor

SKU CH-JF9X-Q0E02

Routes four HDMI sources to four displays with seamless 4K@30Hz switching, video-wall layouts, and per-output scaling

  • ColorBlack
  • AudioLPCM 2.0, LPCM 5.1, Dolby 2.0, Dolby 5.1, Dolby Digital Plus
  • Input Connector4x INPUT [HDMI Type A, 19-pin female]
  • Output Connector4x OUTPUT [HDMI Type A, 19-pin female]
  • Maximum Resolutions4096x2160p30Hz, 3840x2160p30Hz, 1920x1200p60Hz, 1920x1080p60
  • Bandwidth10.2Gbps
  • Seamless 4×4 HDMI routing with instant, loss-free switching
  • Video wall processor supporting 2×2, 4×1 and 1×4 layouts
  • Output scaling to 720p, 1080p, 1920×1200 or 4K@30Hz
  • Audio pass-through for LPCM, Dolby Digital, Dolby Digital Plus and DTS
  • Front panel, IR remote and RS-232 control with HDCP 1.4 compliance

4x4 HDMI Matrix Switcher and Video Wall Processor

The BZBGEAR BG-MVS4X4-CV routes any of four HDMI sources to any of four HDMI displays with seamless switching and zero image loss. It also functions as a video wall processor, splitting a single source across multiple screens in 2x2, 4x1 or 1x4 layouts. Input resolutions up to 4096x2160p30Hz and 3840x2160p30Hz are supported with 10.2Gbps bandwidth.

Installers needing flexible routing

This unit suits AV integrators, digital signage deployments and live event setups that require instant source switching and multi-screen configurations. It is not for users who need HDMI 2.0 bandwidth at 4K60Hz or HDCP 2.2 compliance for protected 4K streaming content. Buyers requiring more than four inputs or outputs should look at larger matrix frames.

Verify source and display capabilities before

Confirm that your sources output resolutions listed in the supported modes and that your displays accept the scaled output resolutions of 720p, 1080p, 1920x1200 or 4K@30Hz. Ensure your control system can use front panel buttons, IR remote or RS-232 commands. Check that the 12V locking power adapter matches your local mains supply.

Highlights

  • Seamless 4×4 HDMI routing with instant, loss-free switching
  • Video wall processor supporting 2×2, 4×1 and 1×4 layouts
  • Output scaling to 720p, 1080p, 1920×1200 or 4K@30Hz
  • Audio pass-through for LPCM, Dolby Digital, Dolby Digital Plus and DTS
  • Front panel, IR remote and RS-232 control with HDCP 1.4 compliance

Specifications

BrandBZBGEAR
ModelBG-MVS4X4-CV
ColorBlack
AudioLPCM 2.0, LPCM 5.1, Dolby 2.0, Dolby 5.1, Dolby Digital Plus, DTS 2.0, DTS 5.1
Input Connector4x INPUT [HDMI Type A, 19-pin female]
Output Connector4x OUTPUT [HDMI Type A, 19-pin female]
Maximum Resolutions4096x2160p30Hz, 3840x2160p30Hz, 1920x1200p60Hz,
1920x1080p60Hz, 1920x1080p50Hz, 1600x1200p60Hz,
1600x900p60Hz, 1440x900p60Hz, 1360x768p60Hz,
1280x1024p60Hz, 1280x720p60Hz, 1280x720p50Hz, 1024x768p60Hz
Bandwidth10.2Gbps
Dimensions8.7in x 4.1in x 0.75in
Weight1.1 lbs
Package Contents1x 4K 4x4 HDMI Seamless Matrix Switcher and Video Wall Processor
1x Matrix IR Remote
1x 3pin-3.5mm Phoenix Connector (male)
2x Mounting Ear
4x Machine Screw (KM3*4)
1x 12V/1A Locking Power Adapter
1x User Manual

Questions about this item

What HDMI sources and displays do I need to connect to the four inputs and four outputs?

Connect up to four HDMI sources to the 19-pin female input ports and up to four HDMI displays to the 19-pin female output ports using standard HDMI cables.

Will the switcher downscale a 4K@30Hz source to 1080p for an older display connected to one output?

Yes, each output can independently scale the incoming signal to 1080p, 720p, 1920x1200 or 4K@30Hz regardless of the other outputs.

How can I verify seamless switching and correct video wall layout after installation?

Use the front panel buttons or IR remote to switch inputs instantly with no image loss, then confirm the 2x2, 4x1 or 1x4 layout appears correctly across the connected screens.
