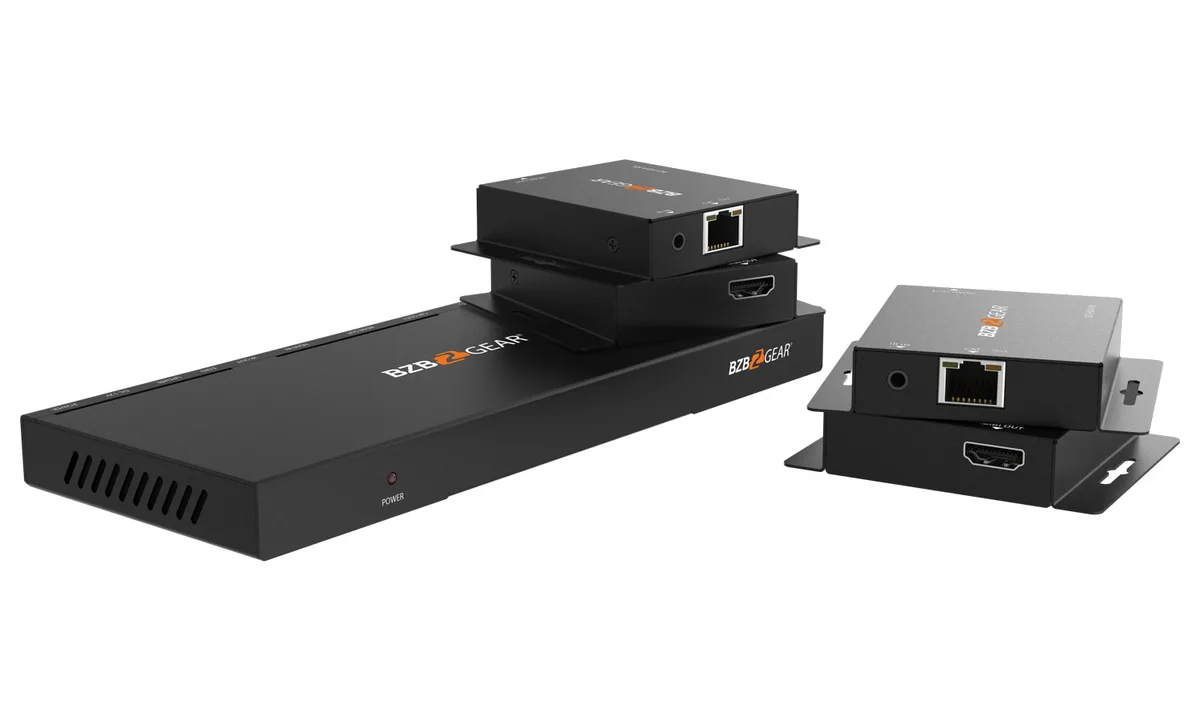

Black HDMI splitter transmitter and four small receivers with RJ45 ports

BZBGEAR

BZBGEAR BG-HDA-E14 1x4 HDMI splitter kit 4 receivers 230ft

SKU CH-33BQ-CN3E1

Splits one HDMI source to four displays up to 230 ft over CAT6 with 4K at 30 Hz and 1080p at 60 Hz, includes Power over Cable receivers and IR passthrough

  • TypeHDMI Splitters
  • AudioLPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
  • ColorBlack
  • Maximum Resolutions480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)
  • Bandwidth297MHz/10.2Gbps
  • DimensionsTransmitter: 210mm (W) x 83mm (D) x 18mm (H) Receiver: 79.5m
  • Split one HDMI source to four displays up to 230 ft over CAT cable
  • Receivers powered through the cable, no extra adapters needed
  • HDMI loop-out lets you keep a local monitor connected
  • Supports 4K at 30 Hz and 1080p at 60 Hz with full 4:4:4 colour
  • Carries LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio formats

HDMI splitter kit with four receivers

The BZBGEAR BG-HDA-E14 splits one HDMI source to four remote displays over category cable. It transmits 4K at 30 Hz up to 50 metres and 1080p at 60 Hz up to 70 metres. Power over cable means the receivers need no local power supply. An HDMI loop-out lets you connect a nearby monitor as well.

Installers needing long runs without extra power

Suited for digital signage, classrooms or home distribution where a single source feeds multiple screens across a building. The 297 MHz bandwidth and HDCP 1.4 compliance protect premium content. Not for users who require 4K at 60 Hz, HDR metadata or fibre-optic reach beyond 70 metres.

4K at 30 Hz over 50 metres

This distance-versus-resolution trade-off is the deciding spec. Choose this kit when your longest cable run stays within those limits and 30 Hz 4K is acceptable. If any display needs 4K at 60 Hz, a different extender class is required.

Highlights

  • Split one HDMI source to four displays up to 230 ft over CAT cable
  • Receivers powered through the cable, no extra adapters needed
  • HDMI loop-out lets you keep a local monitor connected
  • Supports 4K at 30 Hz and 1080p at 60 Hz with full 4:4:4 colour
  • Carries LPCM 7.1, Dolby TrueHD and DTS-HD Master Audio formats

Specifications

BrandBZBGEAR
ModelBG-HDA-E14
TypeHDMI Splitters
AudioLPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
ColorBlack
Maximum Resolutions480i ~1080p50/60Hz, 4Kx2K@30Hz (4:4:4)
Bandwidth297MHz/10.2Gbps
DimensionsTransmitter: 210mm (W) x 83mm (D) x 18mm (H) Receiver: 79.5mm (W) x 69mm (D) x 16.5mm (H)
WeightTransmitter: 448g; Receiver: 130g

Questions about this item

What HDMI version and bandwidth does the BG-HDA-E14 use, and what resolution does that cap at?

The splitter is HDMI 1.4 compliant with 10.2Gbps bandwidth, limiting output to 4K at 30Hz 4:4:4 or 1080p at 60Hz.

What are the transmitter and receiver dimensions so I can check rack or shelf fit?

Transmitter measures 210mm wide, 83mm deep, 18mm high; each receiver is 79.5mm wide, 69mm deep, 16.5mm high.

How is the kit powered and which step do installers often miss?

Only the transmitter needs a power supply; receivers draw power over the CAT cable. The common mistake is forgetting to connect the transmitter’s power adapter before linking the CAT runs.
