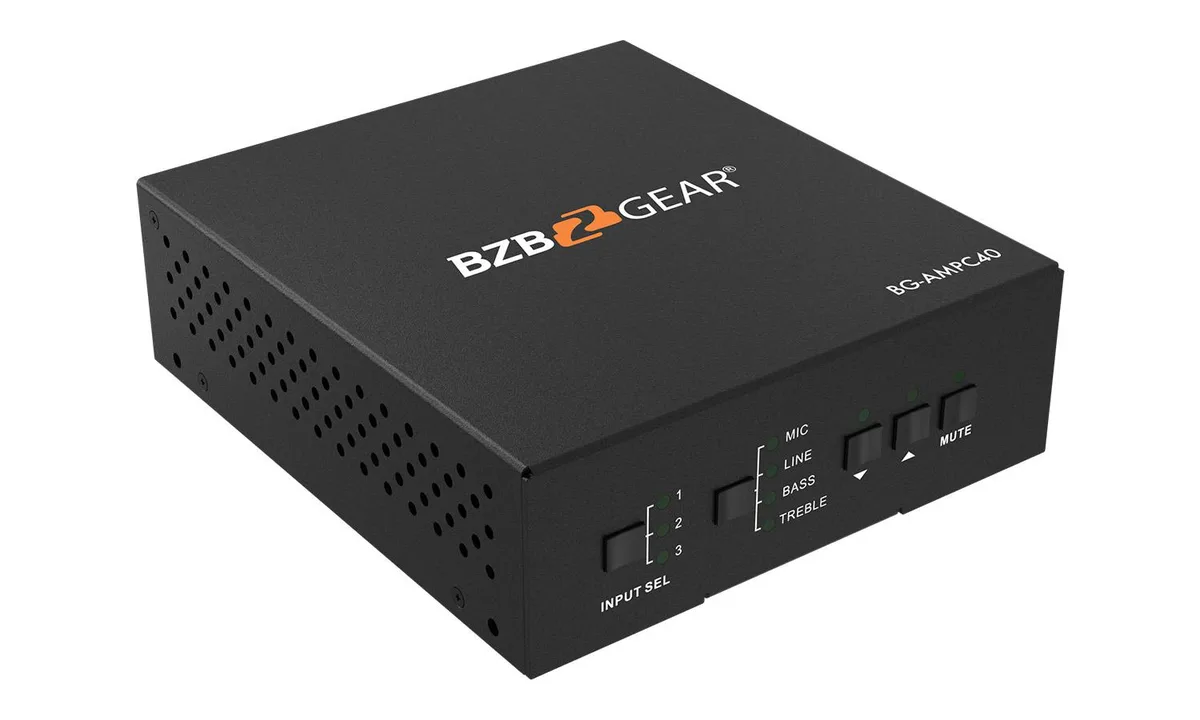

Compact black metal 1U amplifier with front panel controls and captive screw terminals

BZBGEAR

BZBGEAR BG-AMPC40 2-Channel 40W 70/100V Audio Amplifier

SKU CH-H3VT-DHXTM

A 40-watt Class-D stereo amplifier with switchable 70V or 100V output, microphone input with phantom power, and RS232, IR, and front-panel control in a compact 1U metal chassis

  • TypeAudio Splitters
  • Input Connector(2) RCA (1) 3.5mm Jack (1) 3-pole 3.81mm Captive Screw Conne
  • Output Connector(1) 3-pole 3.81mm Captive Screw Connector
  • DimensionsW130 x H44 x D144mm (1U high)
  • Weight860g
  • 40W output at 70V or 100V for distributed audio systems
  • 3-level microphone input with mixer, ducking and 48V phantom power
  • Compact 1U chassis 130mm wide fits tight rack spaces
  • Control via RS232, IR remote or front-panel push buttons
  • Metal enclosure, 860g weight, built for long-term installation

Compact 40W amplifier for distributed audio

The BG-AMPC40 is a 2-channel Class-D amplifier that delivers 40 watts at switchable 70V or 100V outputs. It suits installers who need a small 1U unit for background music or paging in retail, education or hospitality spaces where full-sized amplifiers will not fit.

Handles line, optical and mic sources with ducking

Two RCA inputs, a 3.5mm jack, a TOSLINK port and a balanced microphone input with selectable 48V phantom power provide flexible source mixing. The built-in ducking function automatically lowers background audio when the microphone is active, and the 3-level mic mixer keeps levels manageable for announcements.

Metal chassis with captive-screw outputs

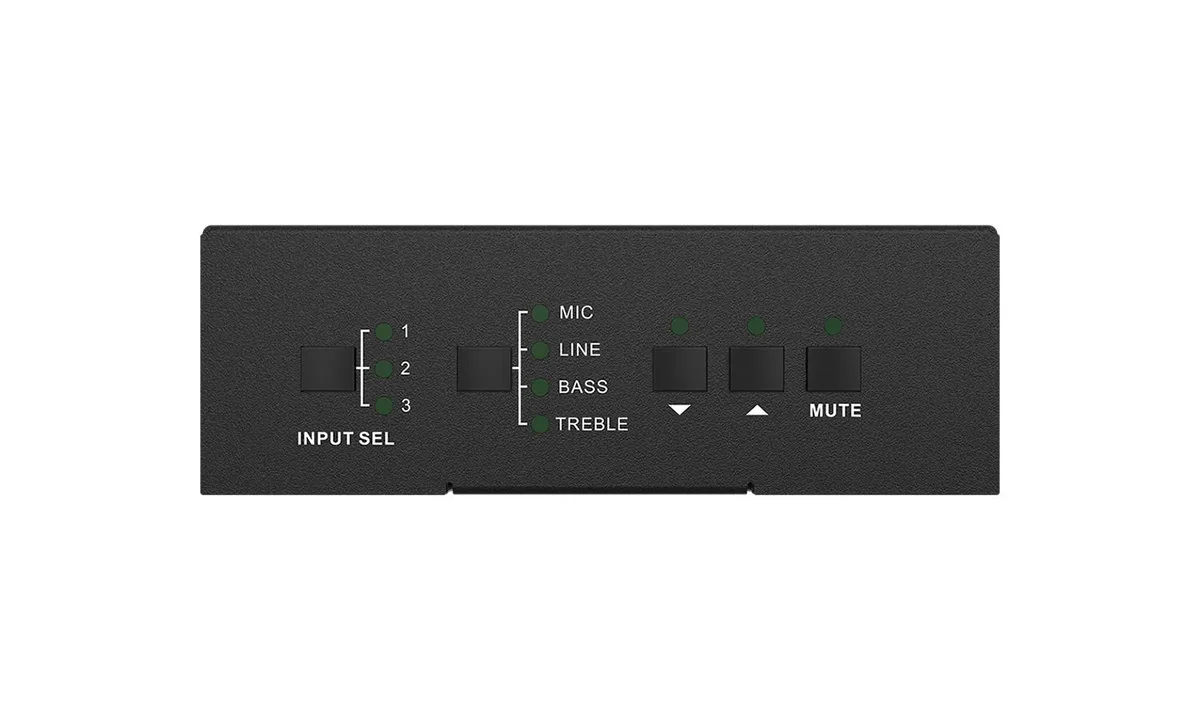

The 130 x 44 x 144 mm metal enclosure weighs 860 g and uses 3-pole 3.81 mm captive screw connectors for secure speaker wiring. Front-panel push buttons handle input selection, volume, bass and treble, while RS232, IR and 16 selectable IR ID codes allow integration into larger control systems.

Highlights

  • 40W output at 70V or 100V for distributed audio systems
  • 3-level microphone input with mixer, ducking and 48V phantom power
  • Compact 1U chassis 130mm wide fits tight rack spaces
  • Control via RS232, IR remote or front-panel push buttons
  • Metal enclosure, 860g weight, built for long-term installation

Specifications

BrandBZBGEAR
ModelBG-AMPC40
TypeAudio Splitters
Input Connector(2) RCA (1) 3.5mm Jack (1) 3-pole 3.81mm Captive Screw Connector (1) SPF Fiber Connector
Output Connector(1) 3-pole 3.81mm Captive Screw Connector
DimensionsW130 x H44 x D144mm (1U high)
Weight860g

Questions about this item

Will the BG-AMPC40 work with my existing 70V ceiling speakers and passive volume controls?

Yes — the amplifier delivers 40 Watts at either 70V or 100V, so it can drive your 70V speaker line directly without an additional transformer.

How can I confirm the amplifier is operating correctly once installed?

The front-panel LEDs show power and signal status; you can also query the unit over RS-232 for real-time volume, input and fault reports.

What cables and accessories are included, and what must I source separately?

The box contains the amplifier, IR remote, rack ears and a 3-pin 3.81 mm captive-screw plug for the speaker output; you need to supply RCA, 3.5 mm, TOSLINK or MIC cables and any 48 V phantom-powered microphone.
