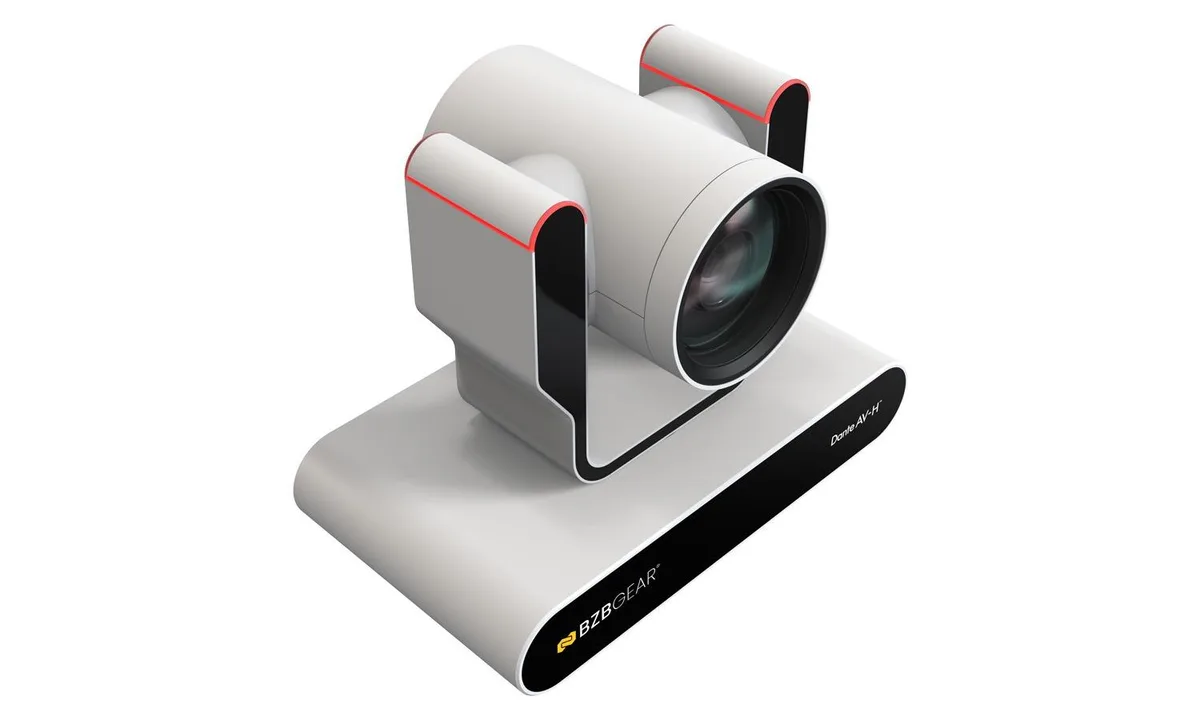

White PTZ network camera with 12x optical zoom lens and tally lights

BZBGEAR

BZBGEAR BG-ADAMO-JRDA12X-W 12x PTZ network camera White

SKU CH-M1B9-GHQJV

Full HD PTZ camera with 12x optical zoom, auto tracking, Dante AV-H streaming, tally lights, and PoE over HDMI, SDI, USB 2.0, USB 3.0, and IP

  • Bundled Camera Number1 Camera
  • Camera Type2 Megapixel
  • Network CameraYes
  • TypePTZ Camera
  • Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro
  • ColorWhite
  • 1080p60 full HD clarity from a 1/2.8-inch Sony CMOS sensor
  • 12× optical zoom covers 70.28° wide to 6.57° telephoto
  • Simultaneous HDMI, 3G-SDI, USB 2.0, USB 3.0 and IP streaming outputs
  • PoE delivers power, data and control over a single category cable
  • Integrated red and green tally lights plus dual 3.5 mm line inputs

BZBGEAR 12x PTZ network camera

The BZBGEAR BG-ADAMO-JRDA12X-W is a white PTZ network camera with a 12x optical zoom lens and a 1/2.8 inch Sony CMOS sensor. It captures up to 1080p60 over HDMI, 3G-SDI, USB 3.0, USB 2.0 and IP streaming. Integrated tally lights and a microSD slot supporting up to 1 TB recording suit live production and streaming workflows. Power over Ethernet simplifies cabling with a single category cable.

Network streaming limits and control

The camera streams using RTSP, RTMP, RTMPS, ONVIF and GB/T28181 protocols with network VISCA control. Video over USB 2.0 is limited to MJPEG at resolutions such as 1920x1080 and 1280x720. Horizontal pan spans 6.57° to 70.28° and vertical tilt spans 3.76° to 42.06°, defining the framing range. PoE delivers data, power and control but requires a compatible switch or injector.

Connectors and daily mounting implications

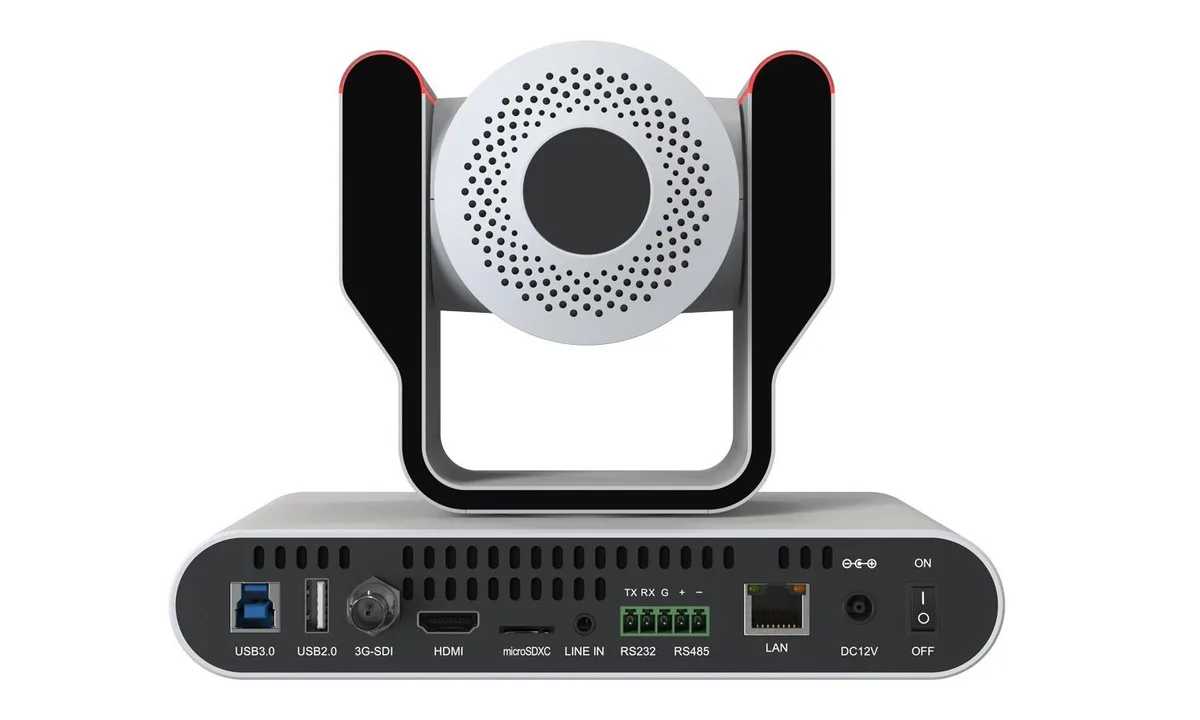

The rear panel provides HDMI, 3G-SDI, LAN with PoE, USB 3.0, USB 2.0, 3.5 mm dual-channel line input, microSD, RS-232 in and out, RS-422 compatible with RS-485, DC12V input and a power switch. This density allows direct connection to switchers, recorders, audio mixers and control systems without adapters. A standard 12 V/1.5 A supply is included for non-PoE installations. Buyers who need 4K resolution or larger zoom ranges should consider other models.

Highlights

  • 1080p60 full HD clarity from a 1/2.8-inch Sony CMOS sensor
  • 12× optical zoom covers 70.28° wide to 6.57° telephoto
  • Simultaneous HDMI, 3G-SDI, USB 2.0, USB 3.0 and IP streaming outputs
  • PoE delivers power, data and control over a single category cable
  • Integrated red and green tally lights plus dual 3.5 mm line inputs

Specifications

BrandBZBGEAR
ModelBG-ADAMO-JRDA12X-W
Part NumberBG-ADAMO-JRDA12X-W
Bundled Camera Number1 Camera
Camera Type2 Megapixel
Network CameraYes
TypePTZ Camera
Connection TypeHDMI, SDI, LAN (support POE), USB 2.0, A-IN, USB 3.0, Micro SD, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), DC12V Power Supply, Power Switch
ColorWhite
Networking ProtocolRTSP, RTMP, RTMPS, ONVIF, GB/T28181; support network VISCA control protocol
Pan/TiltHorizontal (H): 6.57°(tele) - 70.28°(wide)
Vertical (V): 3.76°(tele) - 42.06°(wide)
Sensor & Detector1/2.8 inch SONY CMOS sensor
Pixels2 MP
HD Resolution1080P
MAX Resolution1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
Video Capture ResolutionHDMI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94;
SDI:
1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/59.94
USB2.0:
MJPG: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
H264: 1920*1080 /1280*720 /1024*768 /1024*576 /800*600 /720*576 /720*480 /704*576 /640*480 /640*360 /352*288 /320*240P30;
YUY2: 800*448 /720*480P25; 640*360 /432*240P30
NV12: 800*448P25; 640*480 /640*360 /432*240P30
USB3.0:
YUY2: 1920*1080P30/25; 1280*720P60/50/30/25; 960*540 /800*600P30; 720*576P50; 720*480P60; 640*48
Optical Zoom12x Optical Zoom
AudioDual channel 3.5mm line input
Power over EthernetYes
PowerInput: AC110V-AC220V; Output: DC12V/1.5A
DimensionL" x W" x D" - 14" x 11" x 11"
Weight8 lbs

Questions about this item

Should I choose the 12x, 20x or 30x zoom version?

The 12x model gives a 70.3° wide field of view, narrowing to 6.57° at telephoto; the 20x version covers 60.04° wide, and the 30x version covers 58.1° wide — pick the narrower angle only if you need tighter shots from the same position.

What does 1080p60 actually deliver over HDMI or SDI?

The camera outputs 1920×1080 at 60, 59.94, 50, 30, 29.97 or 25 fps progressive, plus 1080i at 60, 59.94 or 50 fps, and 720p at the same frame rates — matching common broadcast and streaming standards.

How far can I run the single Ethernet cable with PoE?

PoE carries data, power and control over one category cable; practical distance follows normal Ethernet limits for the cable category you install.
